Manual Transaxle [Shift Mechanism]
›
Shift Mechanism Removal/Installation [G35M-R, A65M-R]
›
A65M-R manual transaxle models
A65M-R manual transaxle models

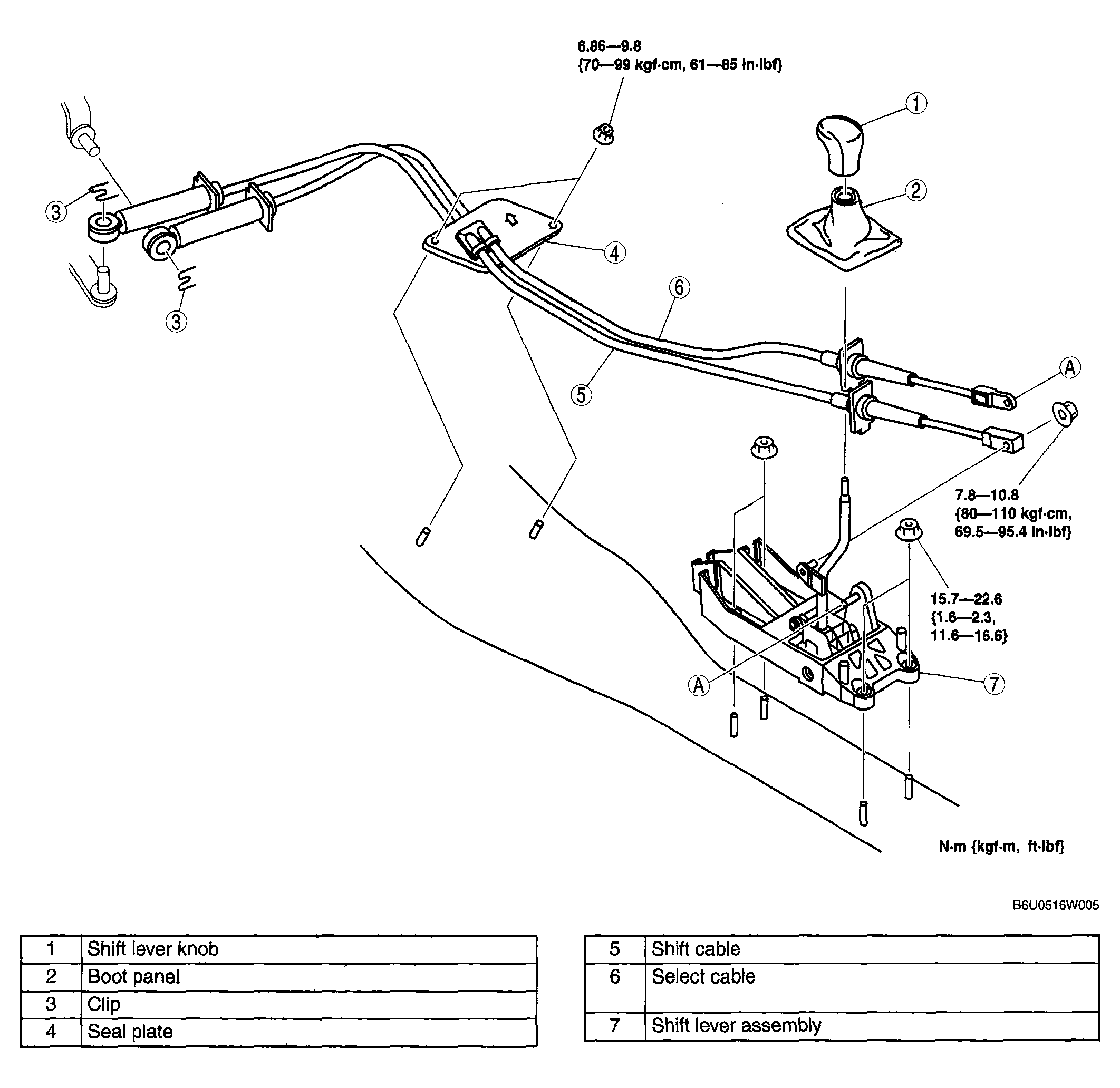

Fig 1: Removal/Installation Of Shift Mechanism & Torque Specification (A65M-R)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
