Except for California Emission Regulation Applicable ATX Model

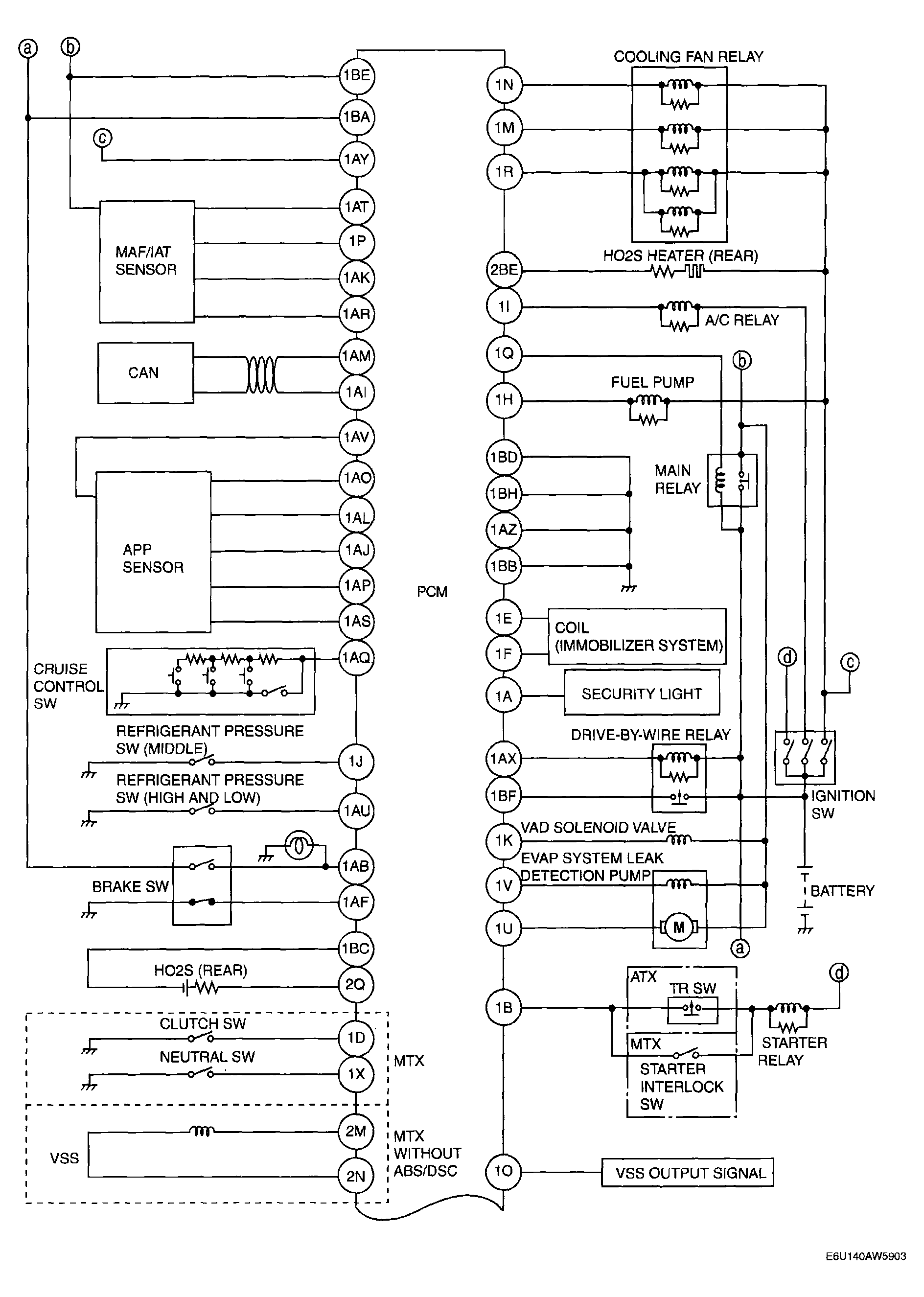

Fig 1: Except California Emission Regulation Applicable ATX Model - Control System Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

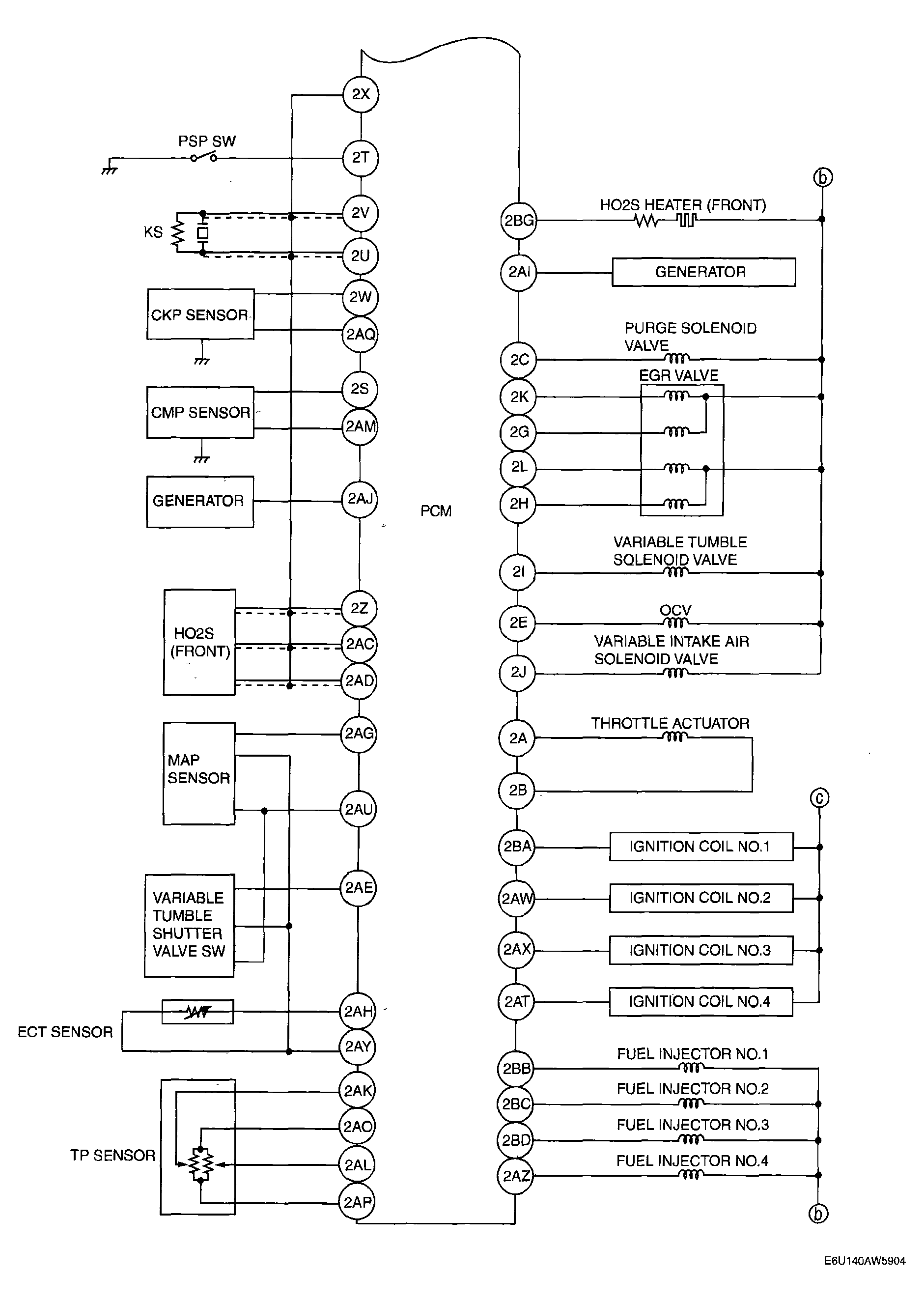

Fig 2: Except California Emission Regulation Applicable ATX Model - Control System Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
