On-Board Diagnostic [Engine Control System L3)
›
Monitoring System And Control System Device Relationship Chart
›
California Emission Regulation Applicable ATX Model
California Emission Regulation Applicable ATX Model

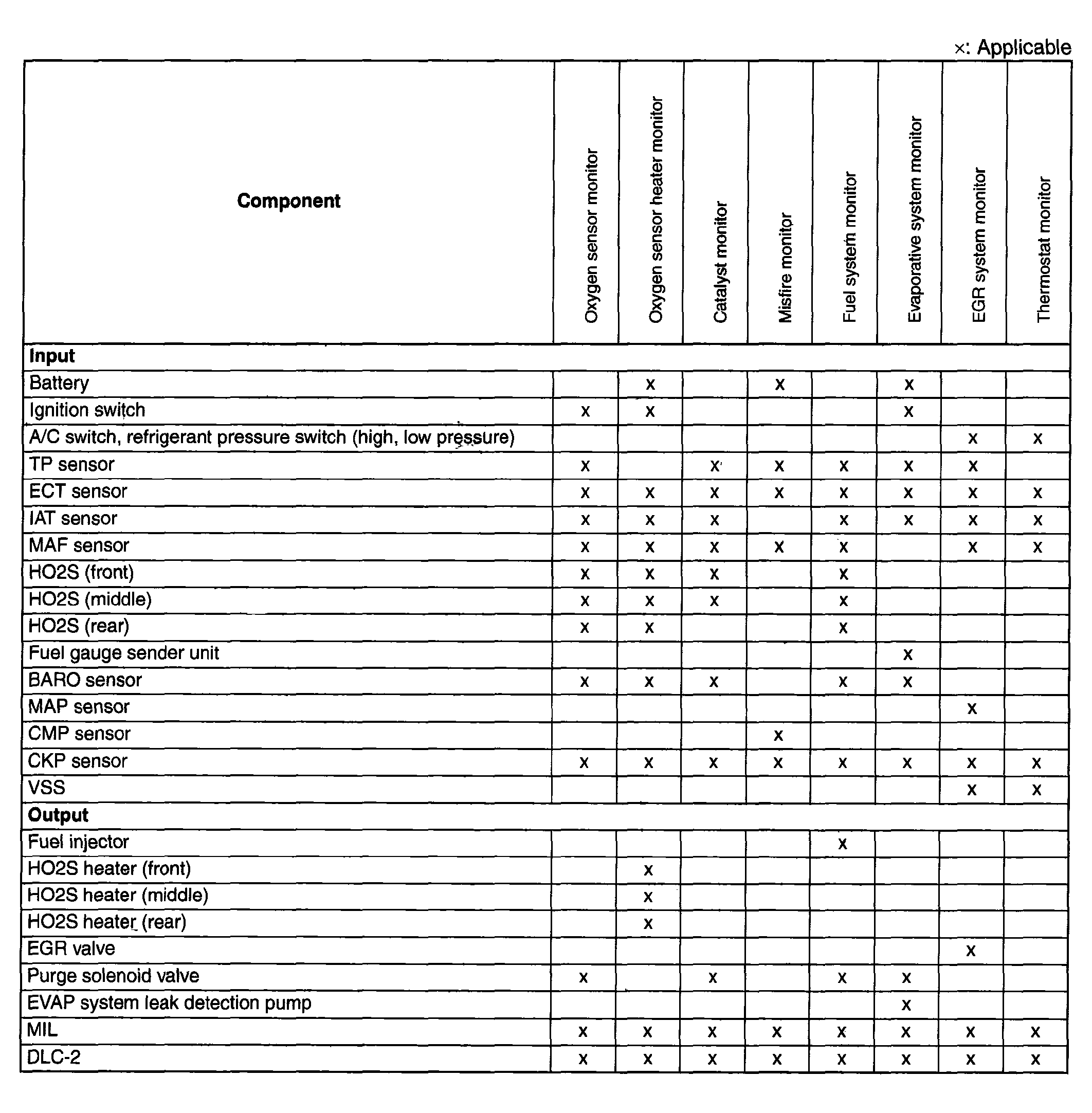

Fig 1: California Emission Regulation Applicable ATX Model - Monitoring System And Control System Device Relationship Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
