Selector Lever Component Inspection

Disconnect the negative battery cable.
Remove the center console.
Remove the dashboard completely. (See DASHBOARD REMOVAL/INSTALLATION ).
Disconnect the selector lever component connector.
Inspect for continuity at the selector lever component.
- If there is any malfunction, adjust the selector cable. (See SELECTOR CABLE ADJUSTMENT ).

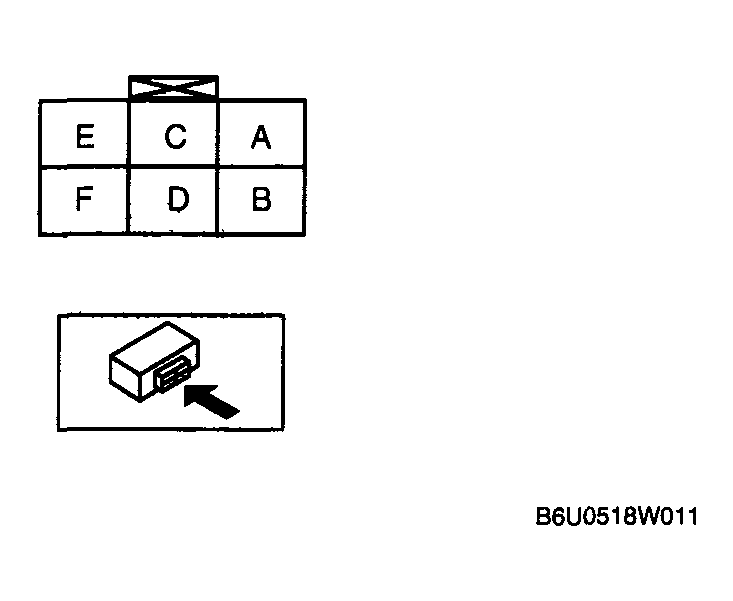

  Fig 1: Identifying Selector Lever Connector Terminals
  Courtesy of MAZDA MOTORS CORP.

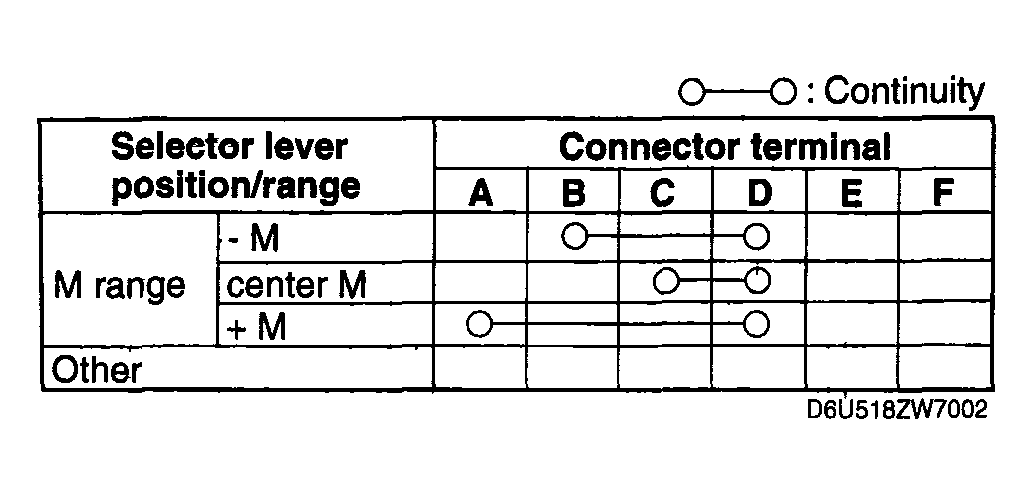

  Fig 2: Checking Selector Lever Continuity
  Courtesy of MAZDA MOTORS CORP.
