On-Board Diagnostic [Engine Control System AJ]
›
Control System Wiring Diagram
Control System Wiring Diagram

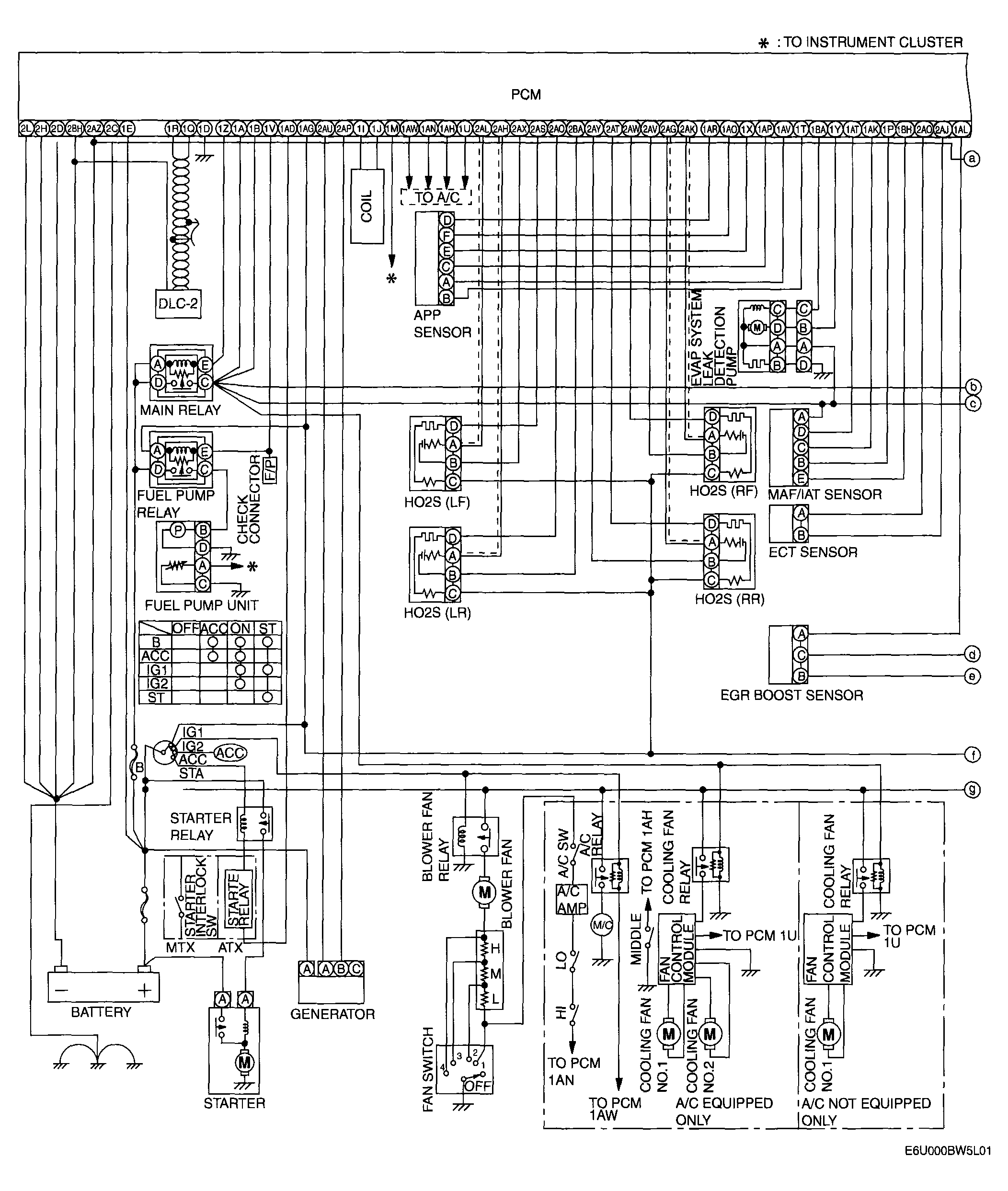

Fig 1: Engine Control System - Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

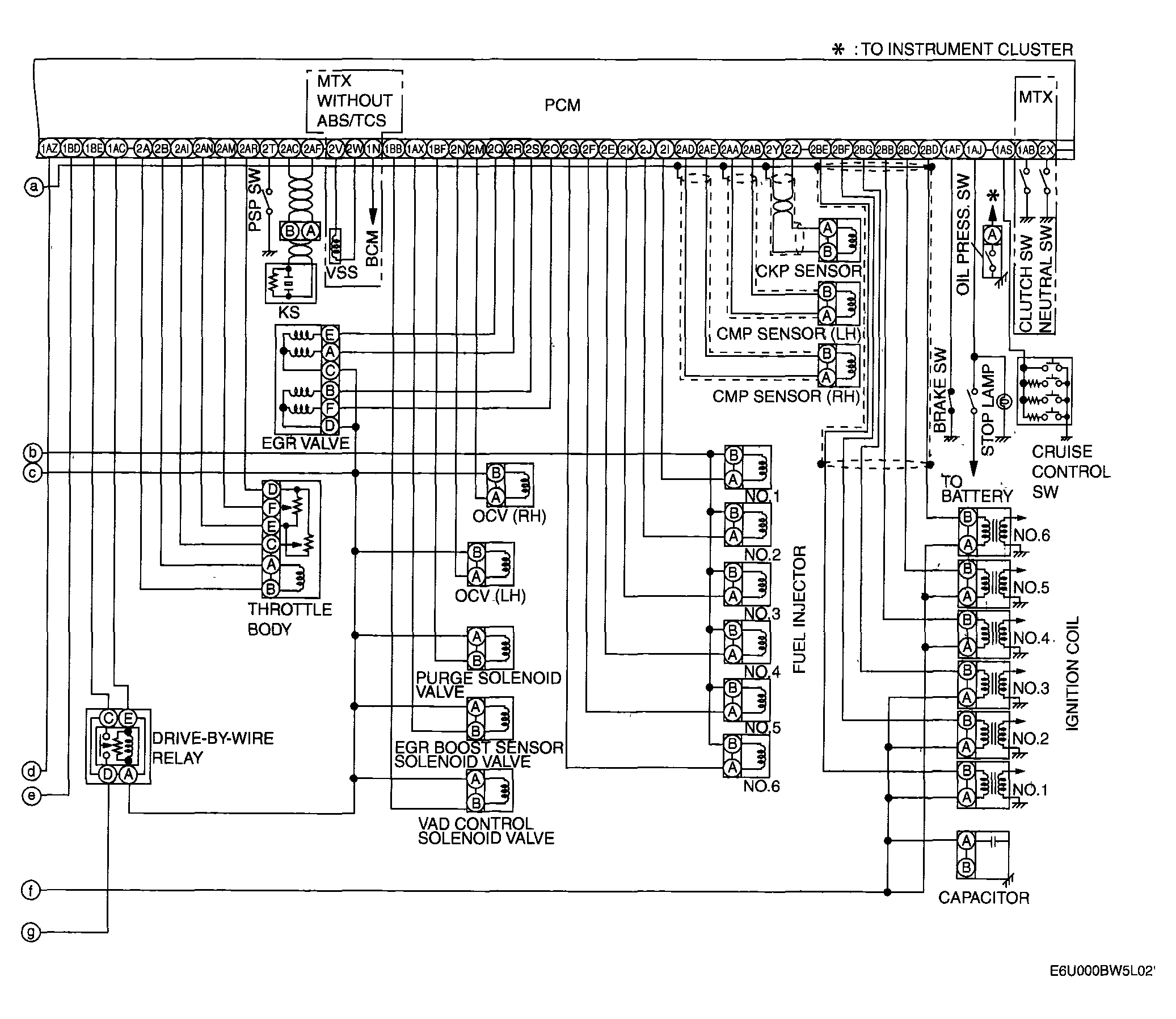

Fig 2: Engine Control System - Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
