Symptom Troubleshooting Chart - Starting System
›
Connector End Views - Starting System
Connector End Views - Starting System

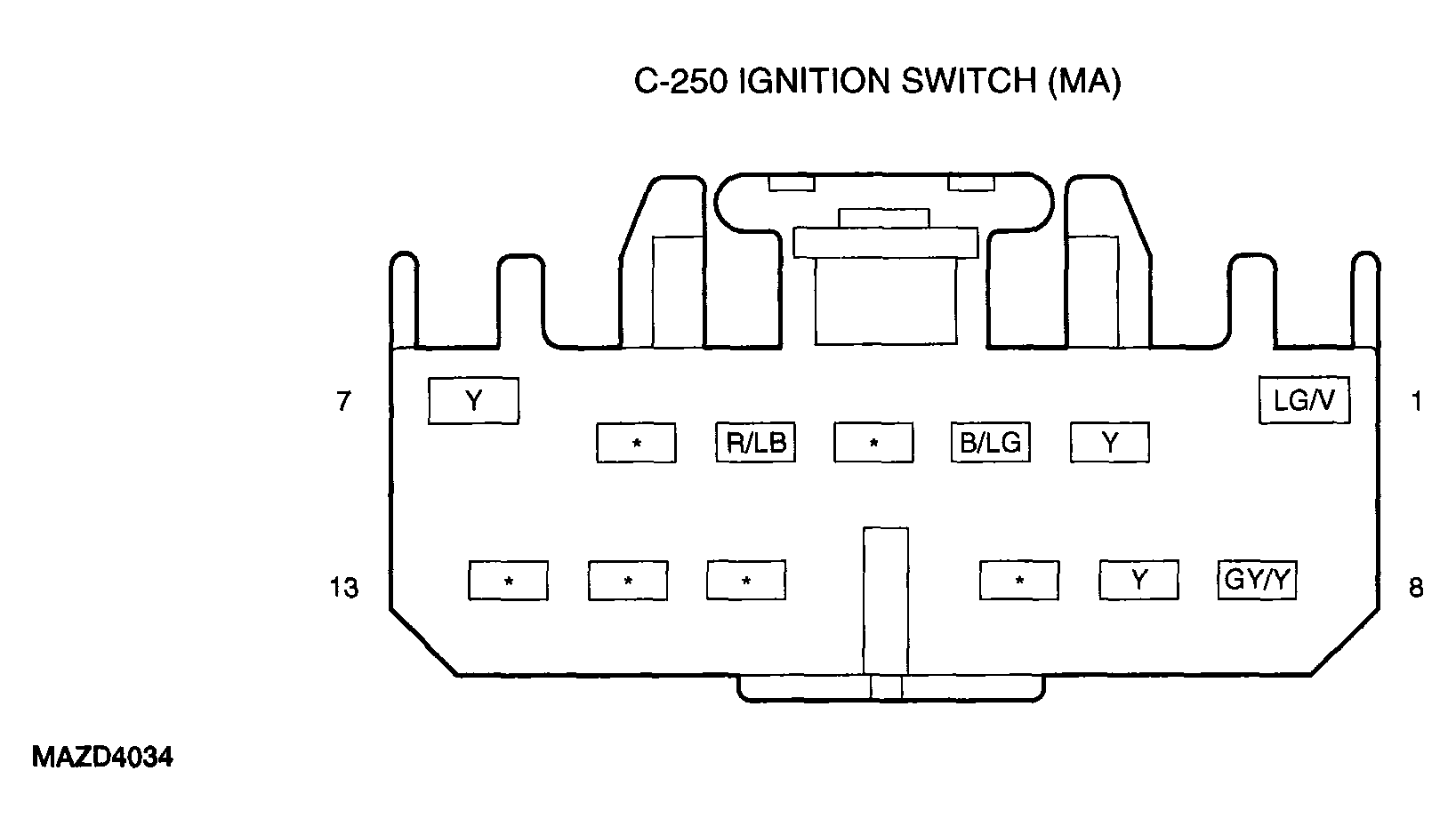

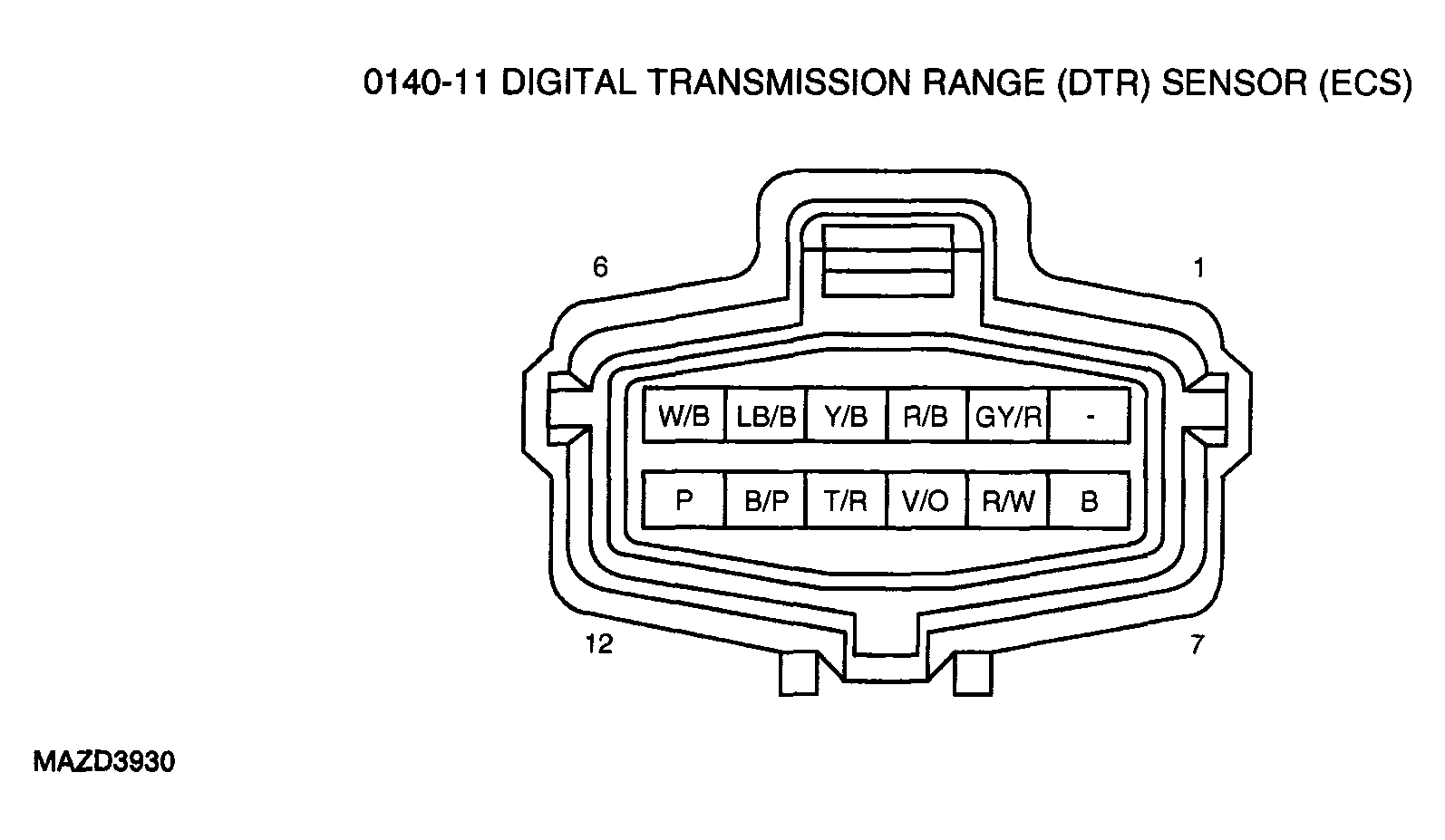

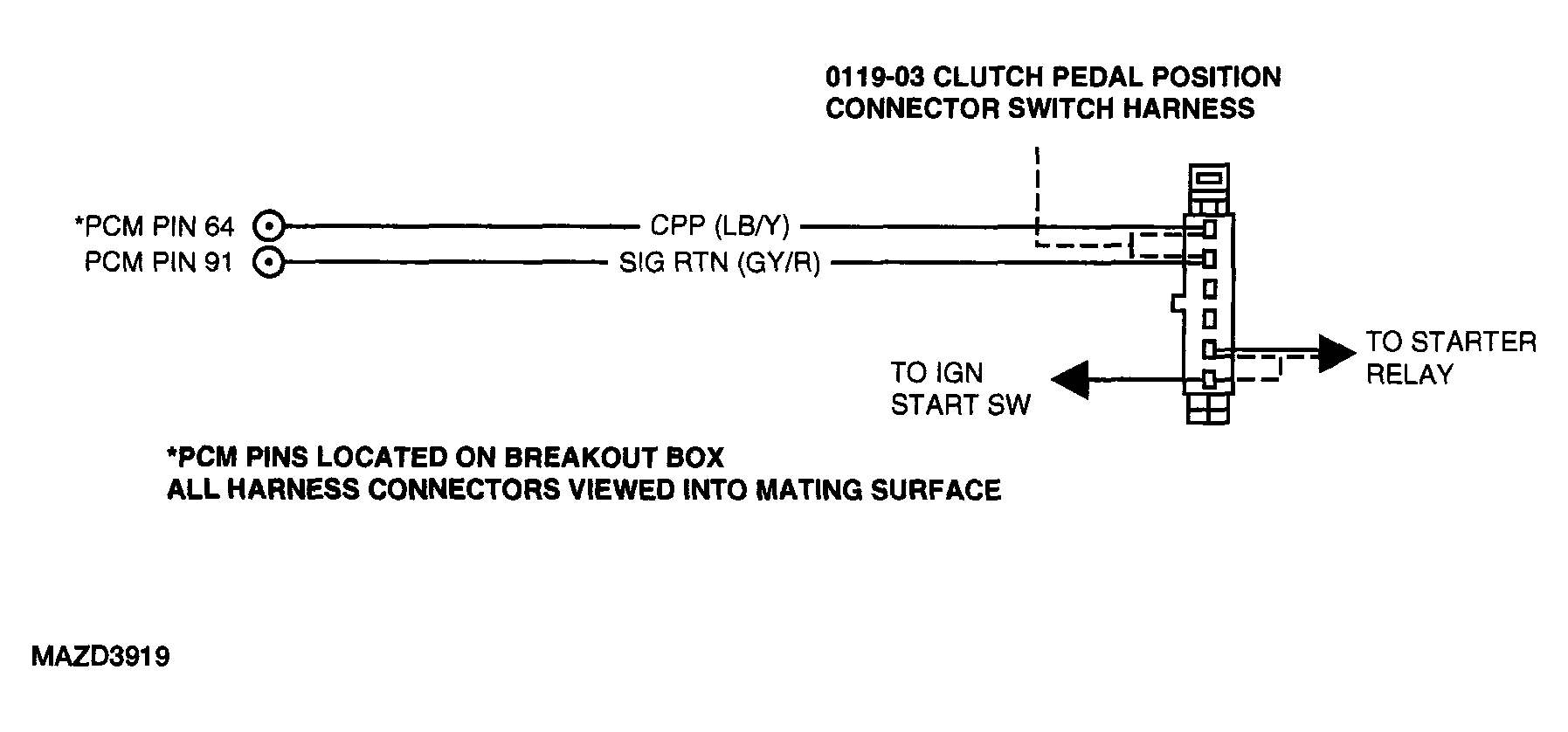

STARTING SYSTEM CONNECTOR END VIEWS
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
