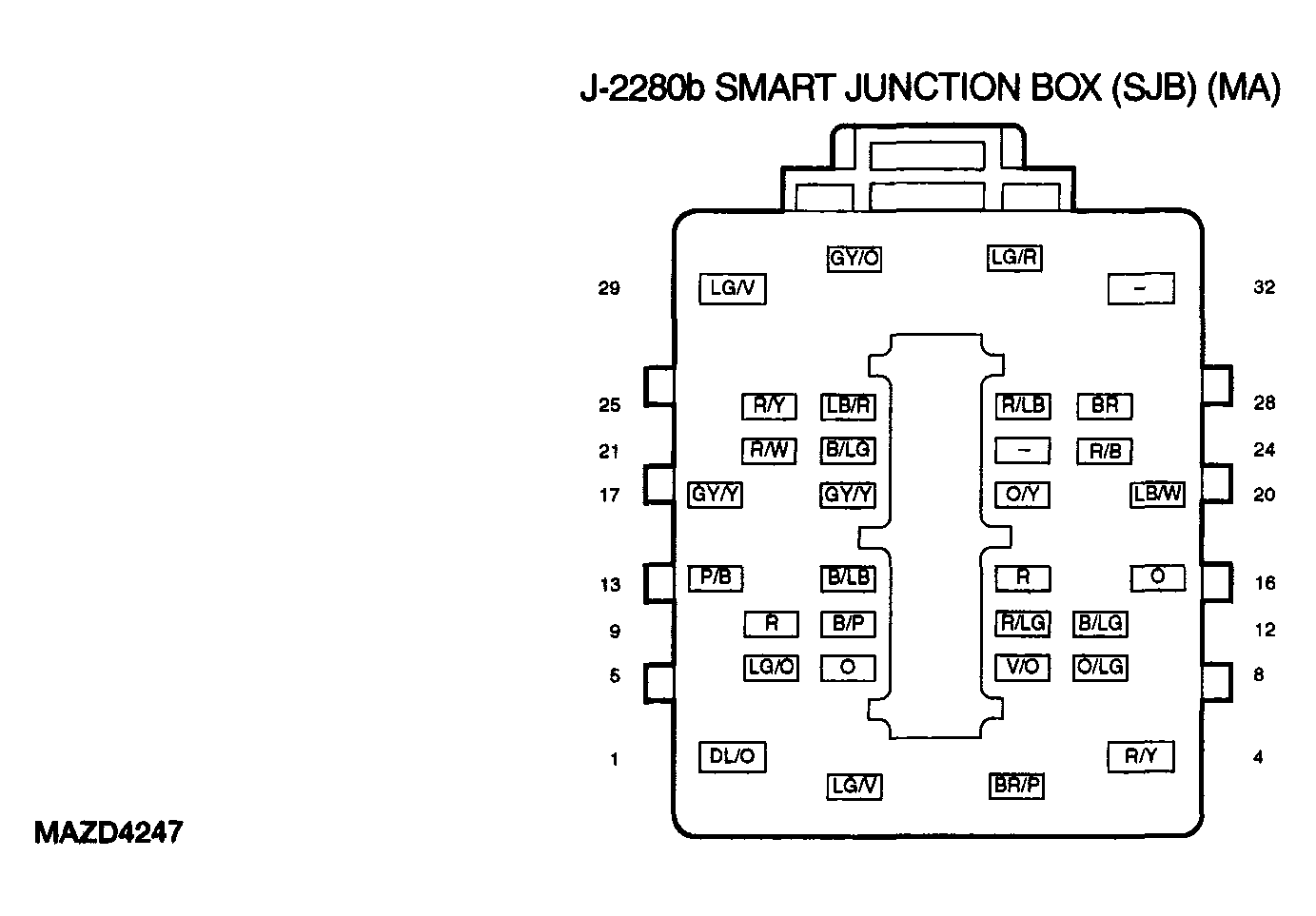

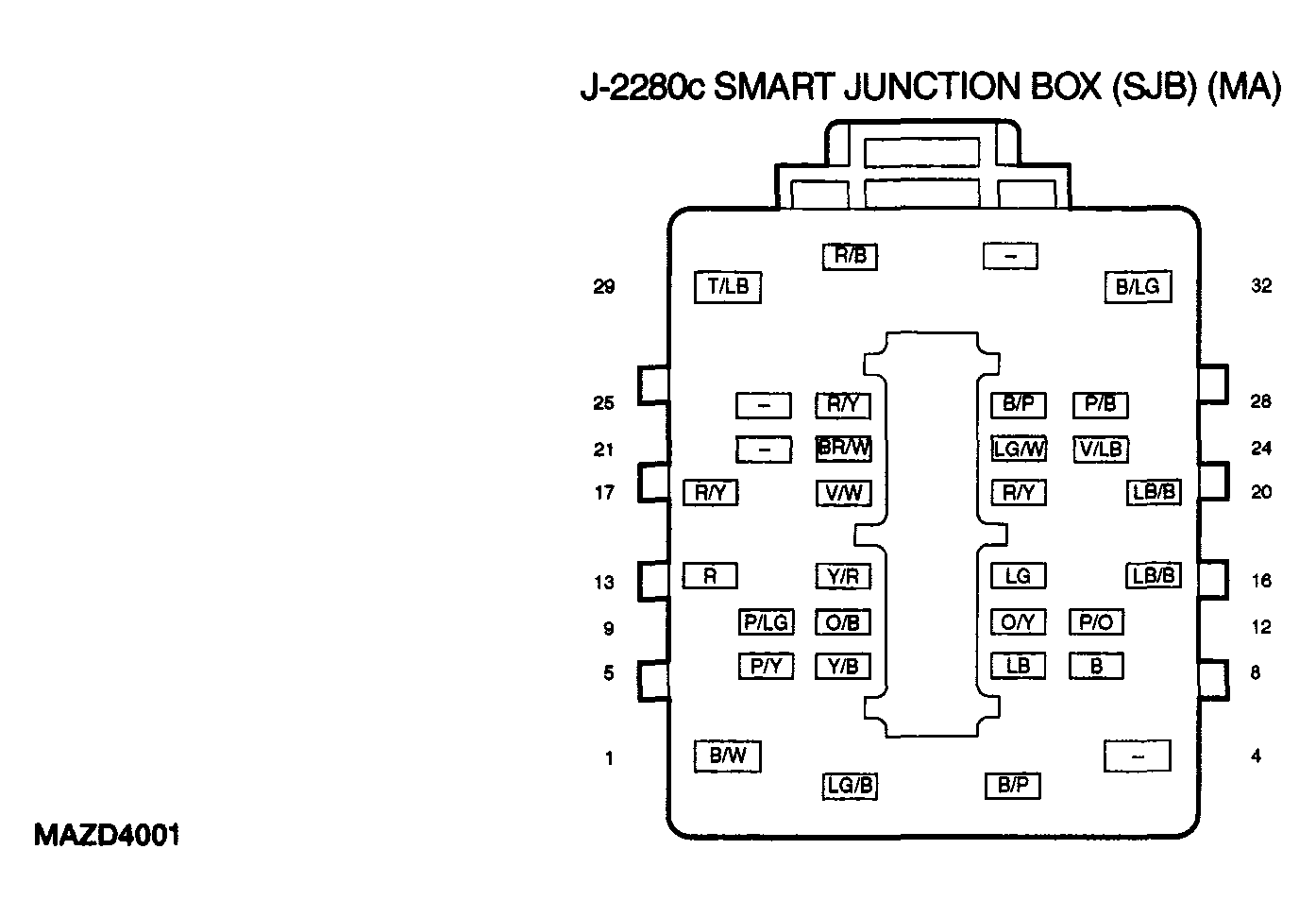

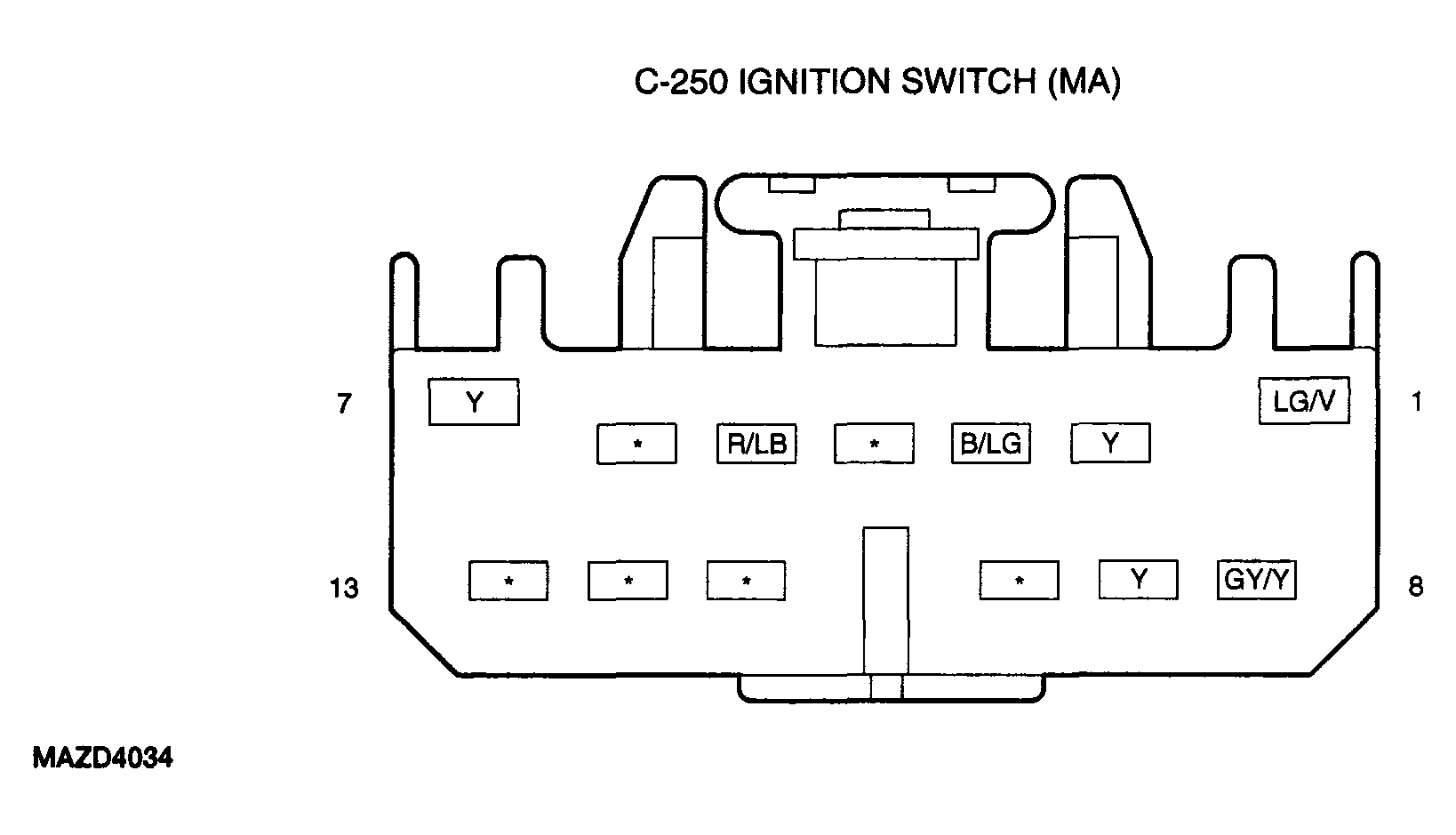

Connector End Views - Power System
Connector End Views - Power System
POWER SYSTEM PINPOINT TEST REFERENCE
