Connector End Views - Power Windows

POWER WINDOWS CONNECTOR END VIEWS

G04310020

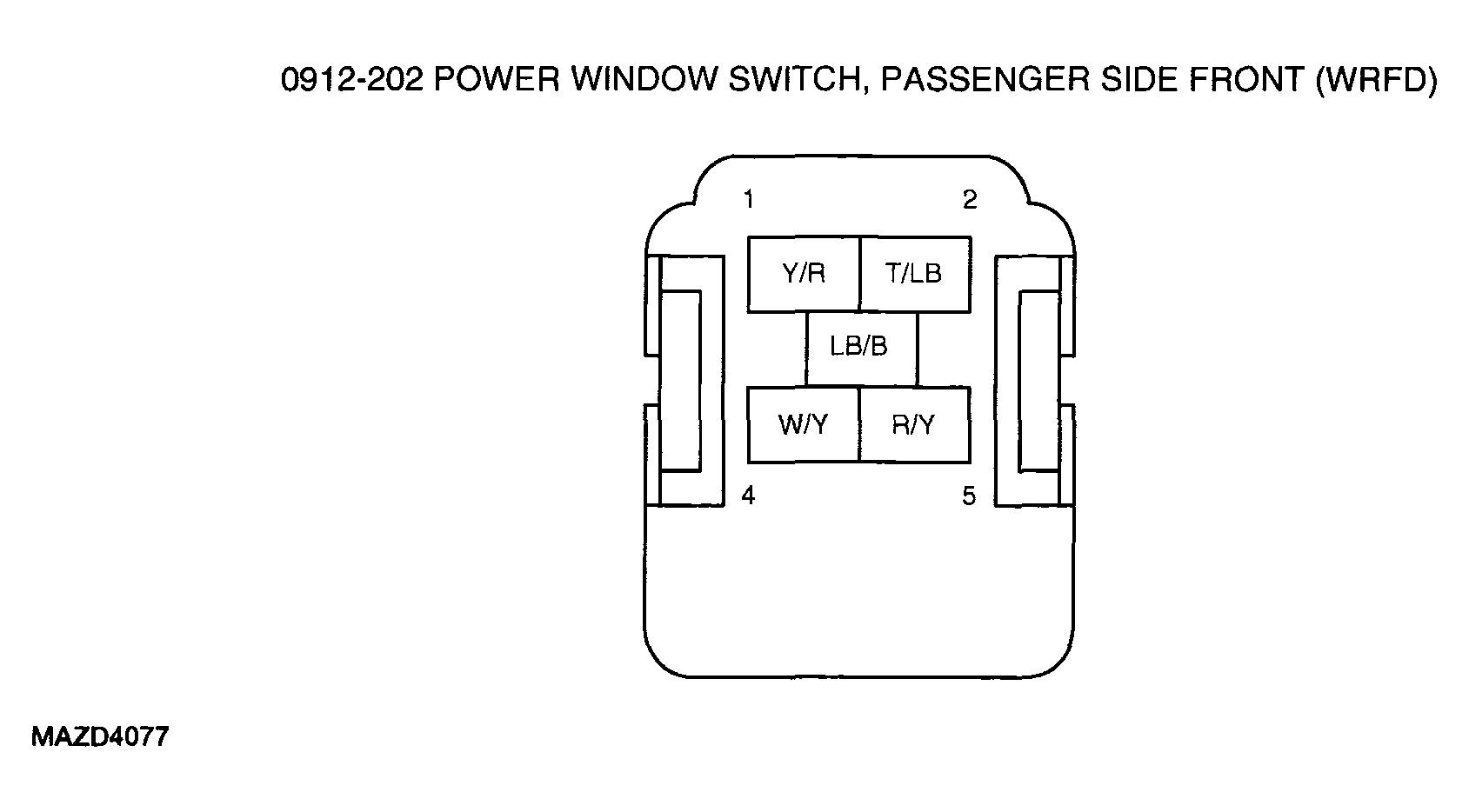

G04310021

G04310022

G04310023

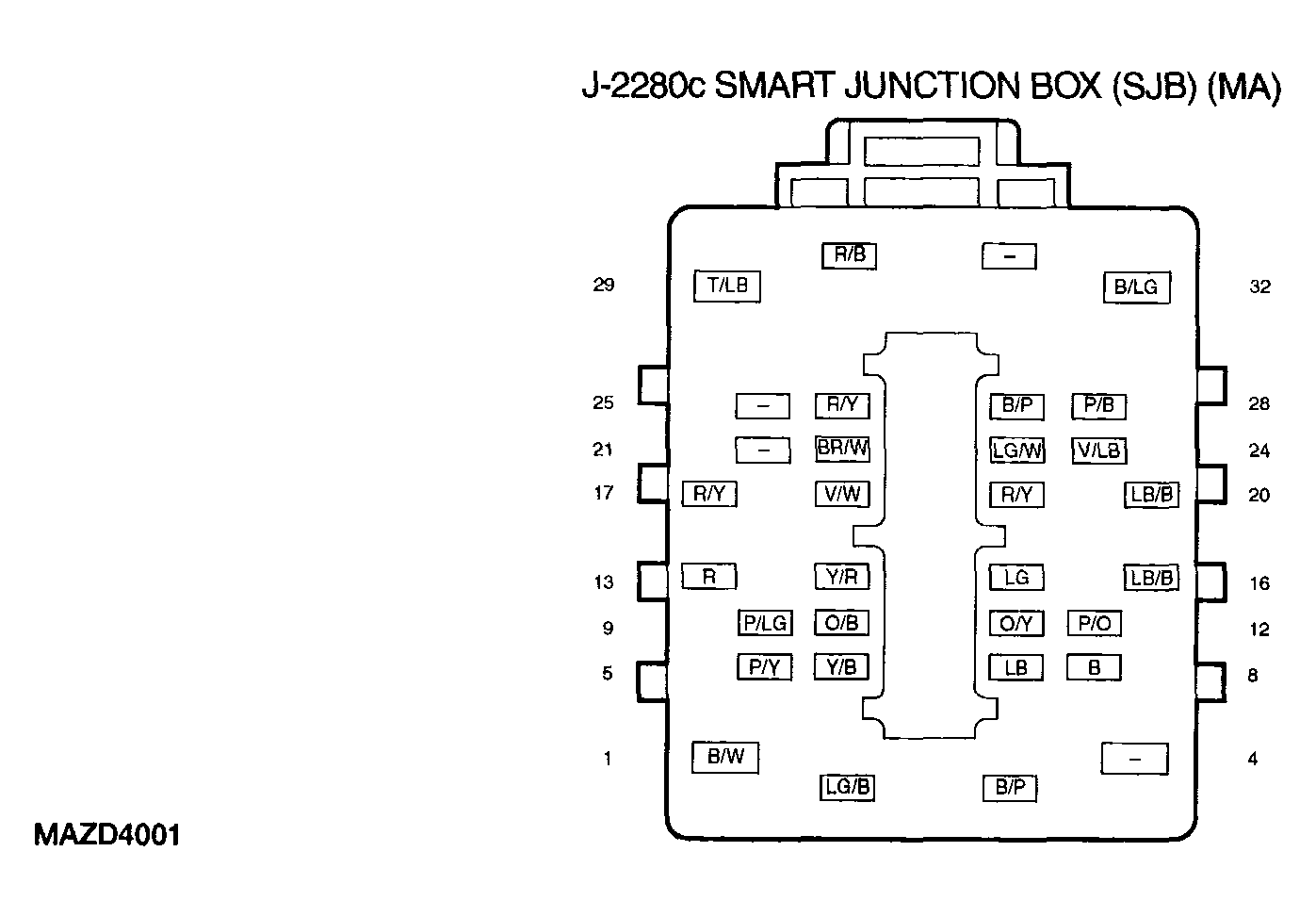

G04310024

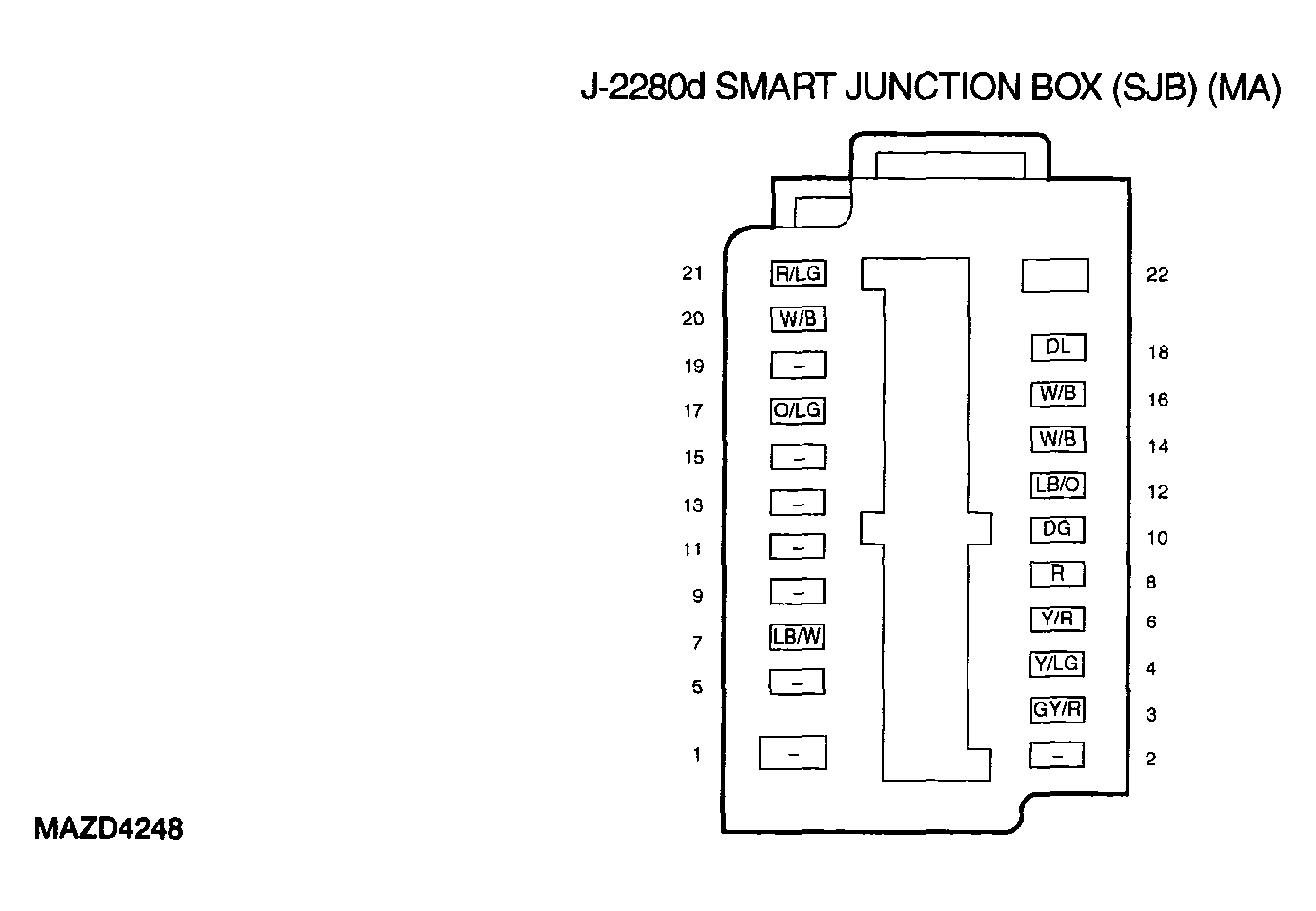

G04310025
