Removal and Installation

  1. Remove the instrument cluster. See INSTRUMENT CLUSTER  .

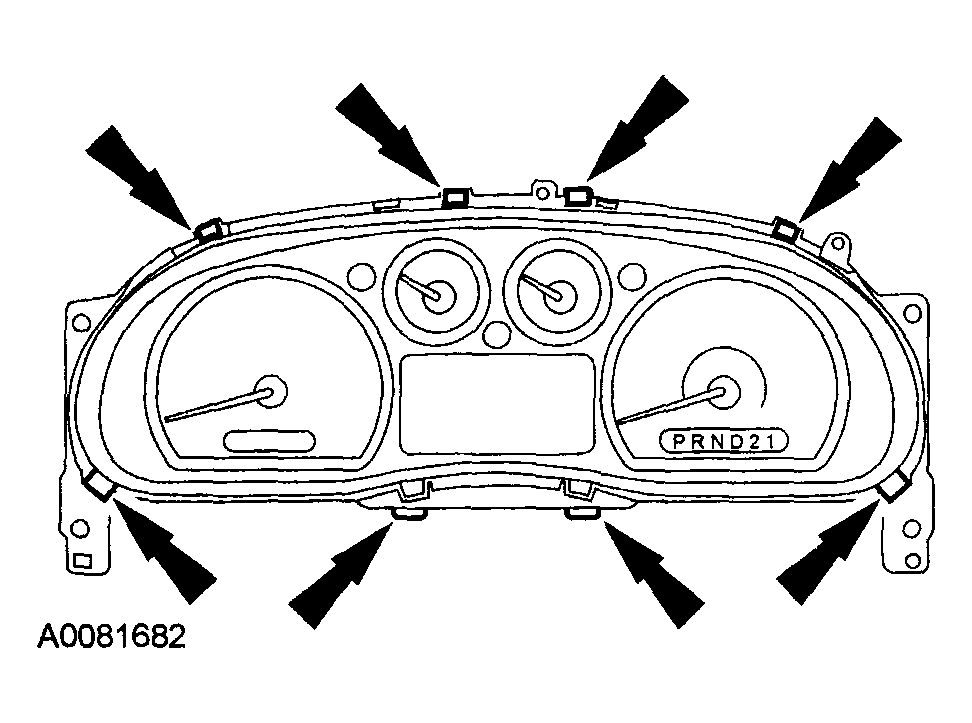

    Fig 1: Locating Instrument Cluster Lens
    G04310575Courtesy of MAZDA MOTORS CORP.
  2. Unclip the lens from the instrument cluster.
  3. To install, reverse the removal procedure.
