Removal and Installation

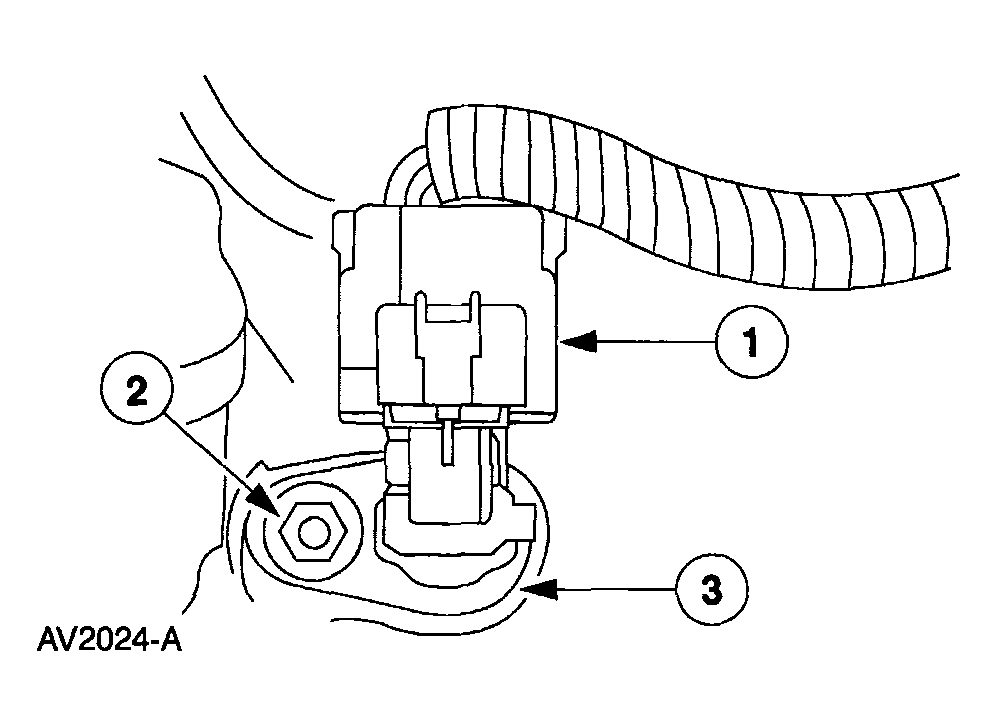

Fig 1: Removing Camshaft Position (CMP) Sensor

Courtesy of MAZDA MOTORS CORP.

1. Remove the camshaft position (CMP) sensor.
   1. Disconnect the electrical connector.
   2. Remove the bolt.
   3. Remove the sensor.

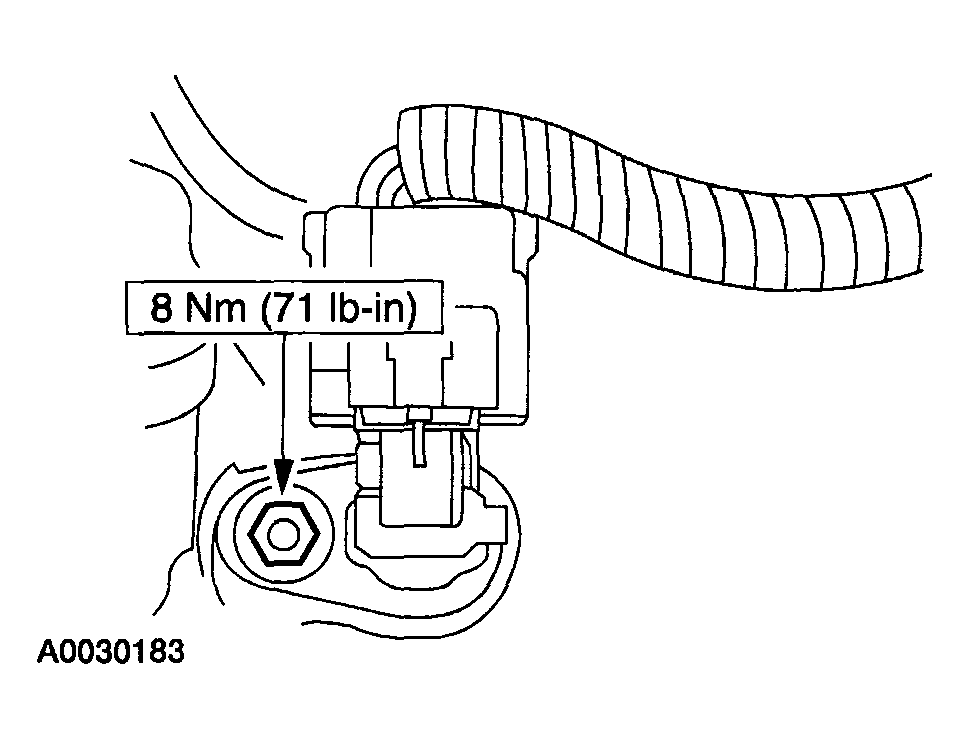

   Fig 2: Installing Camshaft Position Sensor

   Courtesy of MAZDA MOTORS CORP.
2. To install, reverse the removal procedure.
