Idle Air Control (IAC) Valve Removal / Installation - 3.0L

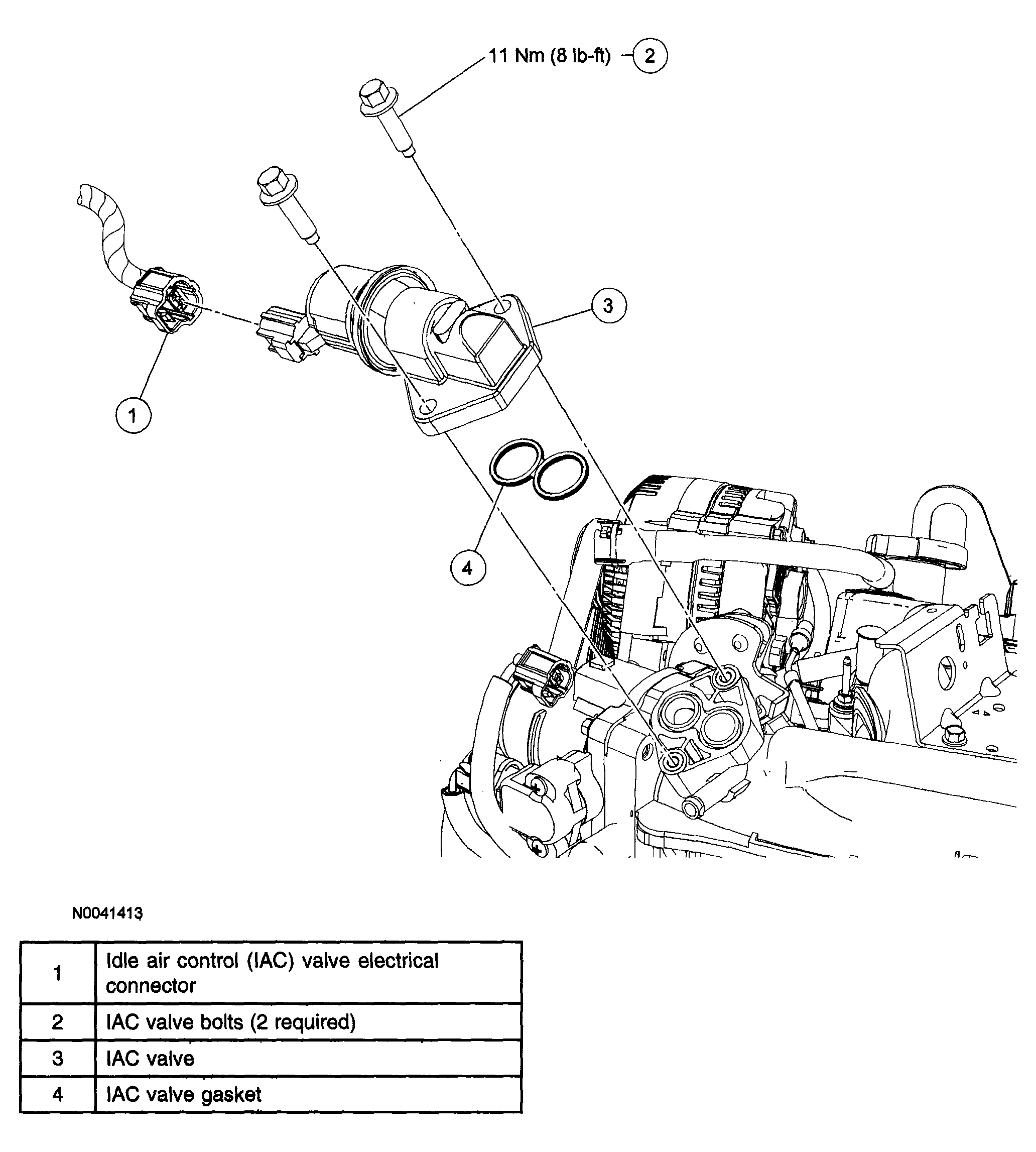

Fig 1: Removing /Installing Idle Air Control (IAC) Valve

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. See BATTERY DISCONNECT .
2. Disconnect the idle air control (IAC) valve electrical connector.

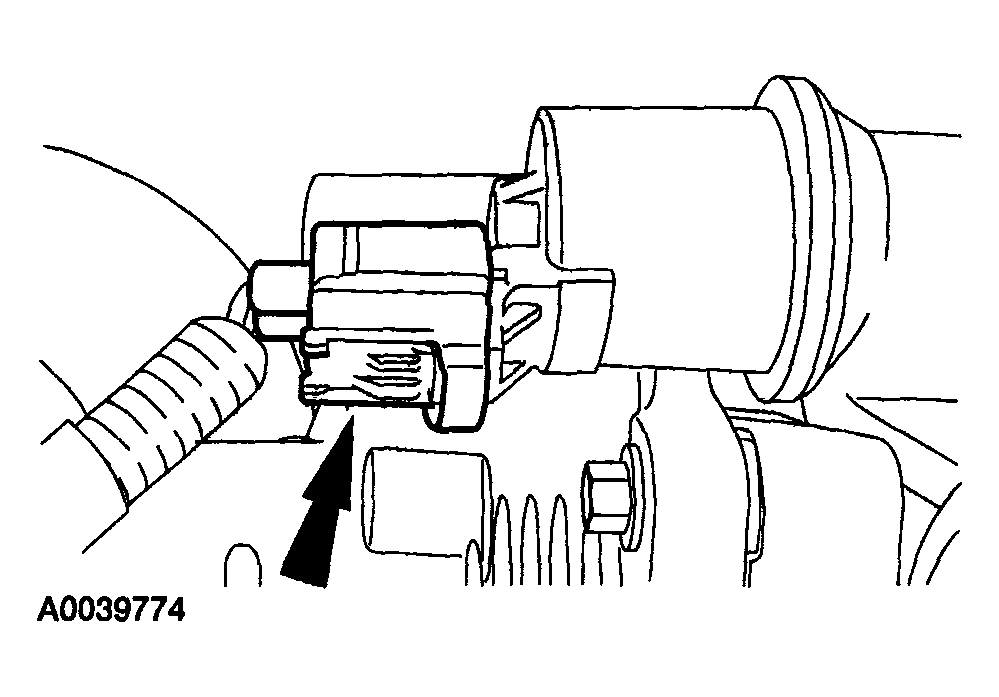

   Fig 2: Disconnecting Idle Air Control (IAC) Valve Electrical Connector

   Courtesy of MAZDA MOTORS CORP.
3. Remove the IAC valve and discard the gasket.

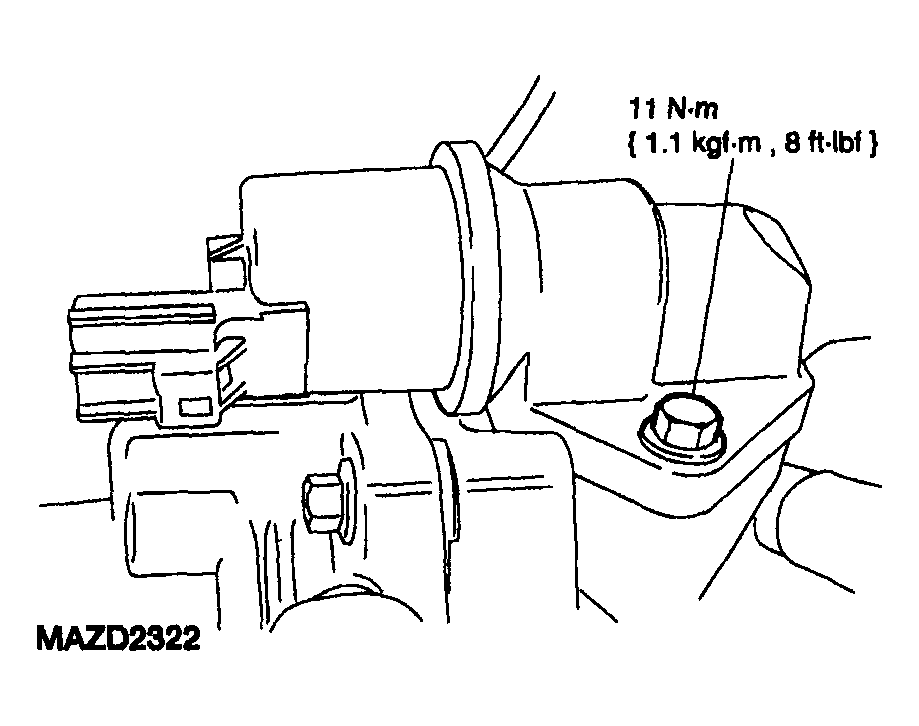

   Fig 3: Idle Air Control (IAC) Valve With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • Install a new IAC valve gasket.
4. To install, reverse the removal procedure.
