Shift Cable And Bracket Adjustment

1. Place the gearshift lever in the D position and hang a 1.4 kg (3 Ib) weight on the shift control selector lever.
1. Move the selector lever to the first gear position, then move back two detents to the D position.
2. Hang the 3.6 kg (8 Ib) weight on the gearshift lever.
Raise and support the vehicle. See LIFTING .
Disconnect the transmission shift cable from the manual control lever.

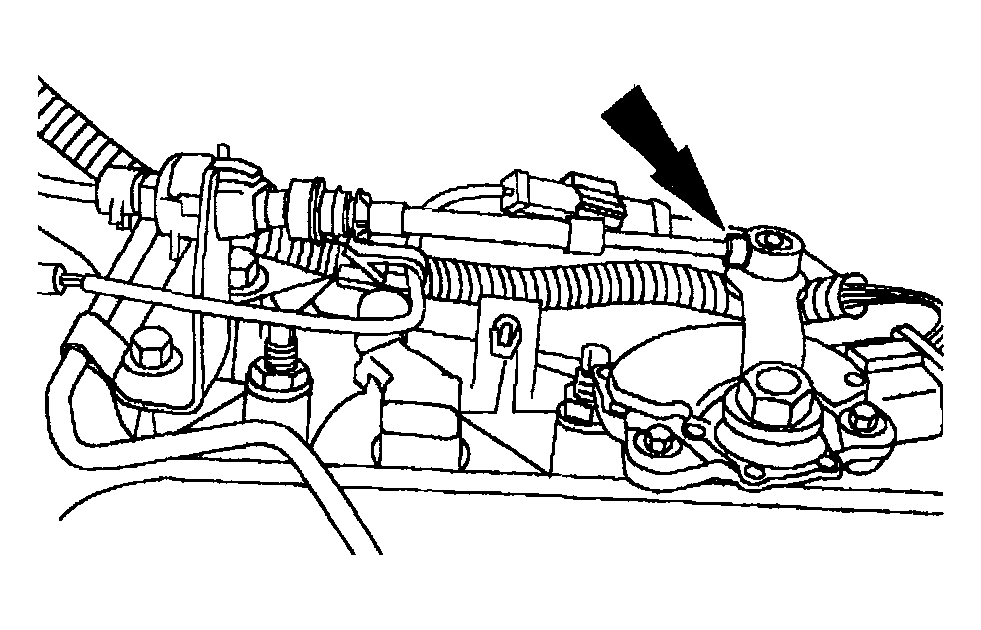

Fig 1: Disconnecting Transmission Shift Cable
Courtesy of MAZDA MOTORS CORP.
Pull out the transmission shift cable adjustment lock tab on the shift cable body.

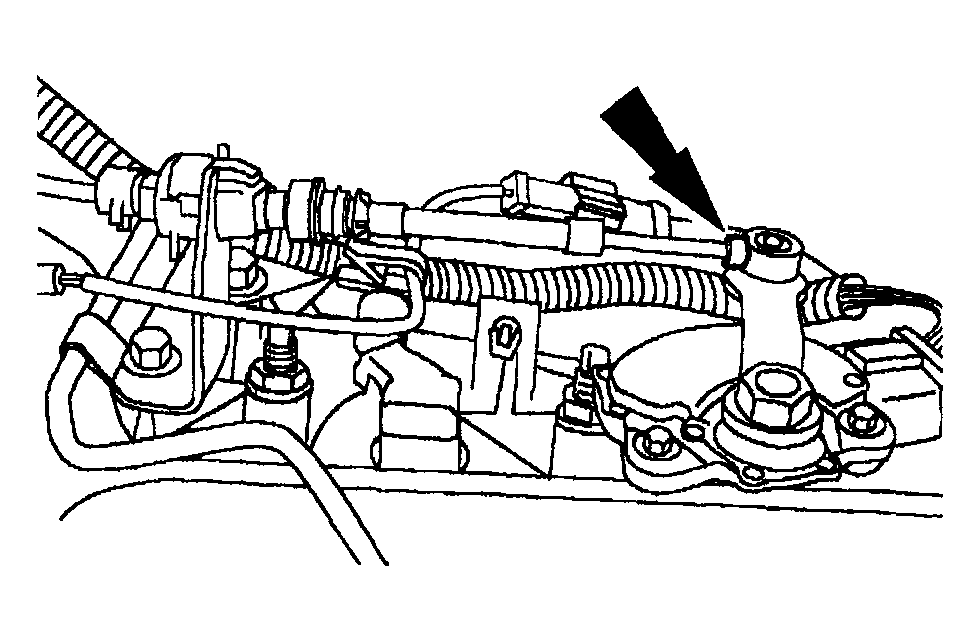

Fig 2: Pulling Out Transmission Shift Cable
Courtesy of MAZDA MOTORS CORP.
Place the manual control lever in the D position.
1. Rotate the manual control lever fully counterclockwise.
2. Rotate the manual control lever clockwise to the D position (2 detents).

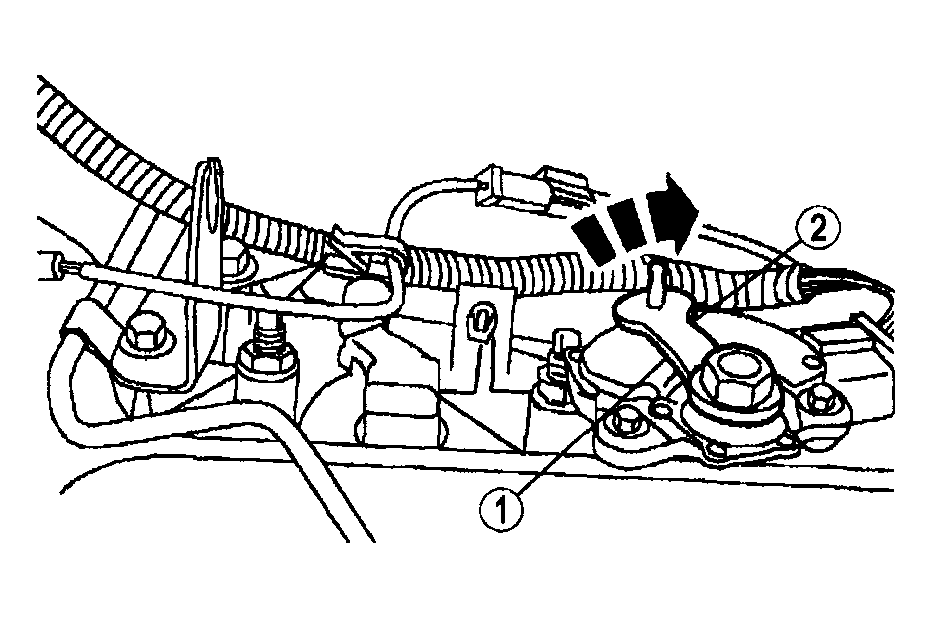

Fig 3: Rotating Manual Control Lever
Courtesy of MAZDA MOTORS CORP.
Connect the transmission shift cable to the manual control lever.

Fig 4: Connecting Transmission Shift Cable To Manual Control Lever
Courtesy of MAZDA MOTORS CORP.
7. Push in the transmission shift cable adjustment lock tab on the shift cable body.

Fig 5: Pushing Transmission Shift Cable Adjustment Lock Tab
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle.
Remove the 1.4 kg (3 Ib) weight.
CAUTION:
- To prevent damage, do not adjust the transmission shift cable in any position other than D.
Verify that the vehicle starts in P or N and that backup lamps illuminate in R. If not, repeat steps 1 through 7 and perform a digital transmission range sensor adjustment. See DIGITAL TRANSMISSION RANGE SENSOR REMOVAL / INSTALLATION .
