Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

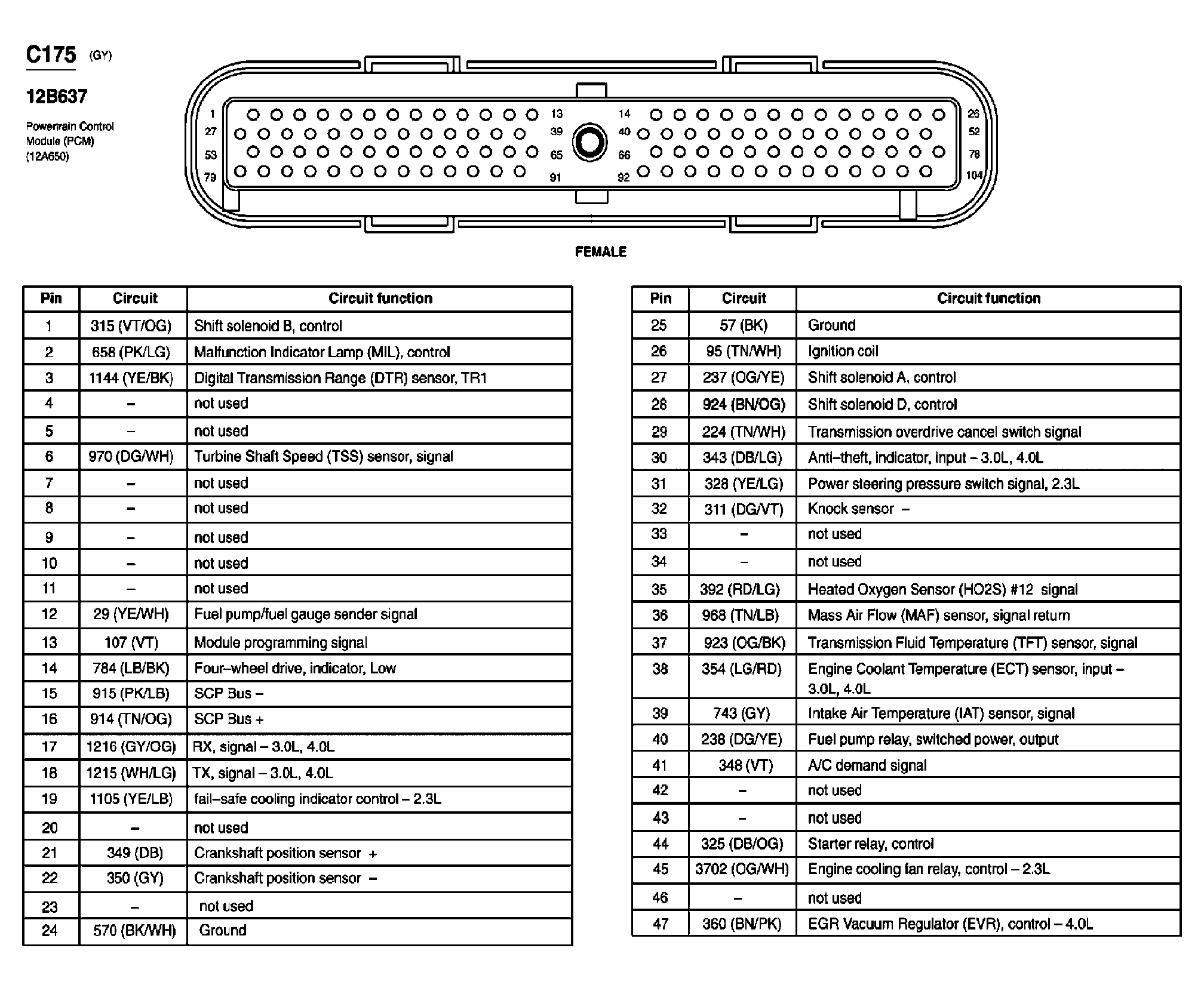

Fig 1: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)
G04598808Courtesy of FORD MOTOR CO.
