POWER STEERING FLUID RESERVOIR - Clll PUMP: Notes

2.3L Engine

Fig 1: Removing/Installing Power Steering Fluid Reservoir Clll Pump (2.3L Engine) With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

4.0L Engine

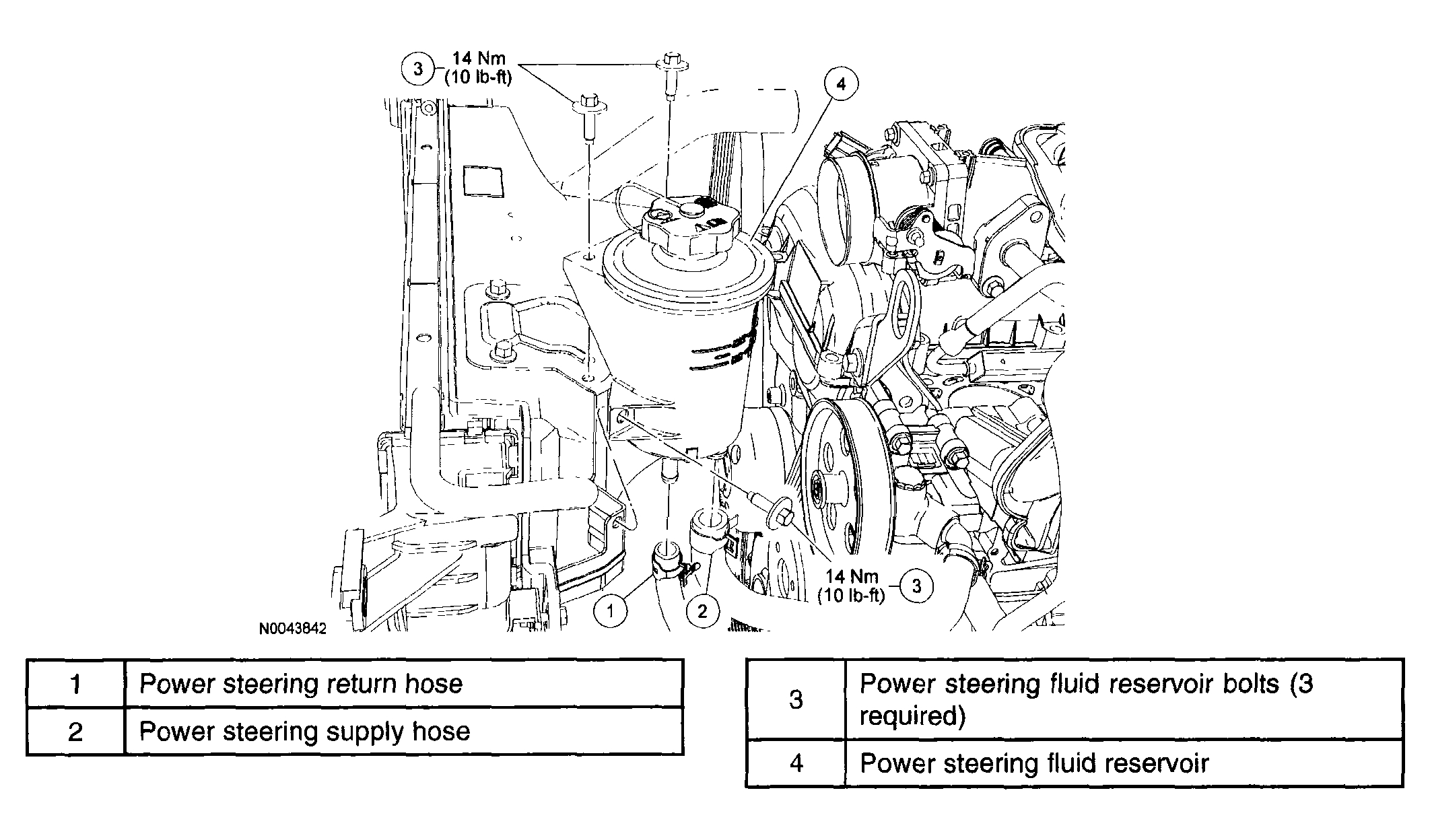

Fig 2: Removing/Installing Power Steering Fluid Reservoir Clll Pump (4.0L Engine) With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
