Steering Column Components

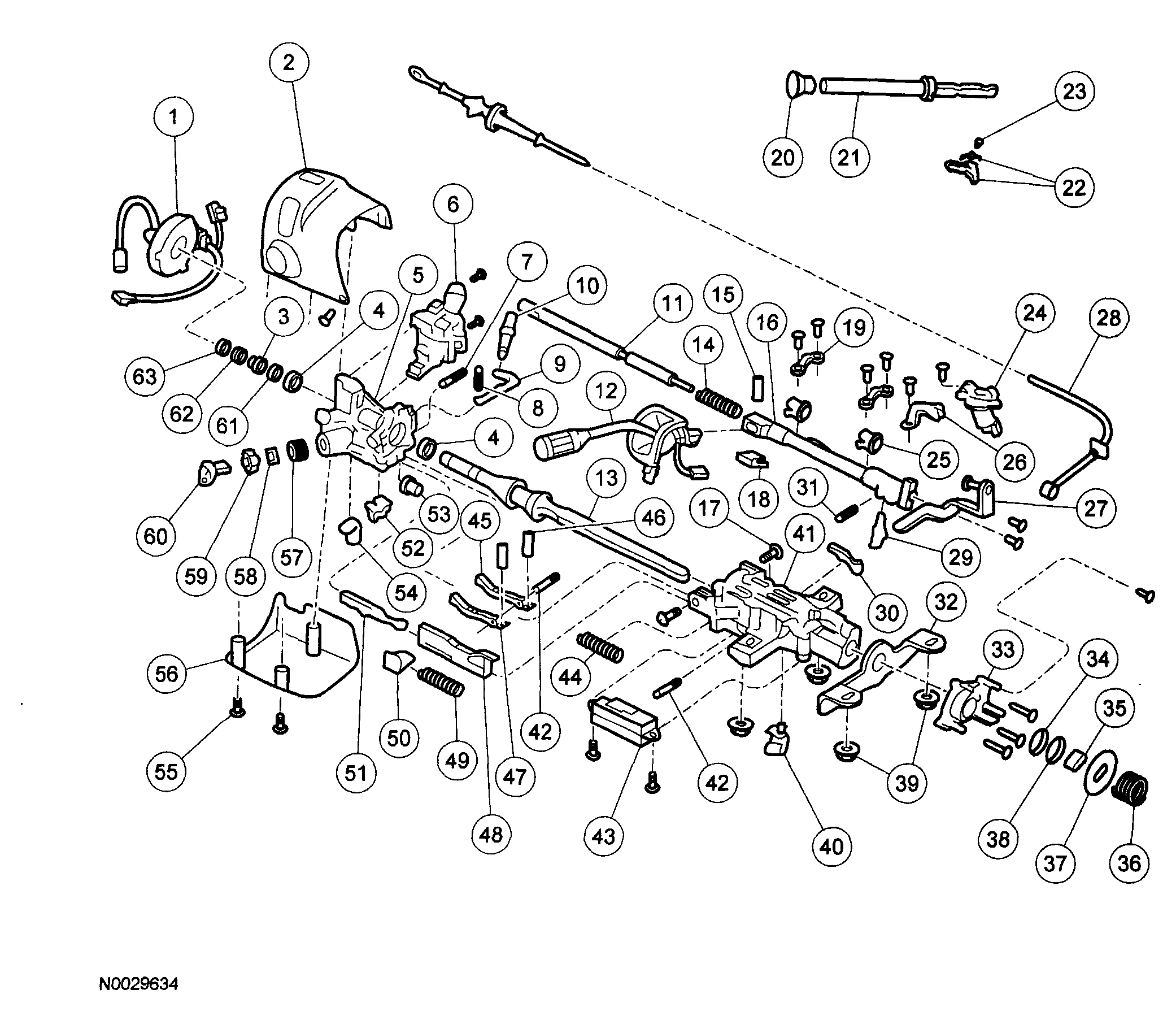

Fig 1: Exploded View Of Steering Column - Manual Transmission (1 Of 2)
G04309586Courtesy of MAZDA MOTORS CORP.
Fig 2: Exploded View Of Steering Column - Manual Transmission (2 Of 2)
G04309587Courtesy of MAZDA MOTORS CORP.
