Lower Intermediate Shaft

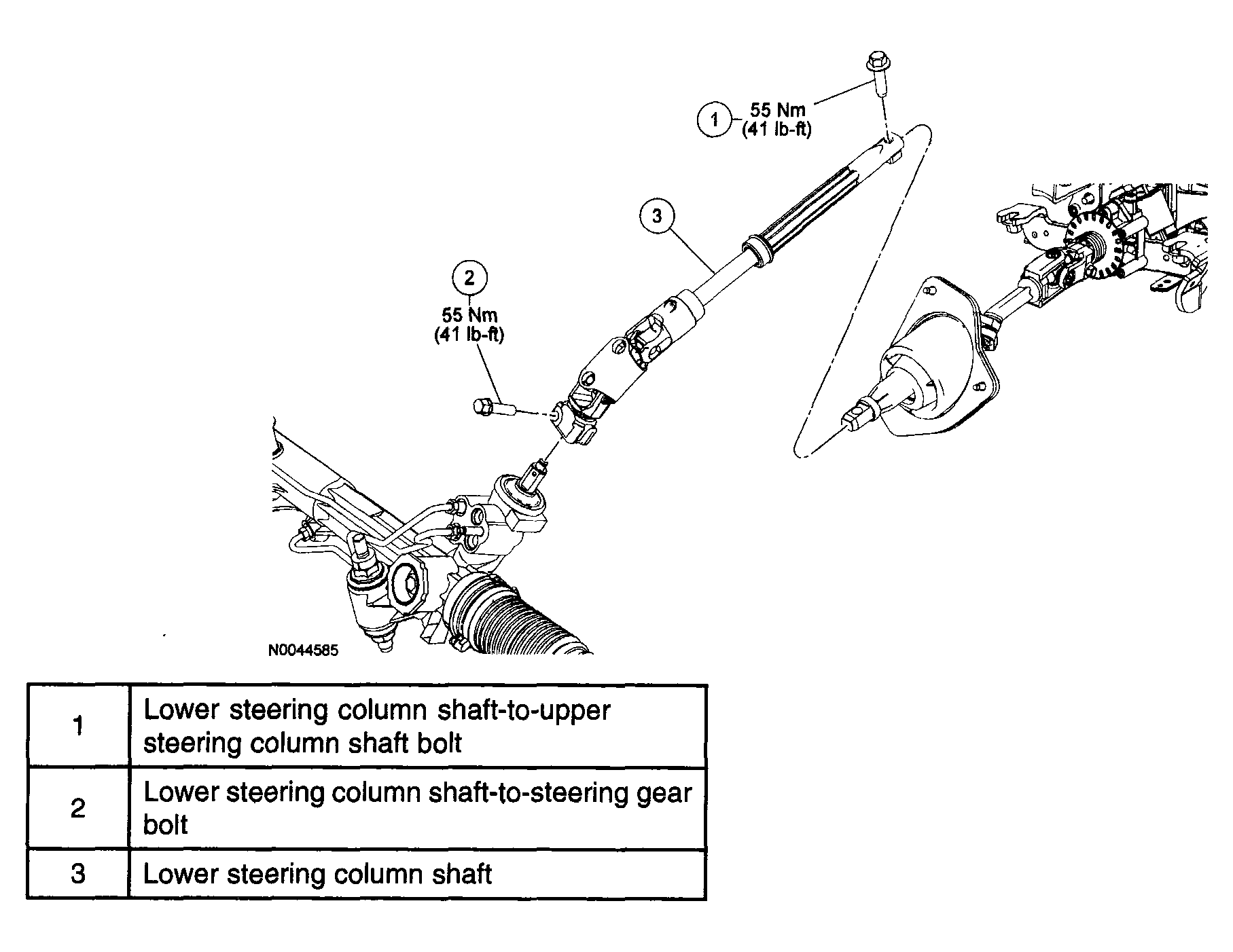

Fig 1: Removing/Installing Steering Column Shaft - Lower Intermediate Shaft With Torque Specifications
G04309583Courtesy of MAZDA MOTORS CORP.
