Connector End Views - Security And Locks

SECURITY AND LOCKS CONNECTOR END VIEWS

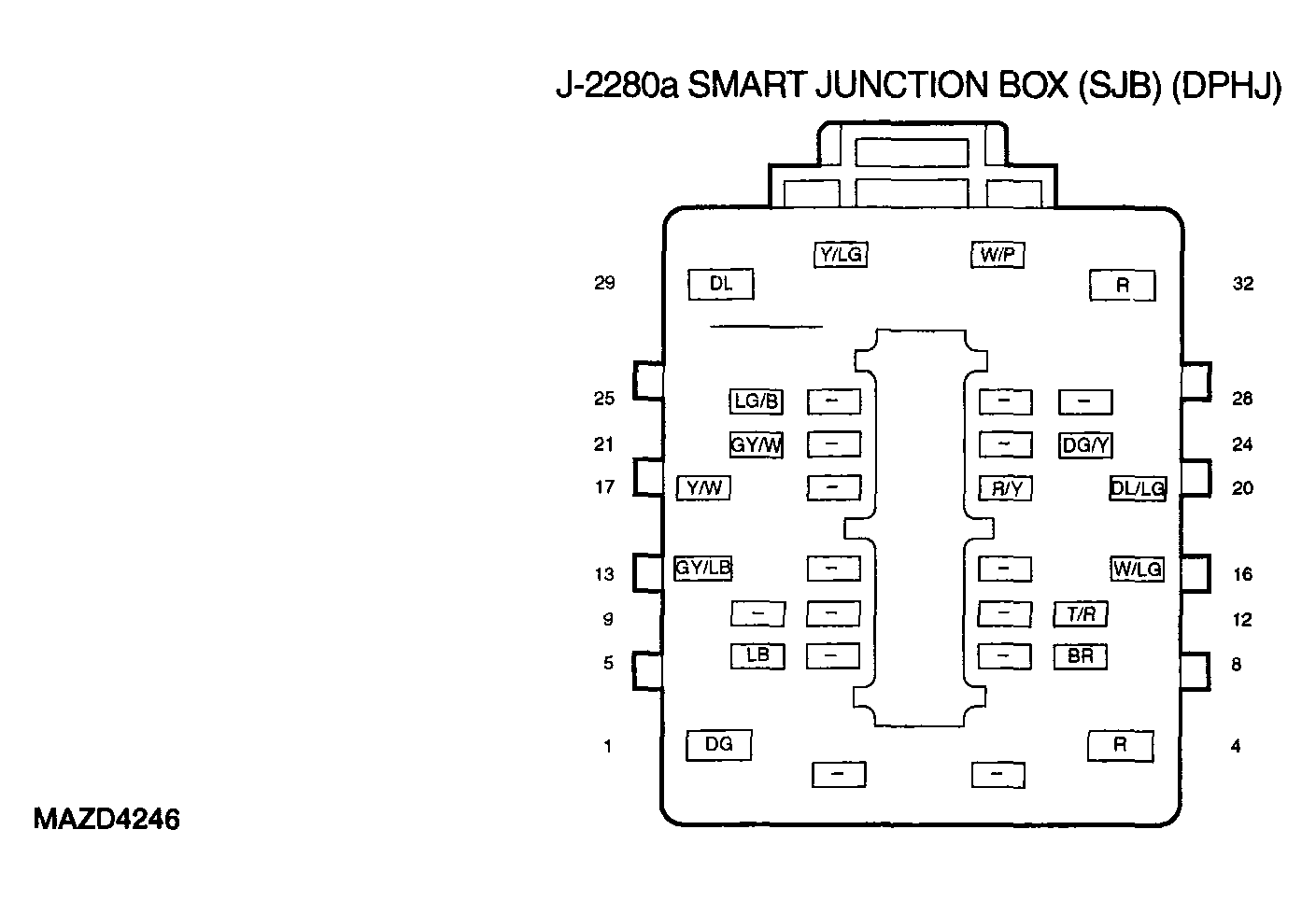

G04310030

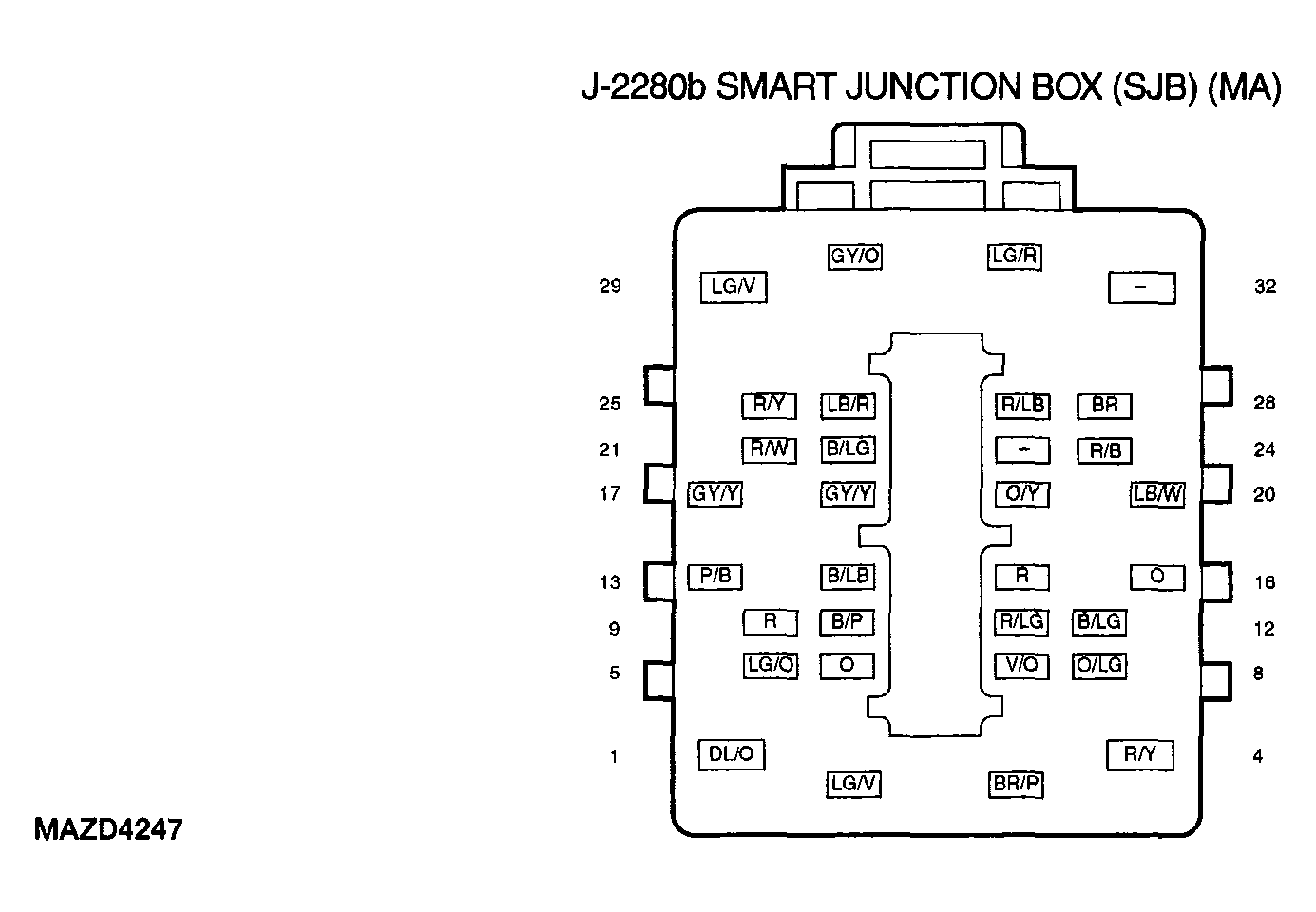

G04310031

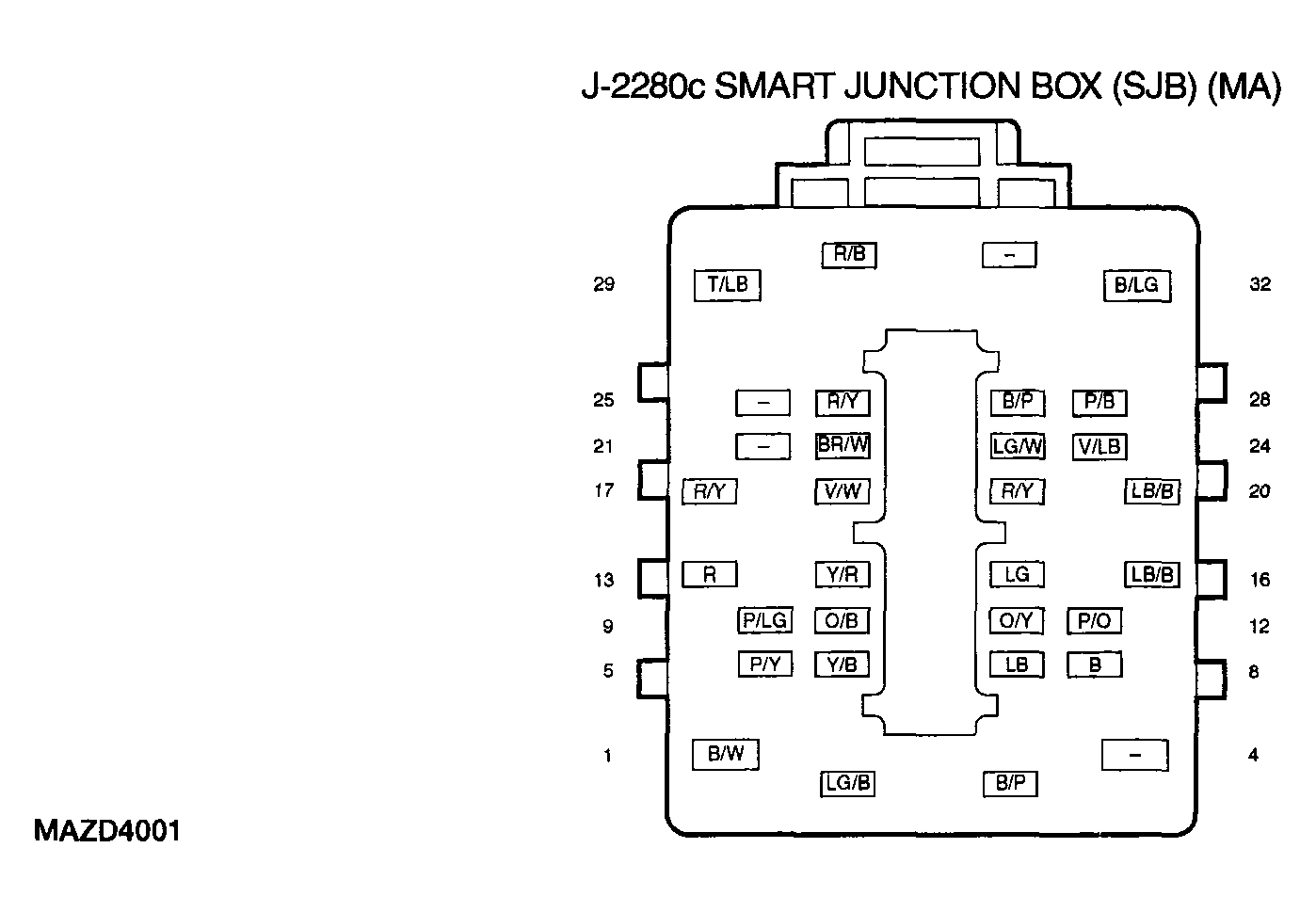

G04310032

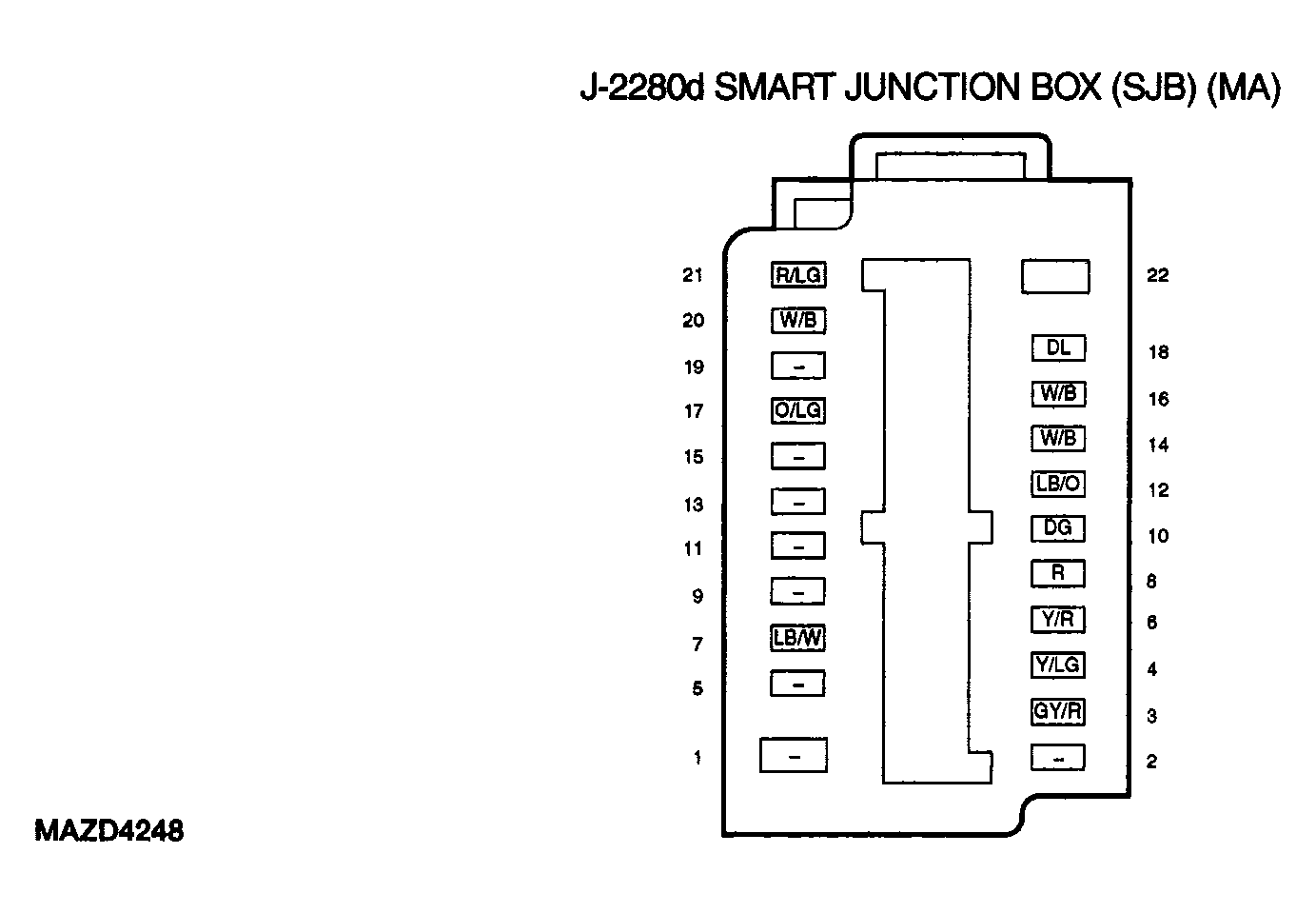

G04310033

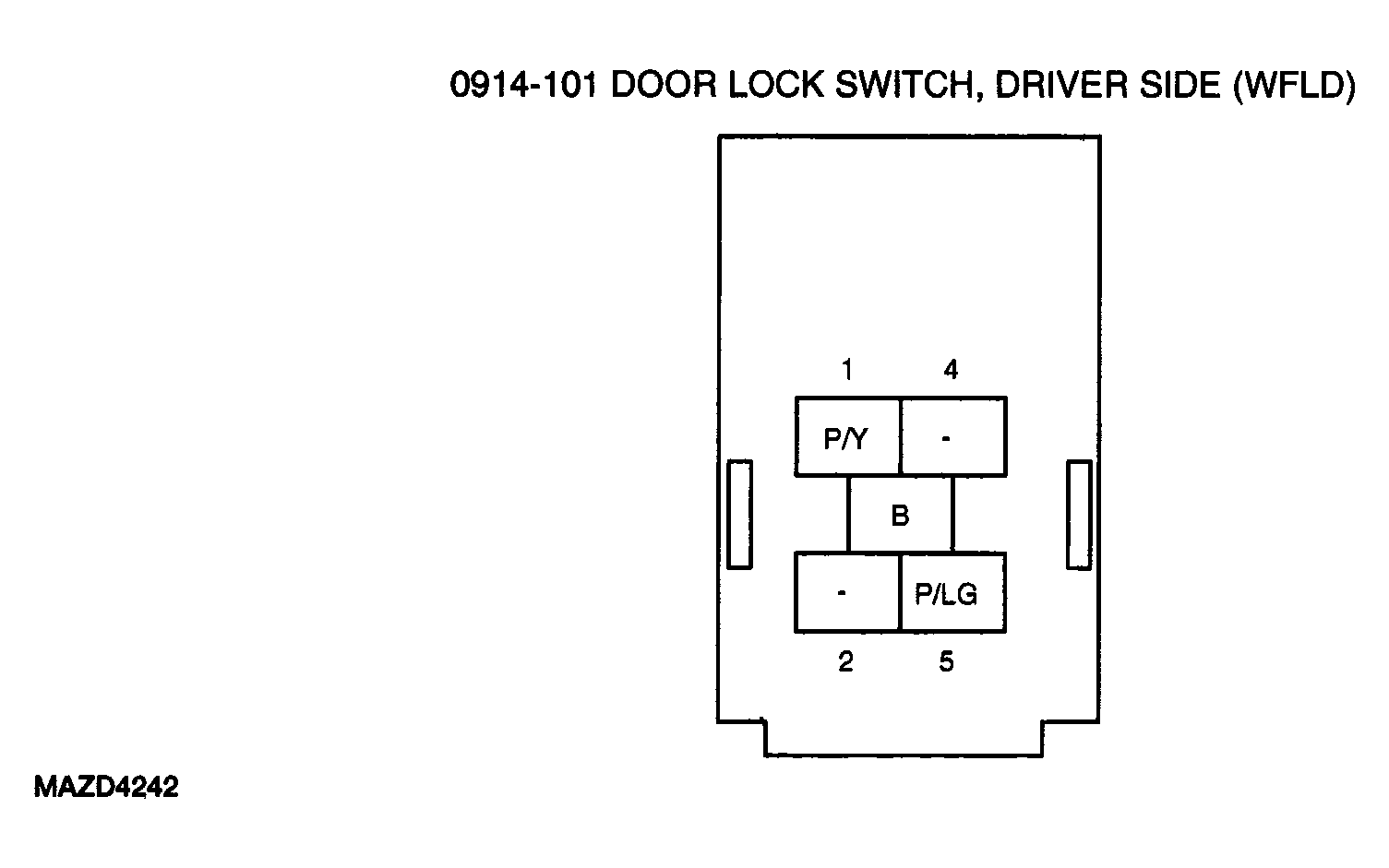

G04310034

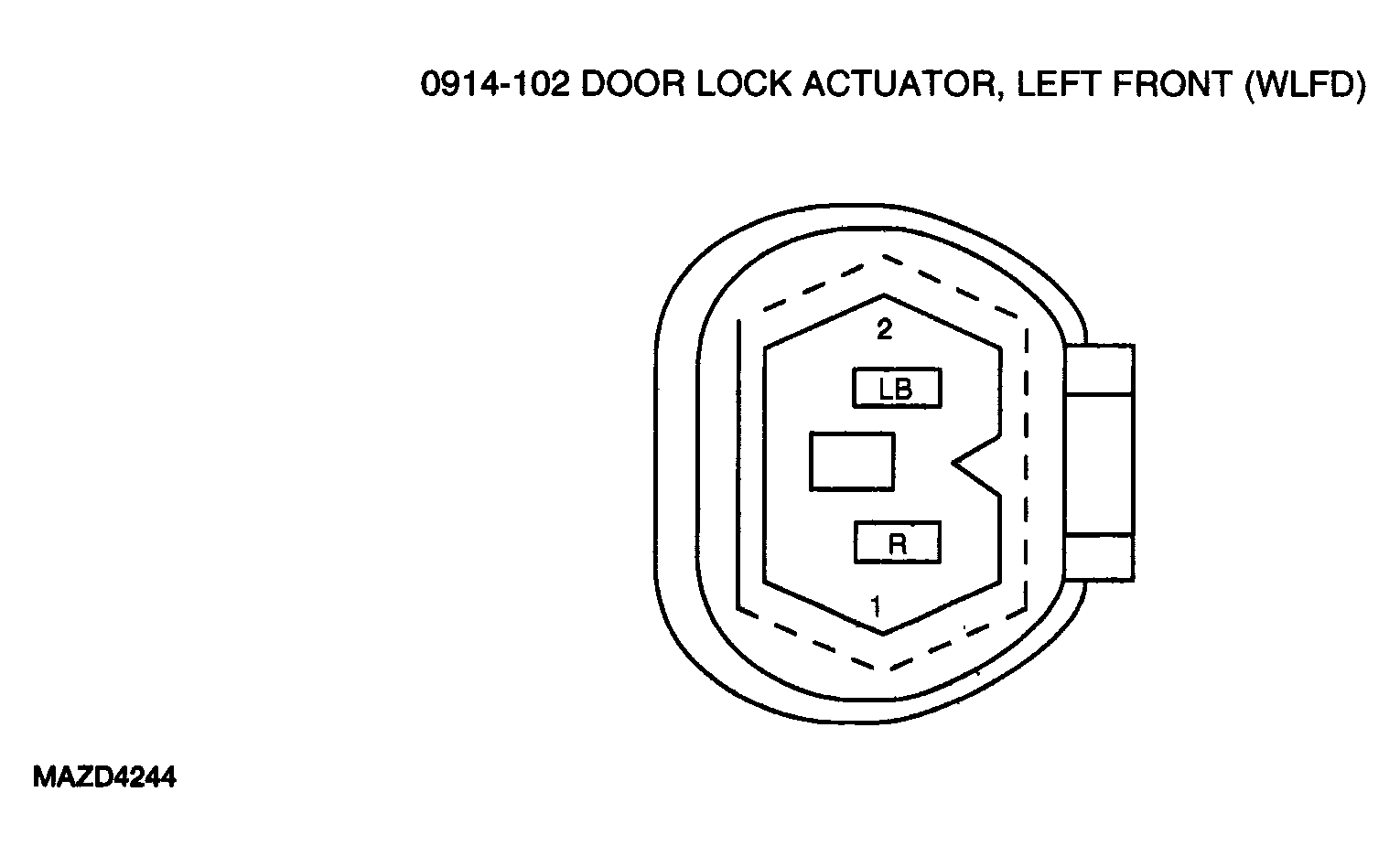

G04310035

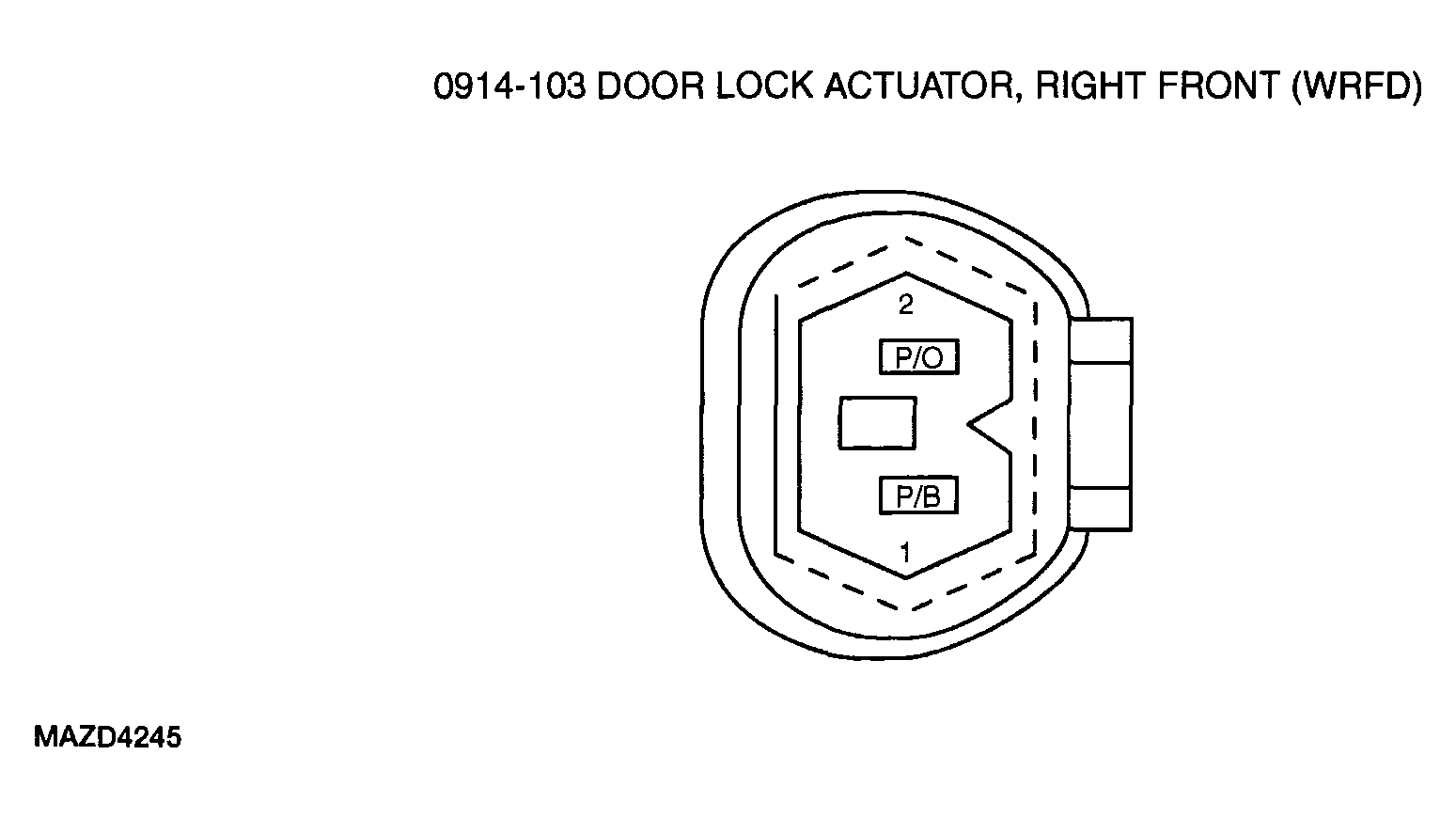

G04310036

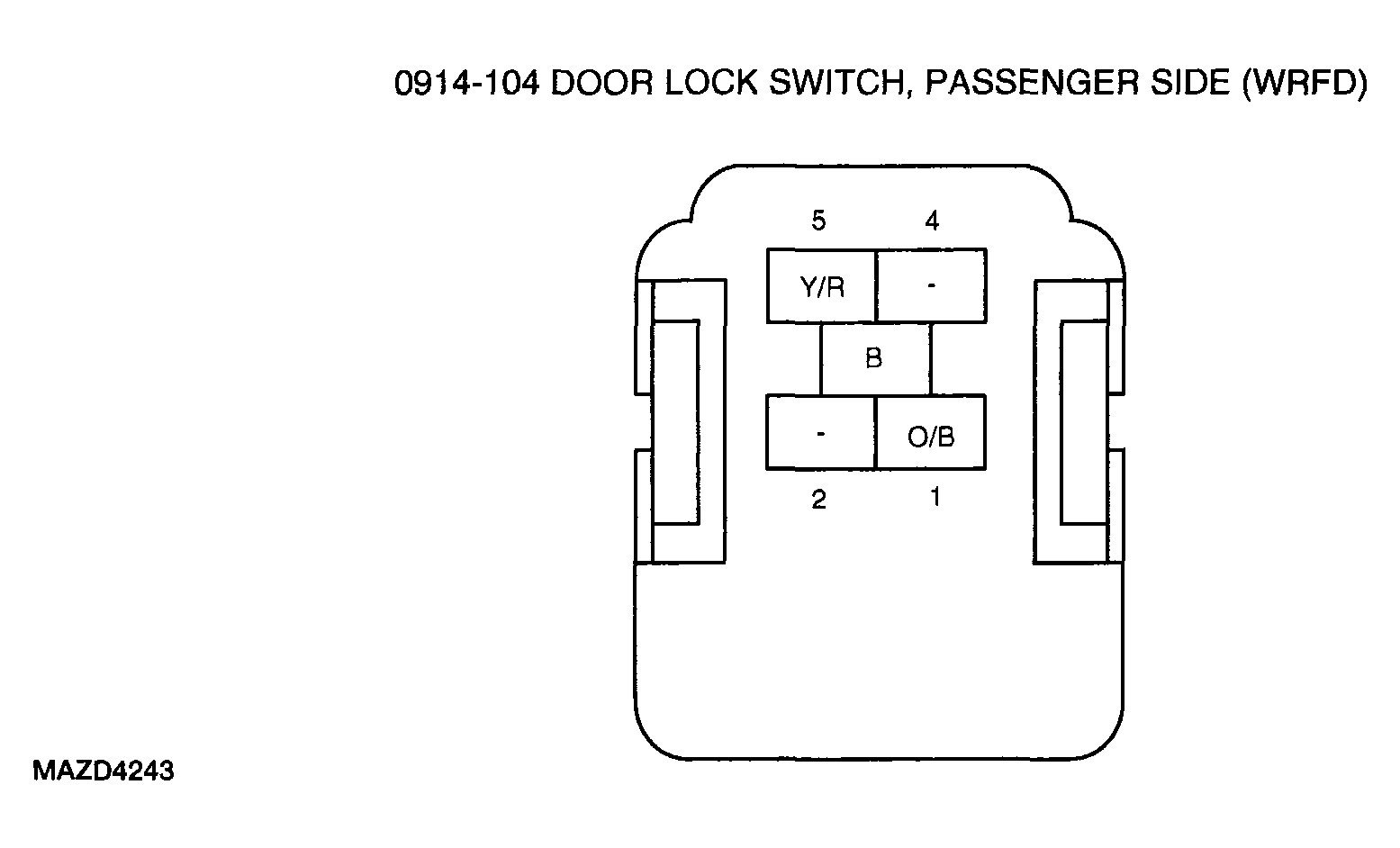

G04310037

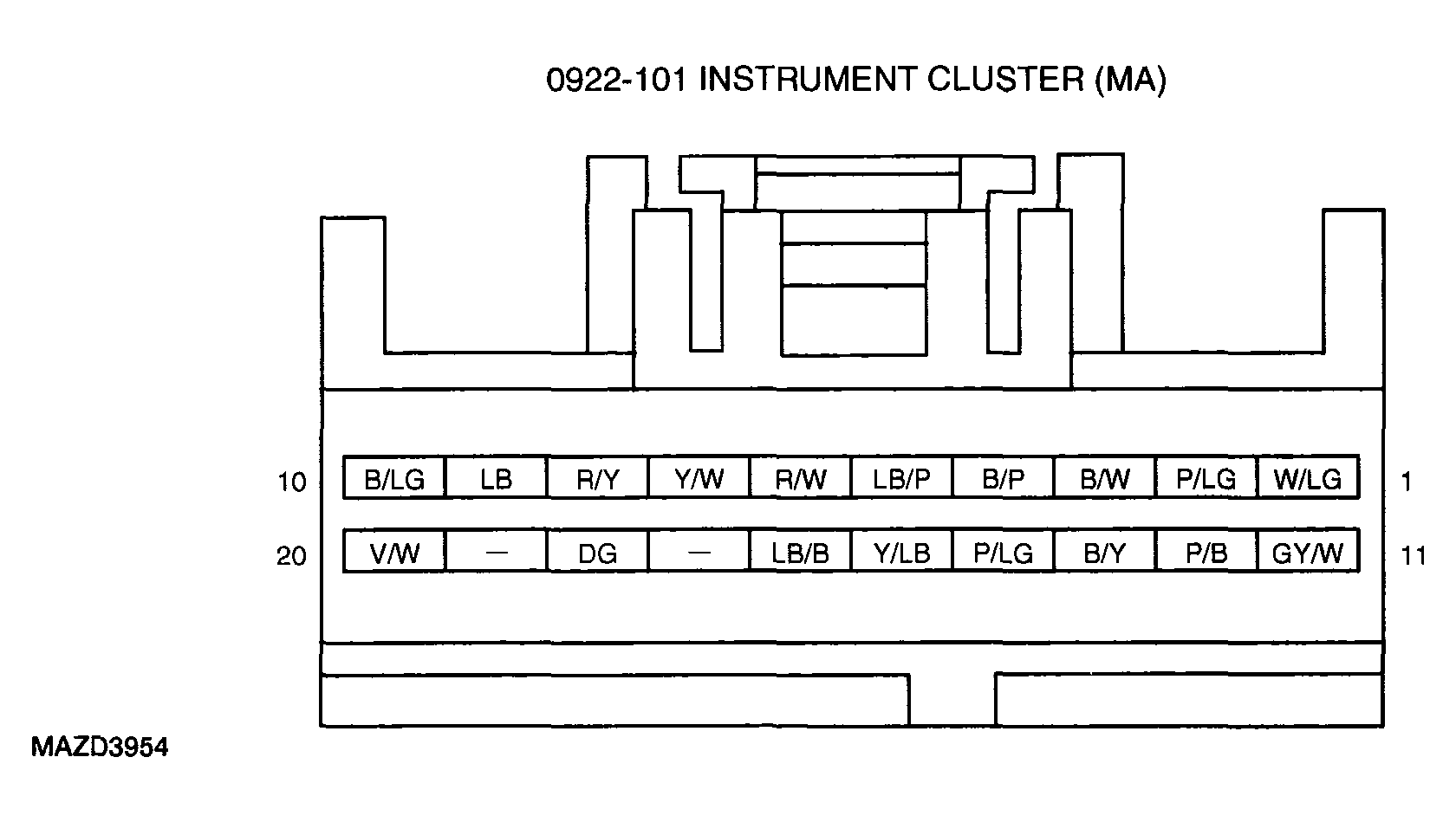

G04310038
