Power Door Lock System Location Index

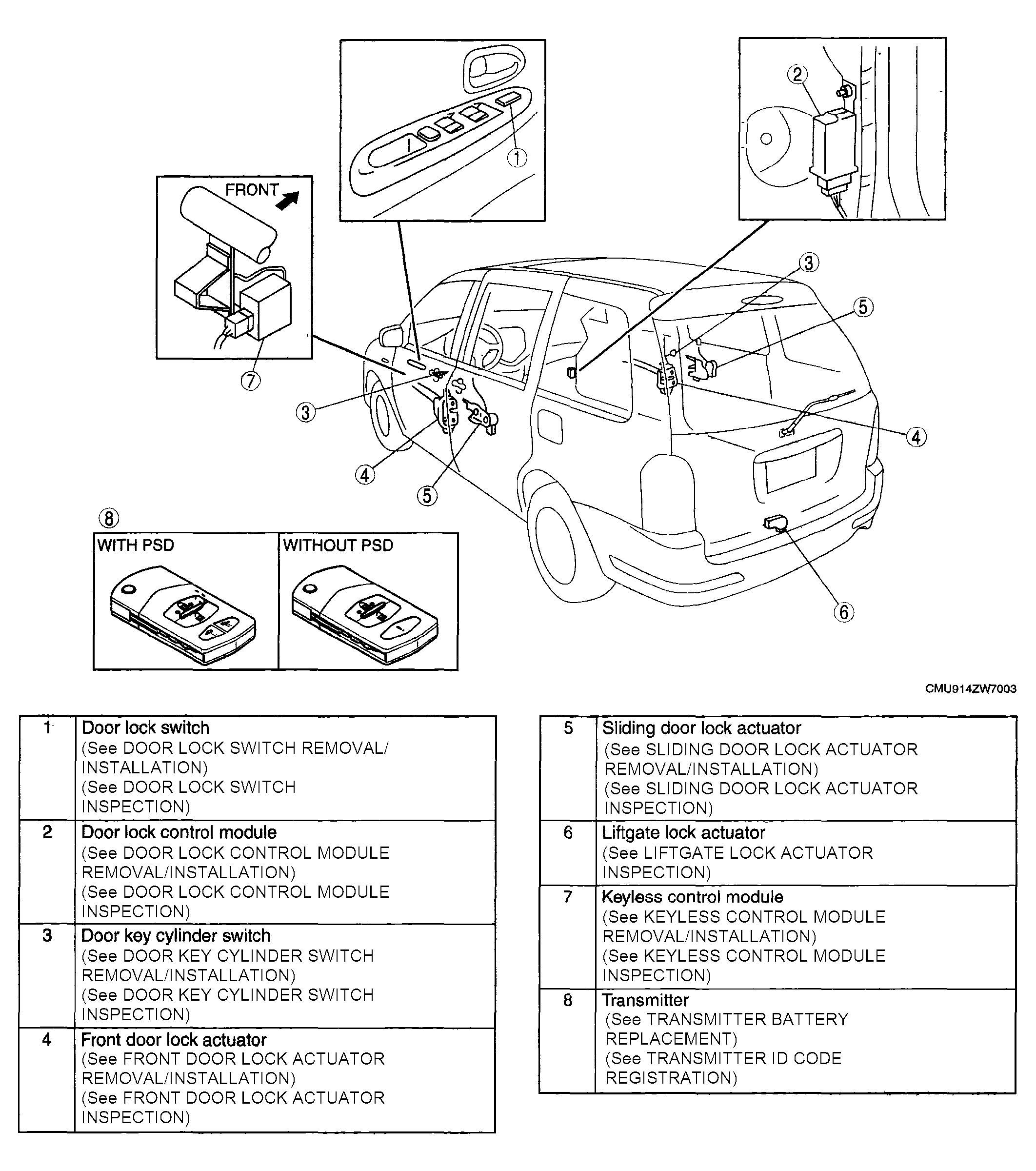

Fig 1: Identifying Power Door Lock System Components Location
G04329503Courtesy of MAZDA MOTORS CORP.
