Cigarette Lighter Removal/Installation: Notes

1. Disconnect the negative battery cable.
2. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
3. Remove in the order indicated in Fig 1.
4. Install in the reverse order of removal.

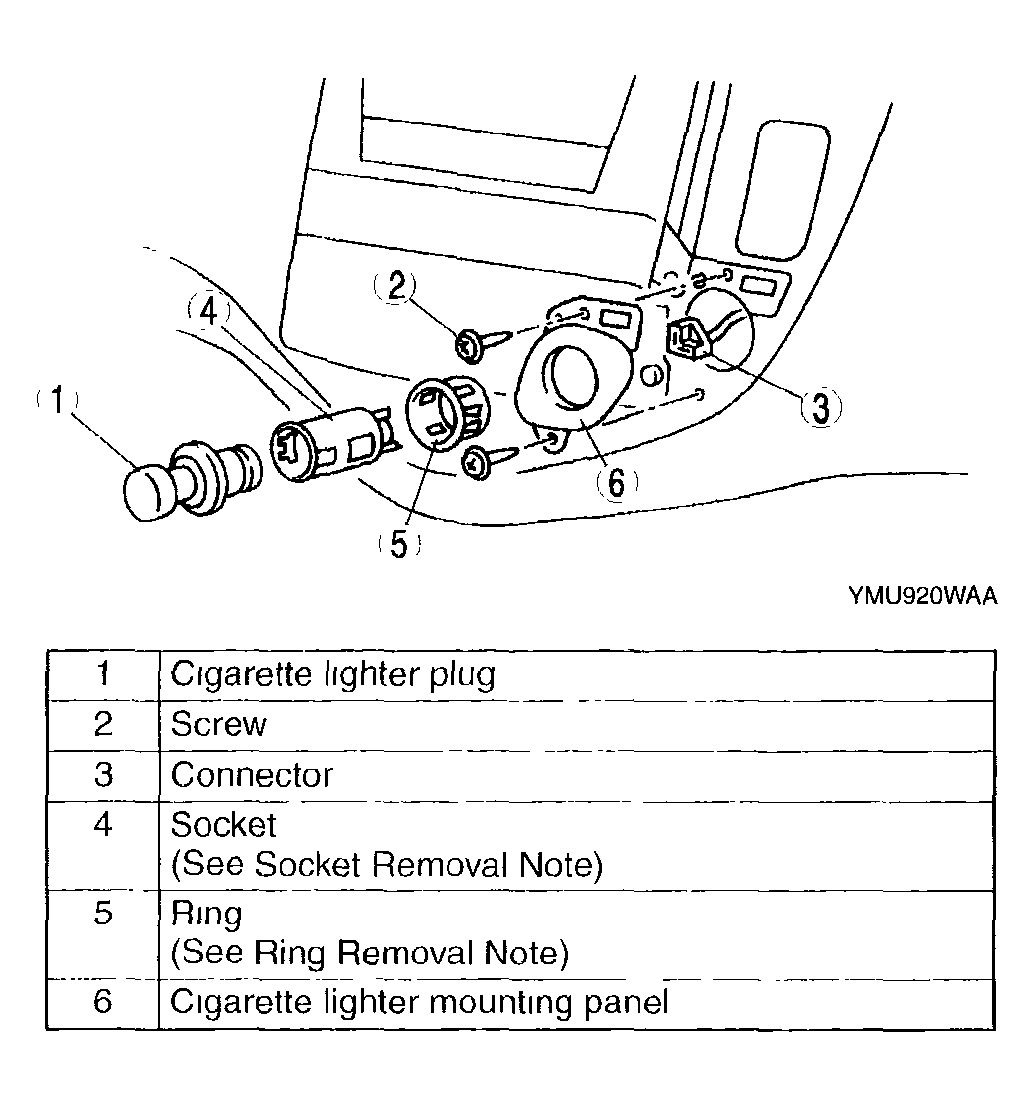

Fig 1: Cigarette Lighter

Courtesy of MAZDA MOTORS CORP.
