Socket Removal Note

  1. Turn the socket while pushing the protrusion of the ring through the hole of the socket with a tape-wrapped flathead screwdriver.

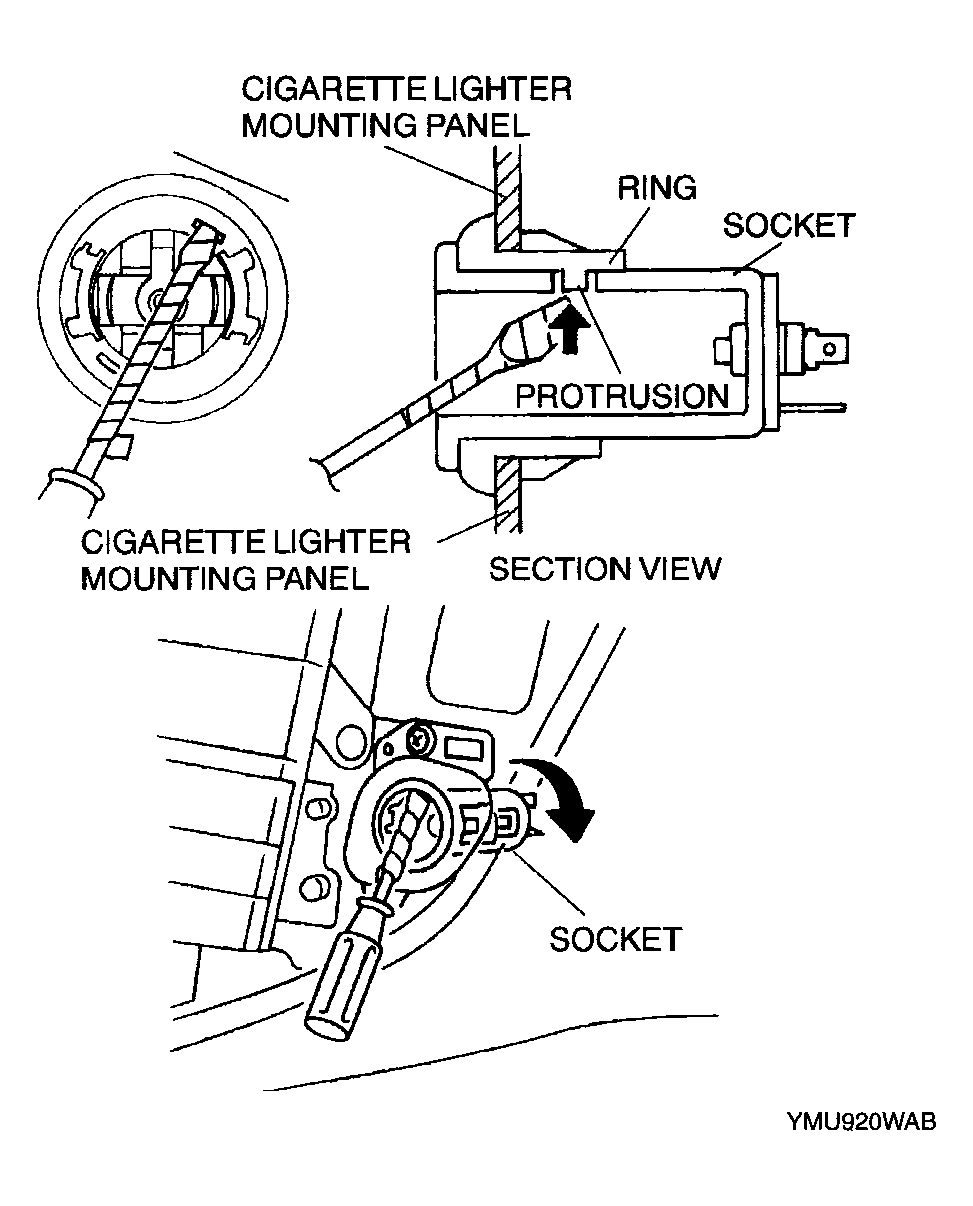

    Fig 1: Turning Socket While Pushing Protrusion Of Ring Through Hole Of Socket
    G04329816Courtesy of MAZDA MOTORS CORP.
  2. Push the socket forward.
  3. Return the socket clockwise to original angle position as shown to pull it forward.
    Fig 2: Returning Socket Clockwise To Original Angle Position
    G04329817Courtesy of MAZDA MOTORS CORP.
