Woofer Removal/Installation

1. Disconnect the negative battery cable.
2. Remove the driver-side rear side trim. (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
3. Remove in the order indicated in Fig 1.
4. Install in the reverse order of removal.

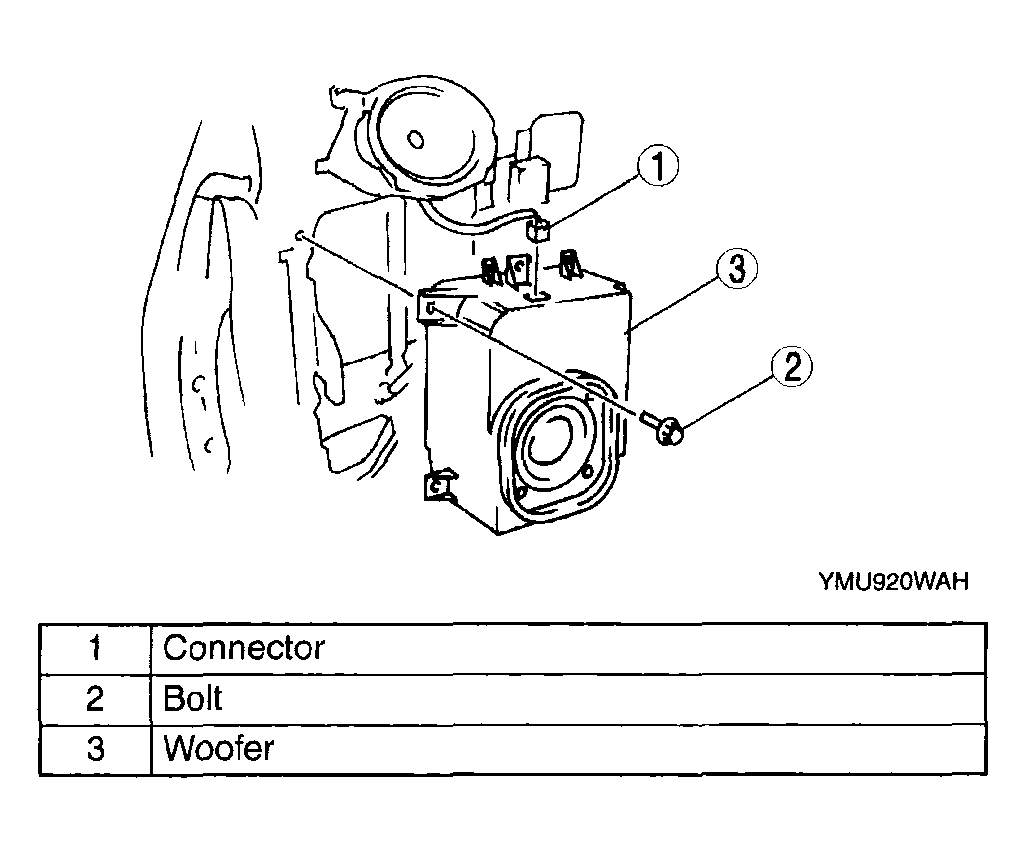

Fig 1: Identifying Woofer

Courtesy of MAZDA MOTORS CORP.
