High-Mount Brake Light Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.

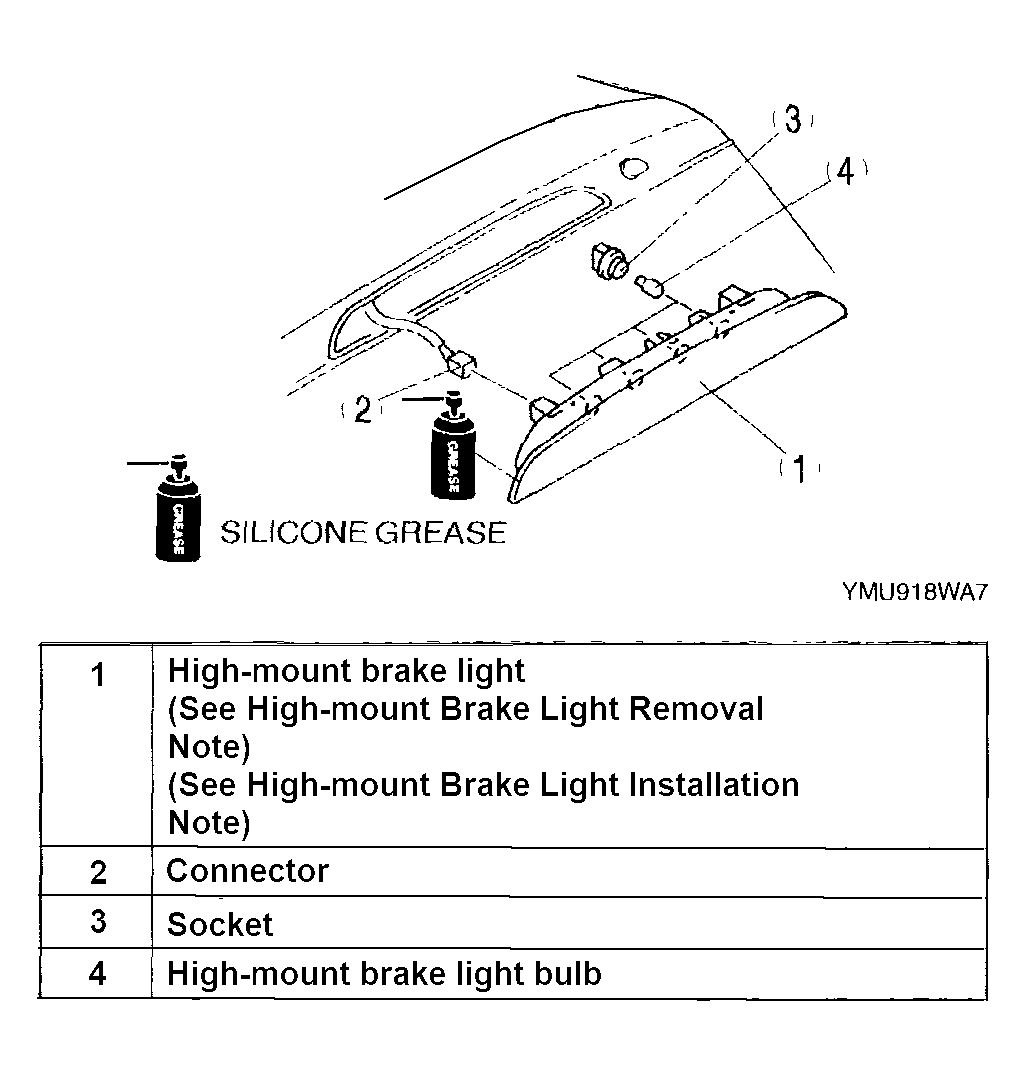

    Fig 1: Removing/Installing High-Mount Brake Light
    G04329684Courtesy of MAZDA MOTORS CORP.
