Without Sliding Sunroof: Notes

1. Disconnect the negative battery cable.
2. Remove in the order indicated in Fig 1.

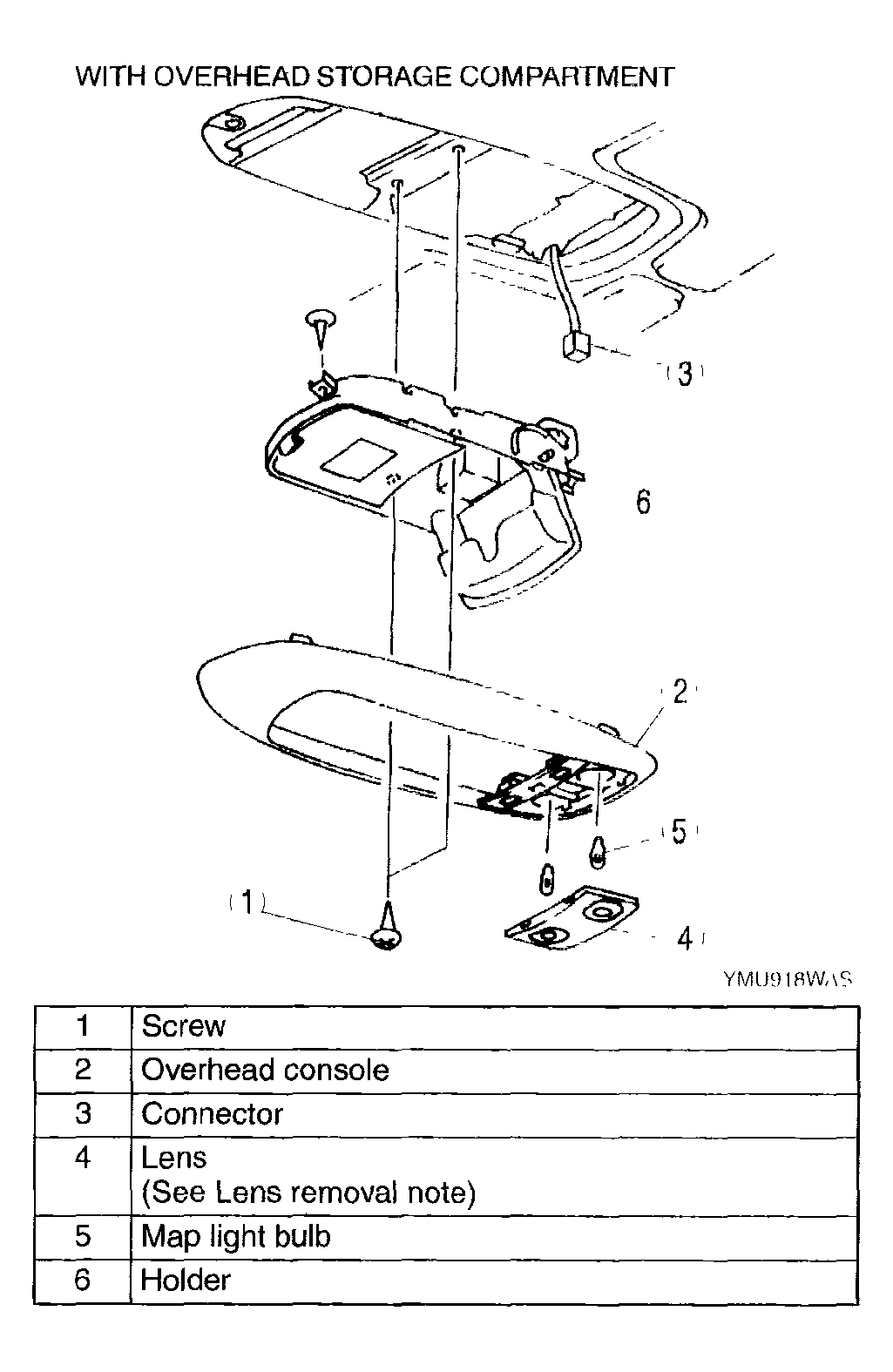

   Fig 1: Removing/Installing MAP Light - With Overhead Storage Compartment (Without Sliding Sunroof)

   Courtesy of MAZDA MOTORS CORP.
3. Install in the reverse order of removal.

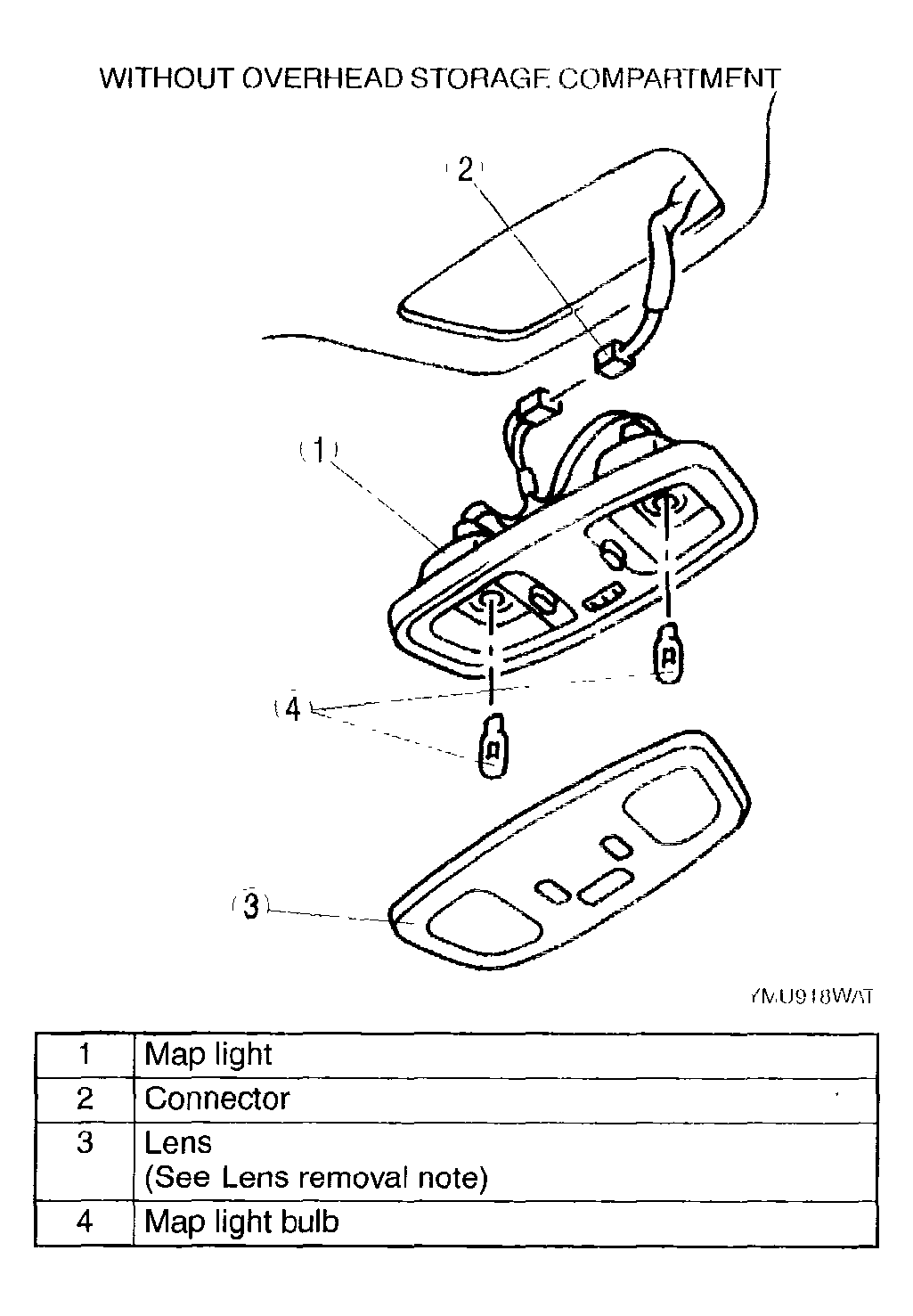

Fig 2: Removing/Installing MAP Light - Without Overhead Storage Compartment (Without Sliding Sunroof)

Courtesy of MAZDA MOTORS CORP.
