Rear Combination Light Removal/Installation: Notes

  1. Disconnect the negative battery cable
  2. Remove the rear side trim. (Right side only) (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in Fig 1.

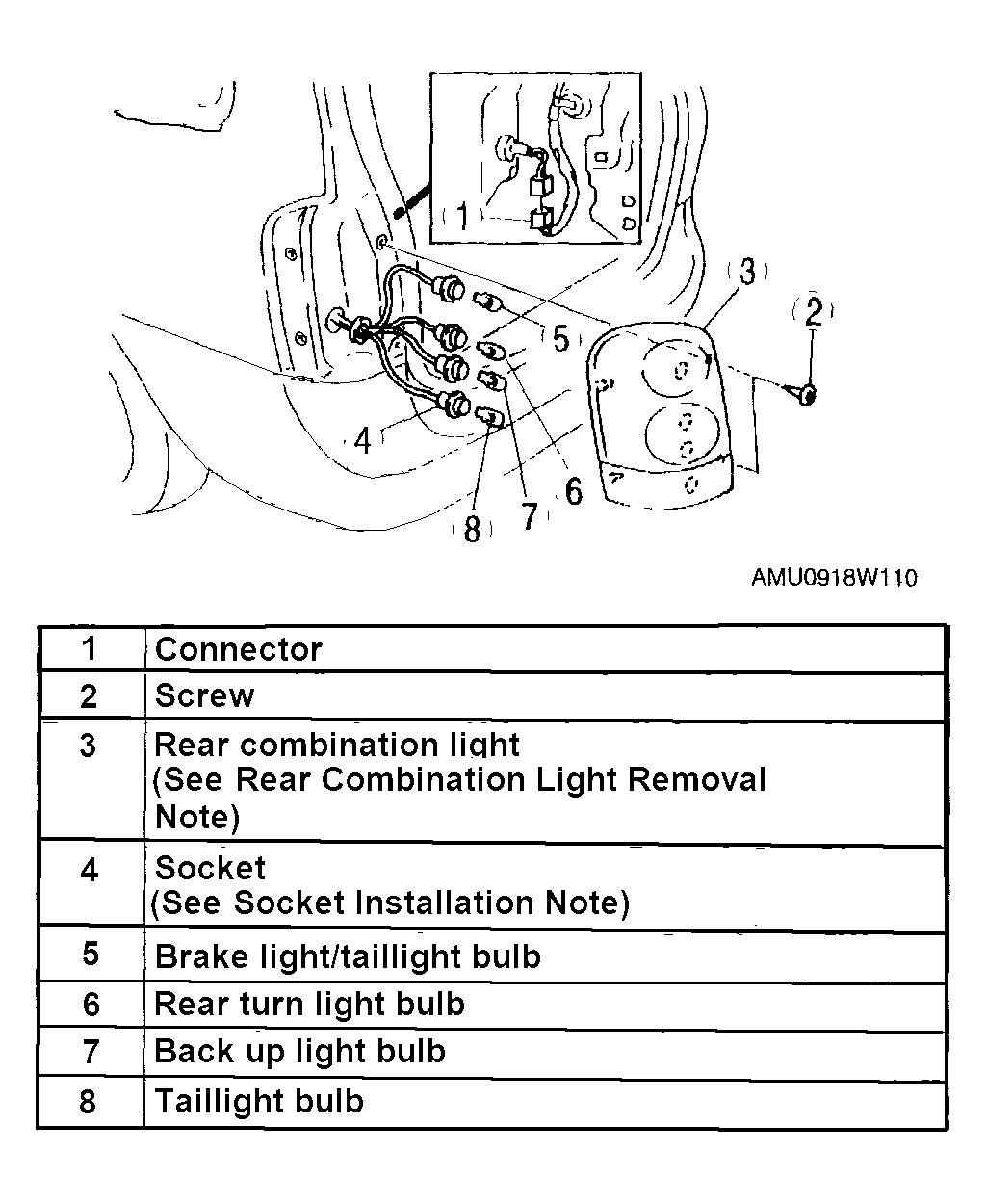

    Fig 1: Removing/Installing Rear Combination Light
    G04329681Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal
