Keyless Control Module Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in Fig 1.

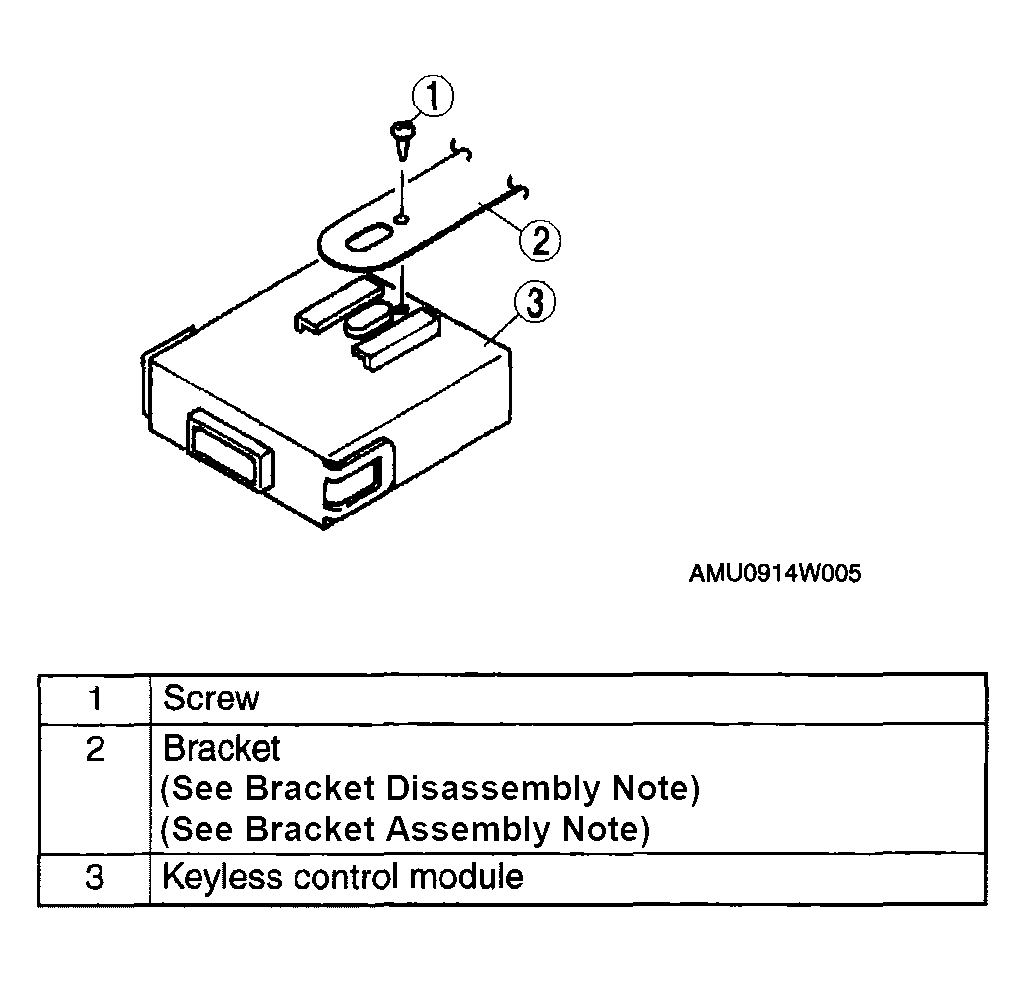

    Fig 1: Disassembling Keyless Control Module
    G04329538Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
