MPV ES
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Symptom Troubleshooting [Keyless Entry System)
›

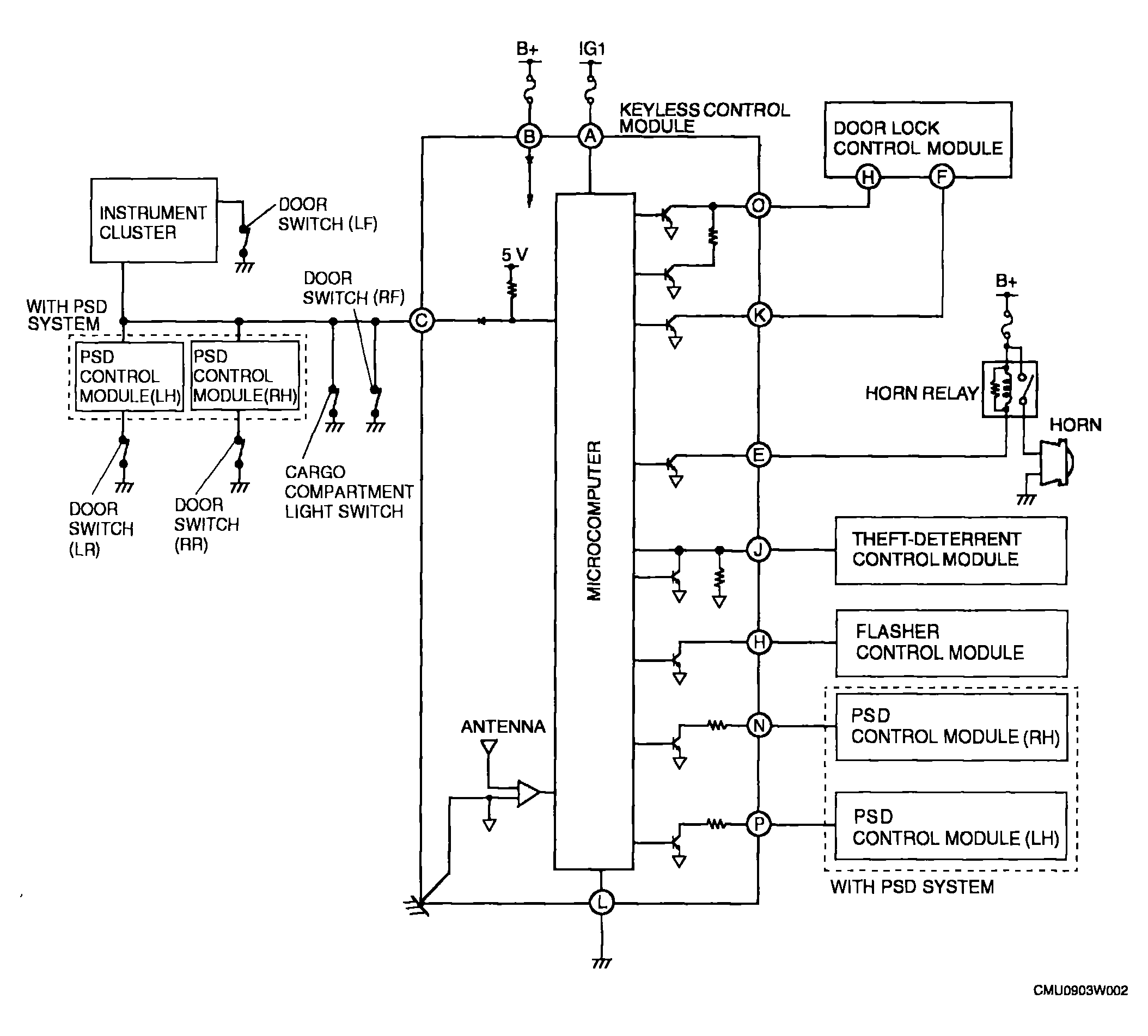

Keyless Entry System Wiring Diagram
Keyless Entry System Wiring Diagram
Fig 1: Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
