Manual Outside Mirror Removal/Installation

  1. Remove the inner garnish.
  2. Remove the nuts, and then remove the manual outside mirror.
  3. Install in the reverse order of removal.

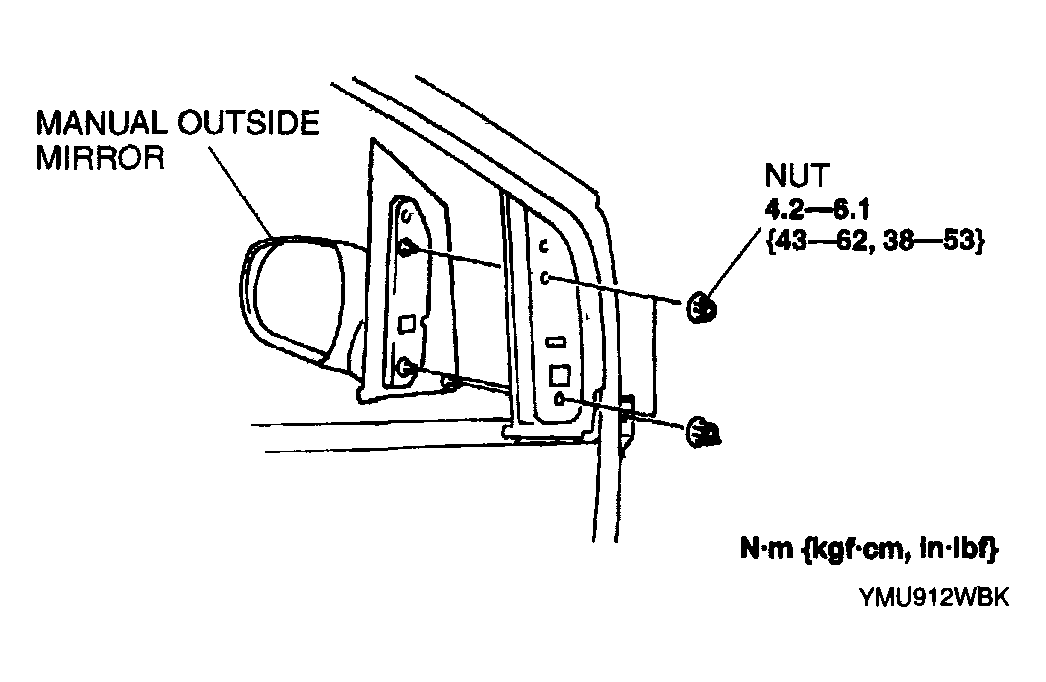

    Fig 1: Manual Outside Manual Mirror With Torque Specifications
    G04329465Courtesy of MAZDA MOTORS CORP.
