Symptom Troubleshooting
- Verify the symptom, and perform troubleshooting according to the appropriate number.

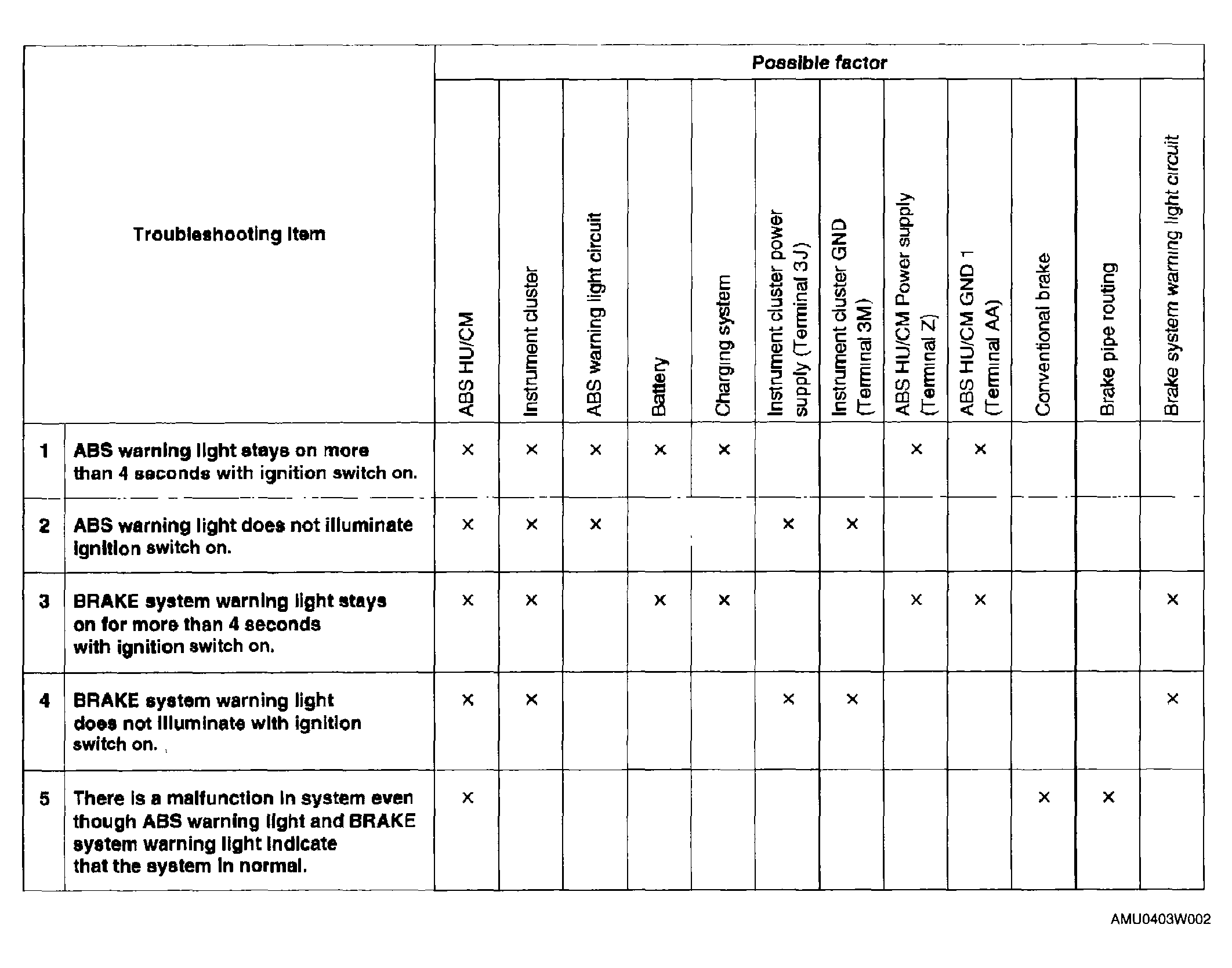

SYMPTOM TROUBLESHOOTING - WITHOUT TCS
| No. | TROUBLESHOOTING ITEM | DESCRIPTION | PAGE |
|---|---|---|---|
| 1 | ABS warning light stays on. | ABS warning light stays on for more than 4 seconds with ignition switch ON. (Parking brake is released.) | (See NO. 1 ABS WARNING LIGHT STAYS ON (WITHOUT TCS) ) |
| 2 | ABS warning light does not illuminate. | ABS warning light does not illuminate with ignition switch ON. | (See NO. 2 ABS WARNING LIGHT DOES NOT ILLUMINATE (WITHOUT TCS) ) |
| 3 | BRAKE system warning light stays on (without TCS). (Parking brake is released.) | BRAKE system warning light stays on for more than 4 seconds with ignition switch ON. (Parking brake is released.) | (See NO. 3 BRAKE SYSTEM WARNING LIGHT STAYS ON (WITHOUT TCS) ) |
| 4 | BRAKE system warning light does not illuminate (without TCS). | BRAKE system warning light does not illuminate with ignition switch ON. | (See NO. 4 BRAKE SYSTEM WARNING LIGHT DOES NOT ILLUMINATE (WITHOUT TCS) ) |
| 5 | BRAKE system malfunction. | There is a malfunction in system even though ABS warning light and BRAKE system warning light do not illuminate. | (See NO. 5 BRAKE SYSTEM MALFUNCTION (WITHOUT TCS) ) |

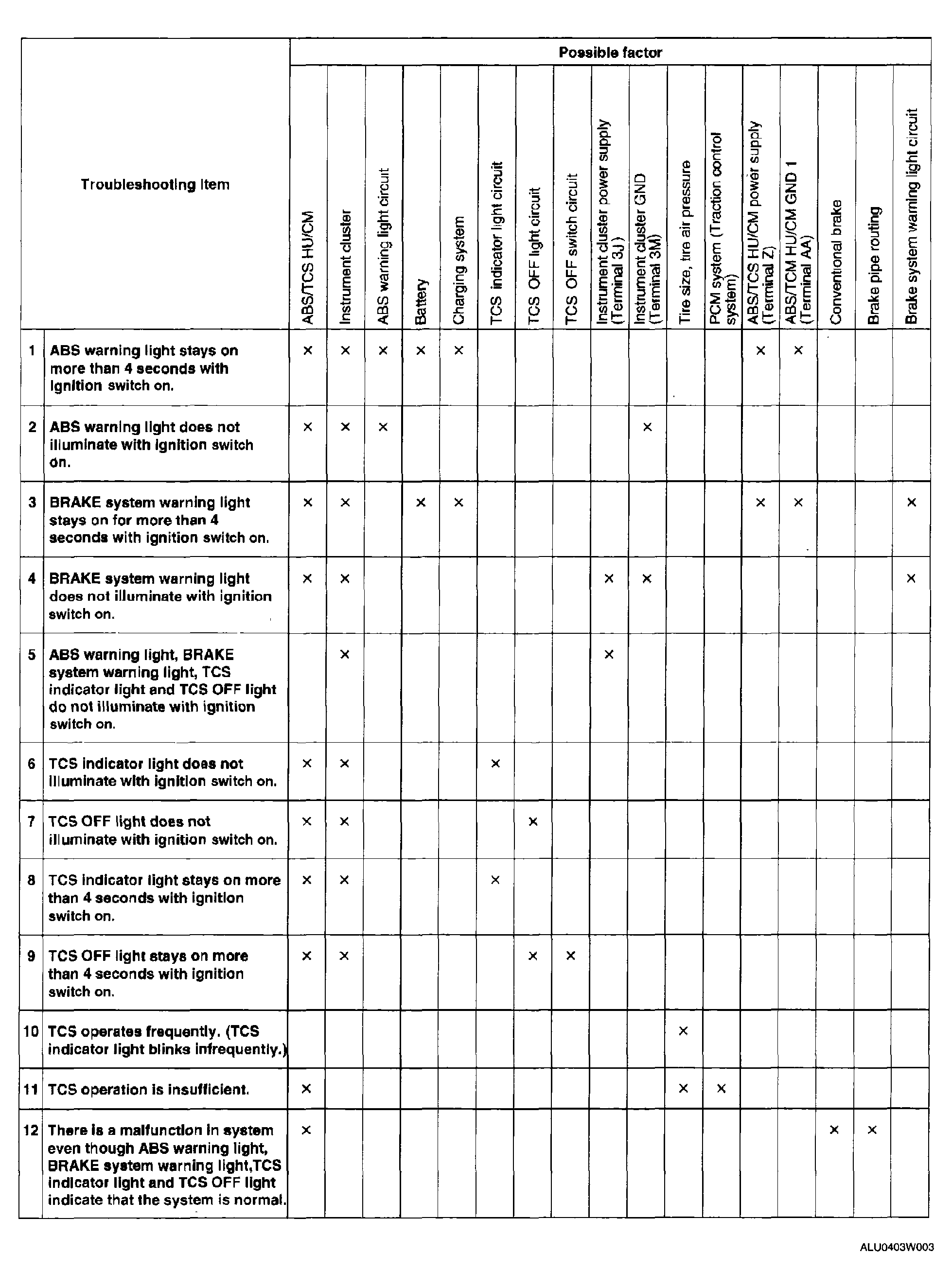

SYMPTOM TROUBLESHOOTING - WITH TCS
| No. | TROUBLESHOOTING ITEM | DESCRIPTION | PAGE |
|---|---|---|---|
| 1 | ABS warning light stays ON. | ABS warning light stays on more than 4 seconds with ignition switch on. | (See NO. 1 ABS WARNING LIGHT STAYS ON (WITH TCS) ) |
| 2 | ABS warning light does not illuminate. | ABS warning light does not illuminate with ignition switch on. | (See NO. 2 ABS WARNING LIGHT DOES NOT ILLUMINATE (WITH TCS) ) |
| 3 | BRAKE system warning light stays on (with TCS). (Parking brake is released.) | BRAKE system warning light stays on for more than 4 seconds with ignition switch ON. (Parking brake is released.) | (See NO. 3 BRAKE SYSTEM WARNING LIGHT STAYS ON (WITH TCS) ) |
| 4 | BRAKE system warning light does not illuminate (with TCS). | BRAKE system warning light does not illuminate with ignition switch ON. | (See NO. 4 BRAKE SYSTEM WARNING LIGHT DOES NOT ILLUMINATE (WITH TCS) ) |
| 5 | ABS warning light, BRAKE system warning light, TCS indicator light and TCS OFF light does not illuminate. | ABS warning light, BRAKE system warning light, TCS indicator light and TCS OFF light do not illuminate with ignition switch on. | (See NO. 5 ABS WARNING LIGHT, BRAKE SYSTEM WARNING LIGHT, TCS INDICATOR LIGHT AND TCS OFF LIGHT DO NOT ILLUMINATE (WITH TCS) ) |
| 6 | TCS indicator light does not illuminate. | TCS indicator light does not illuminate with ignition switch on. | (See NO. 6 TCS INDICATOR LIGHT DOES NOT ILLUMINATE (WITH TCS) ) |
| 7 | TCS OFF light does not illuminate. | TCS OFF light does not illuminate with ignition switch on. | (See NO. 7 TCS OFF LIGHT DOES NOT ILLUMINATE (WITH TCS) ) |
| 8 | TCS indicator light stays ON. | TCS indicator light stays on more than 4 seconds with ignition switch on. | (See NO. 8 TCS INDICATOR LIGHT STAYS ON (WITH TCS) ) |
| 9 | TCS OFF light stays ON. | TCS OFF light stays on more than 4 seconds with ignition switch on. | (See NO. 9 TCS OFF LIGHT STAYS ON (WITH TCS) ) |
| 10 | TCS operates frequently. | TCS operates frequently. (TCS indicator light blinks infrequently.) | (See NO. 10 TCS OPERATES FREQUENTLY (WITH TCS) ) |
| 11 | TCS does not operate correctly. | TCS does not operate correctly. | (See NO. 11 TCS DOES NOT OPERATE CORRECTLY (WITH TCS) ) |
| 12 | BRAKE and TCS system malfunction. | There is a malfunction in system even though ABS warning light, BRAKE system warning light, TCS indicator light and TCS OFF light indicate that the system is normal. | (See NO. 12 BRAKE AND TCS SYSTEM MALFUNCTION (WITH TCS) ) |
