Clock Spring Connector End View (Standard Deployment Control System)

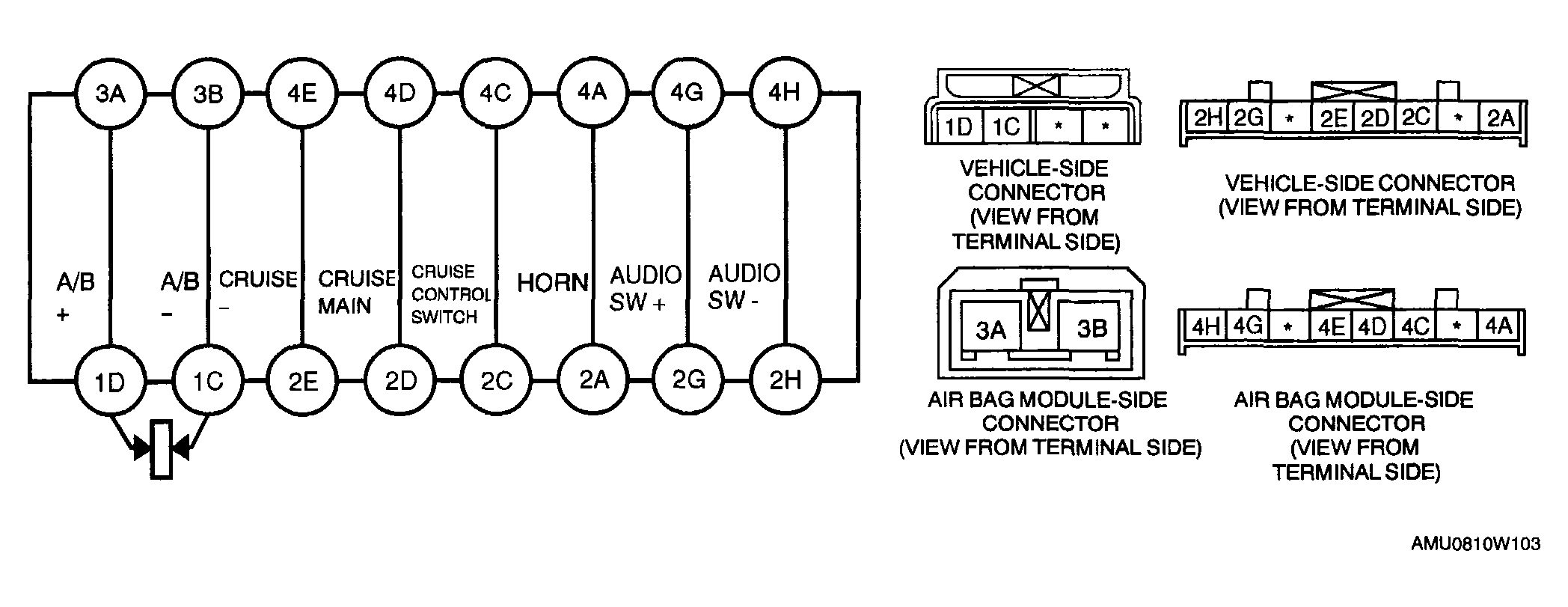

Fig 1: Clock Spring Connector End View (Standard Deployment Control System)
G04329155Courtesy of MAZDA MOTORS CORP.
