Clock Spring Connector End View (Two-Step Deployment Control System)

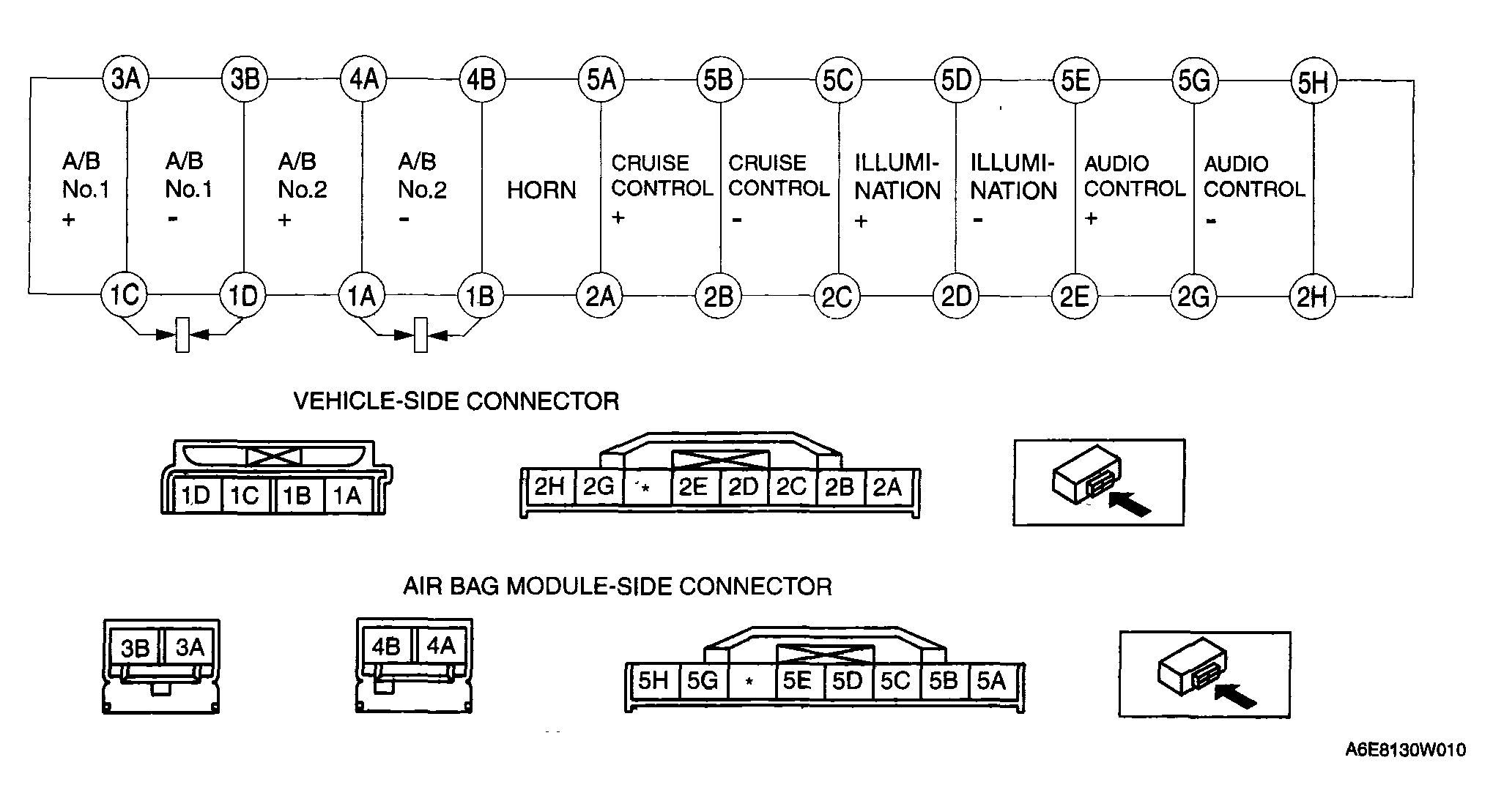

Fig 1: Clock Spring Connector End View (Two-Step Deployment Control System)
G04329157Courtesy of MAZDA MOTORS CORP.
