Front Resistor Connector End View
Front Resistor Connector End View

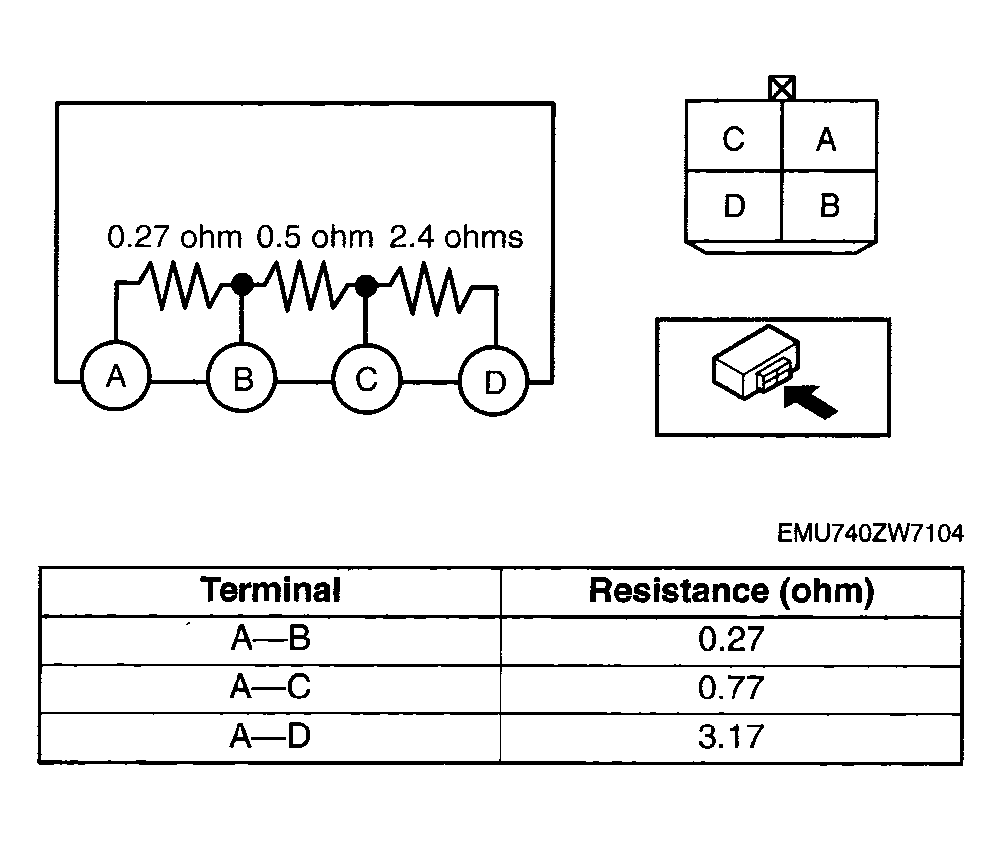

Fig 1: Front Resistor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
