Ignition Switch Inspection

1. Disconnect the ignition switch connectors.
2. Inspect for continuity between the ignition switch terminals using an ohmmeter.
   • If not as specified, replace the ignition switch.

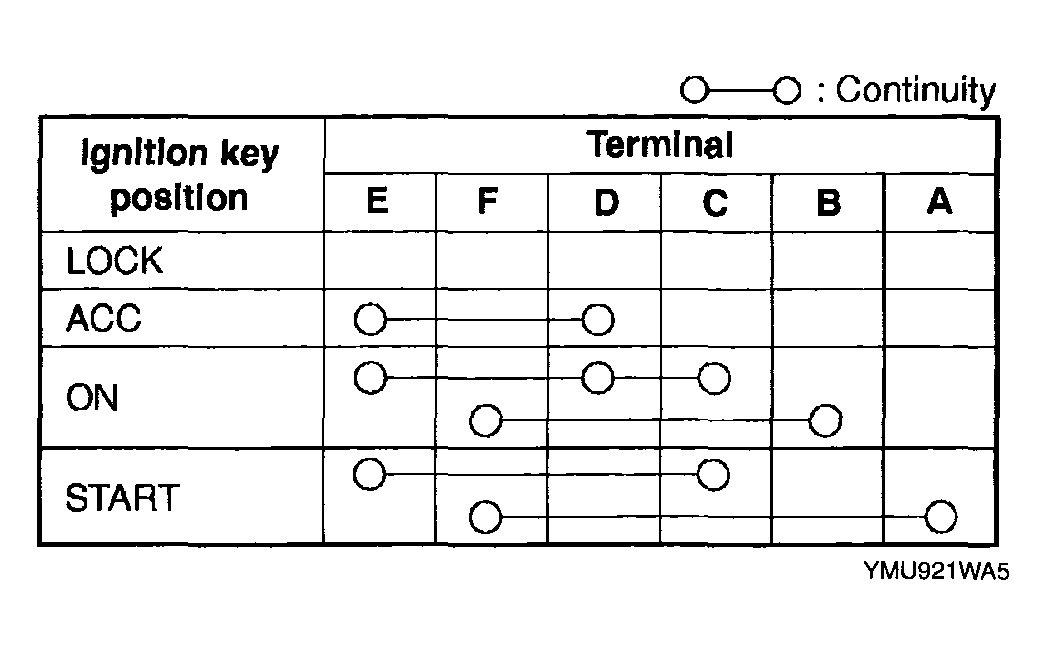

Fig 1: Ignition Switch Continuity Table

Courtesy of MAZDA MOTORS CORP.

Fig 2: Ignition Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.
