Main Fuse Removal/Installation

1. Disconnect the negative battery cable.
2. Remove the main fuse block cover.
3. Remove in the order indicated in Fig 1.
4. Install in the reverse order of removal.

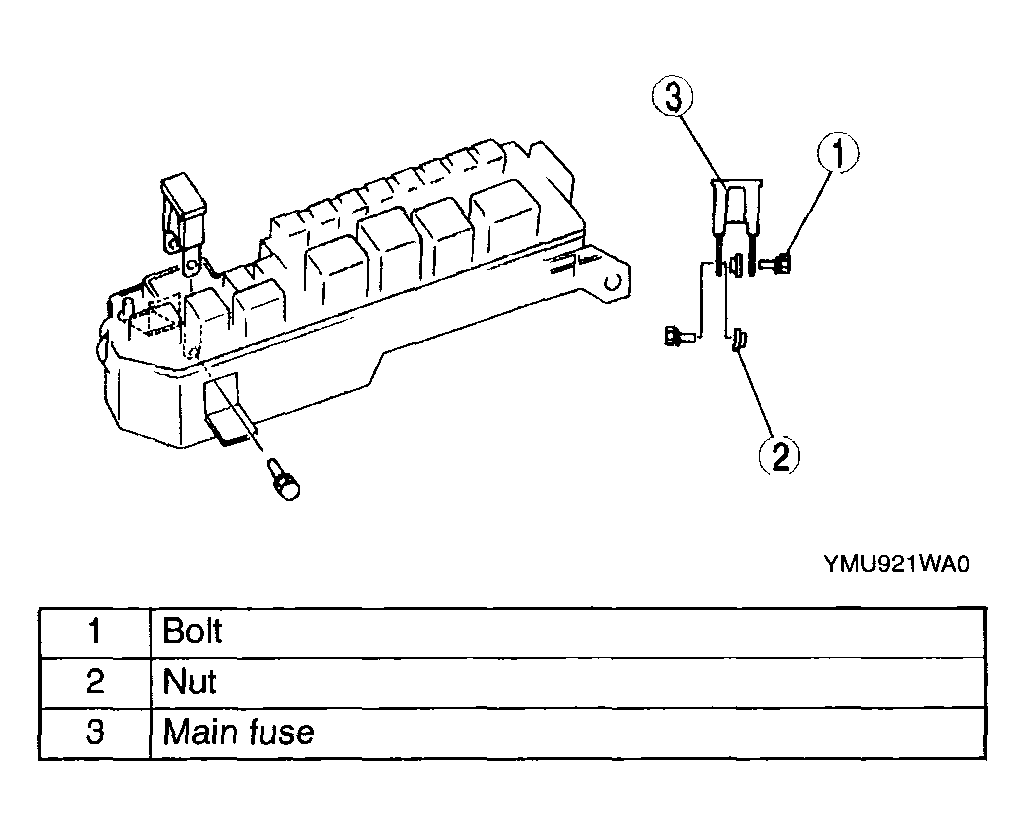

Fig 1: Identifying Main Fuse

Courtesy of MAZDA MOTORS CORP.
