EGR System Location Index

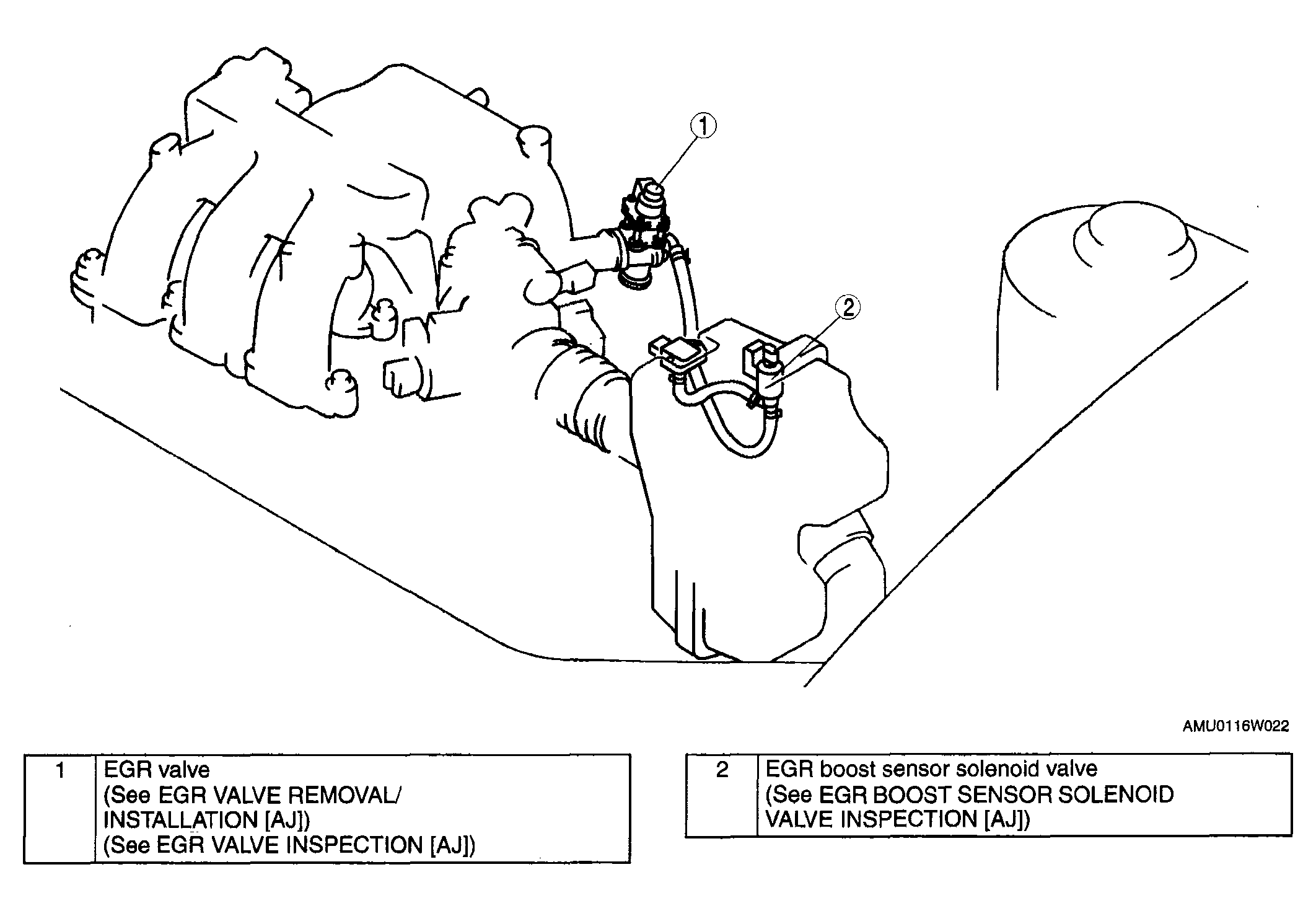

Fig 1: Identifying EGR System Components Location
G04328217Courtesy of MAZDA MOTORS CORP.
