Cooling System Location Index

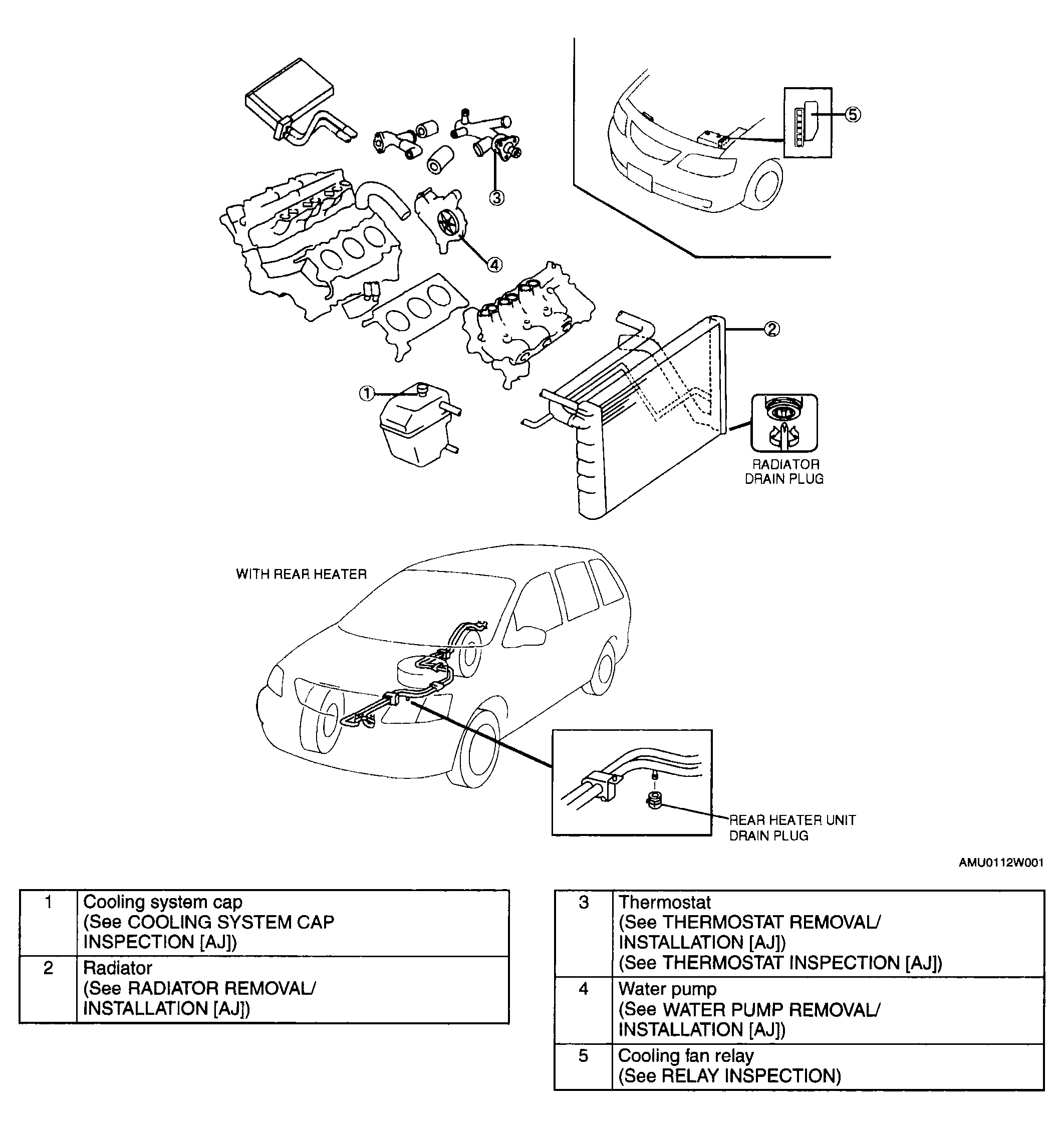

Fig 1: Identifying Cooling System Components Location
G04328096Courtesy of MAZDA MOTORS CORP.
