Lubrication System Location Index

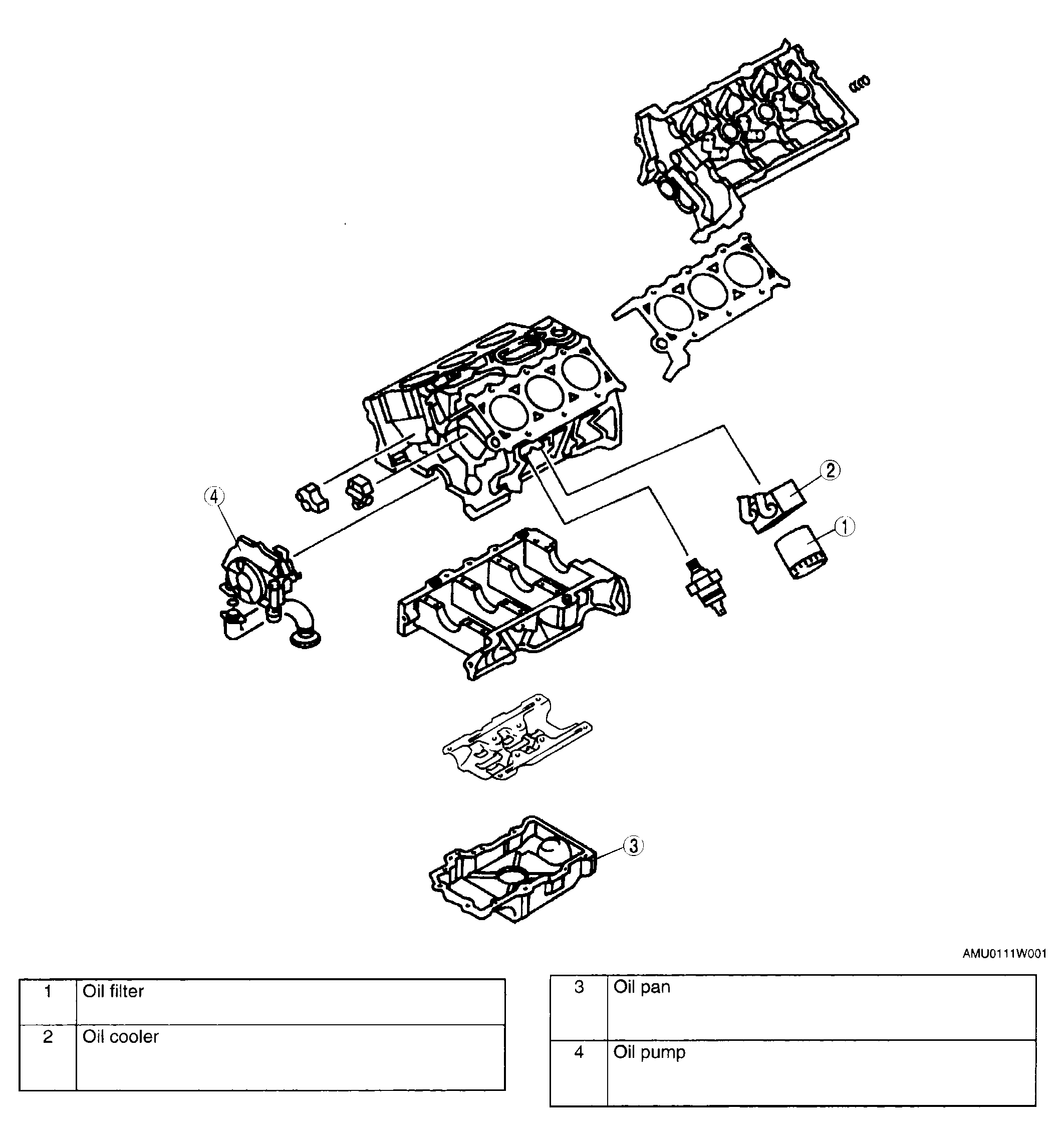

Fig 1: Identifying Lubrication System Components Location
G04328077Courtesy of MAZDA MOTORS CORP.
