Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Control System Diagram
›
With Rear HO2S Model
With Rear HO2S Model

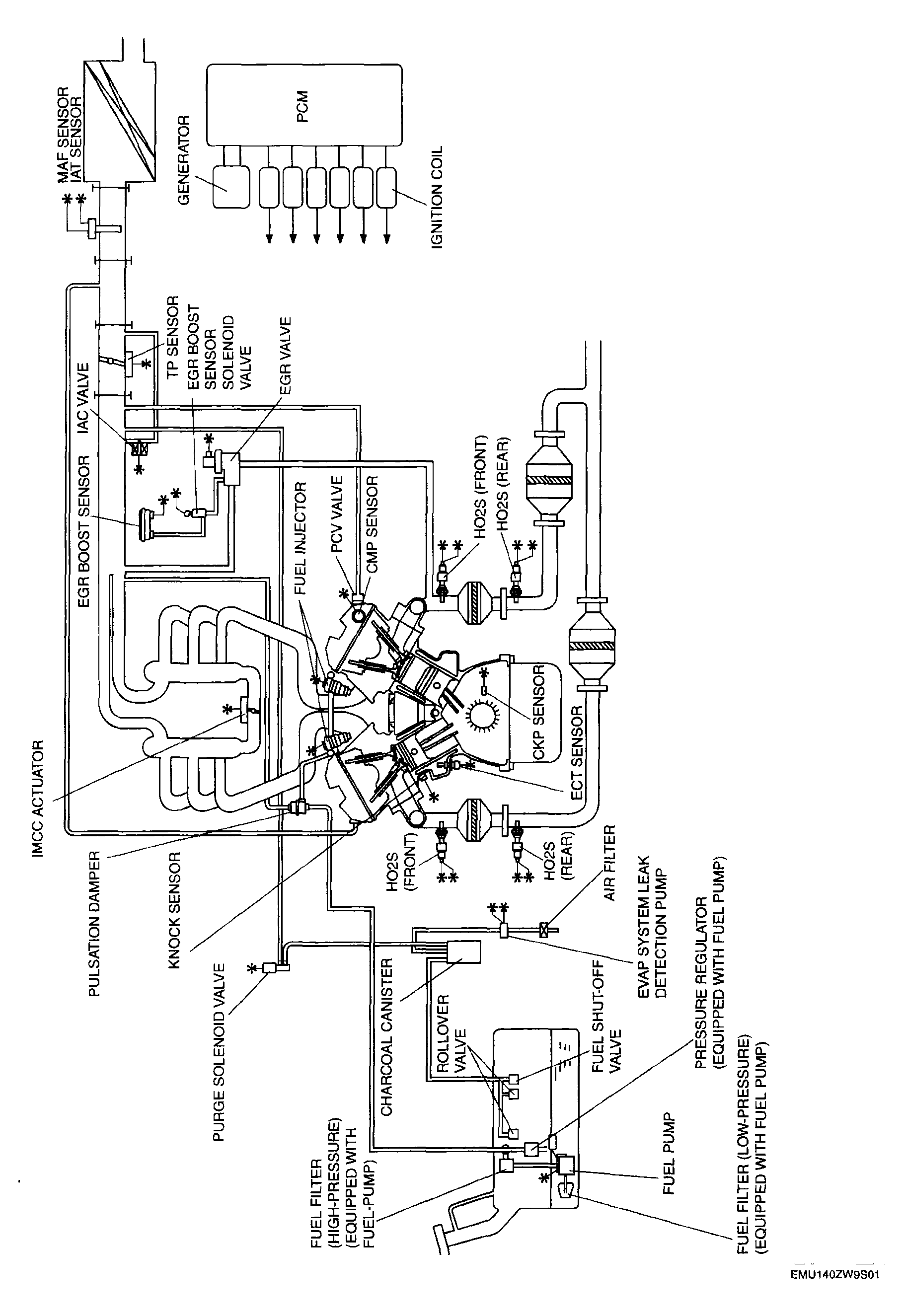

Fig 1: Control System Diagram - With Rear HO2S Model
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
