Control System Wiring Diagram
›
Without Rear HO2S Model
›
With immobilizer system
With immobilizer system

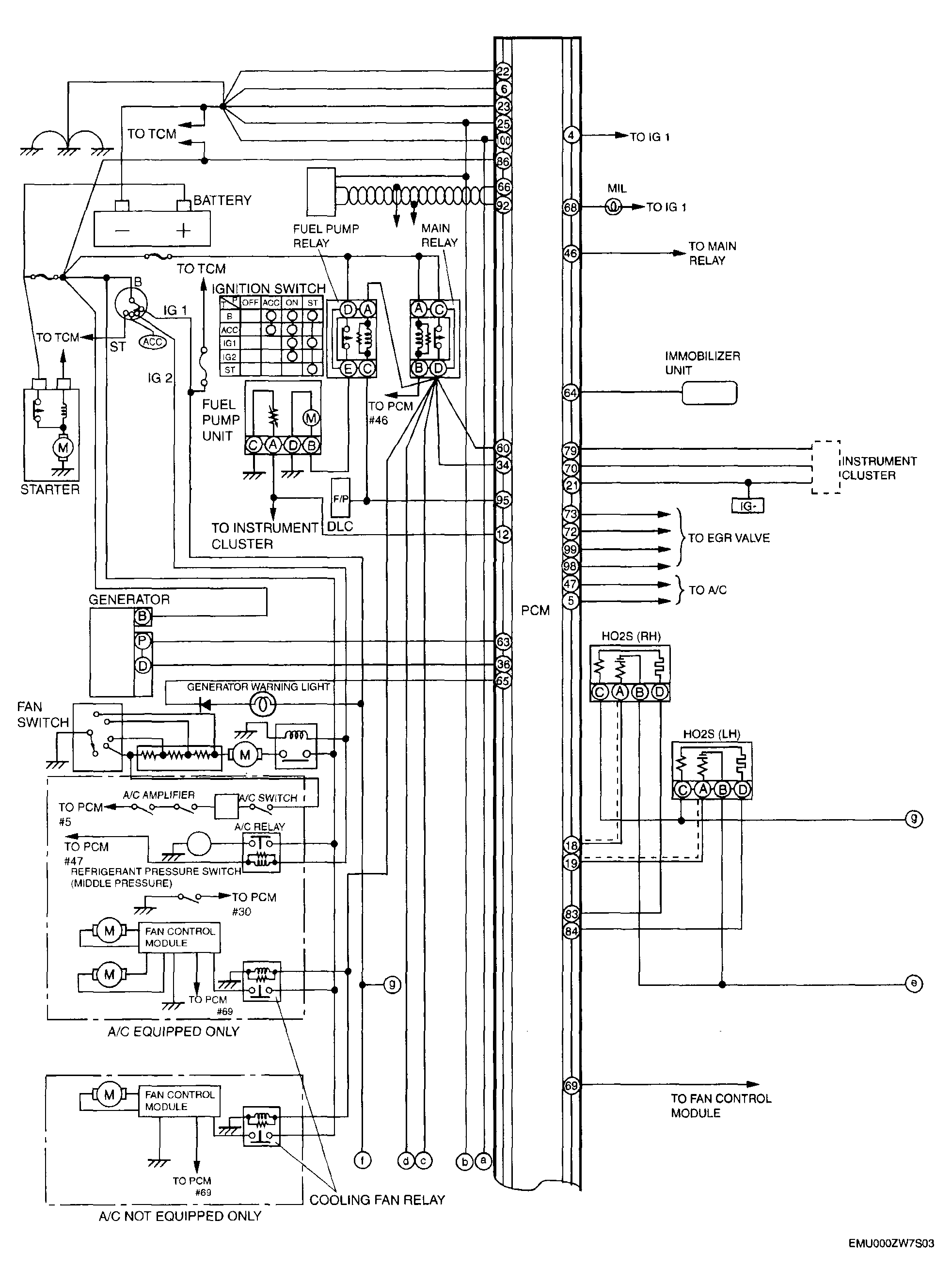

Fig 1: Control System Wiring Diagram - Without Rear HO2S Model (With Immobilizer System) (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

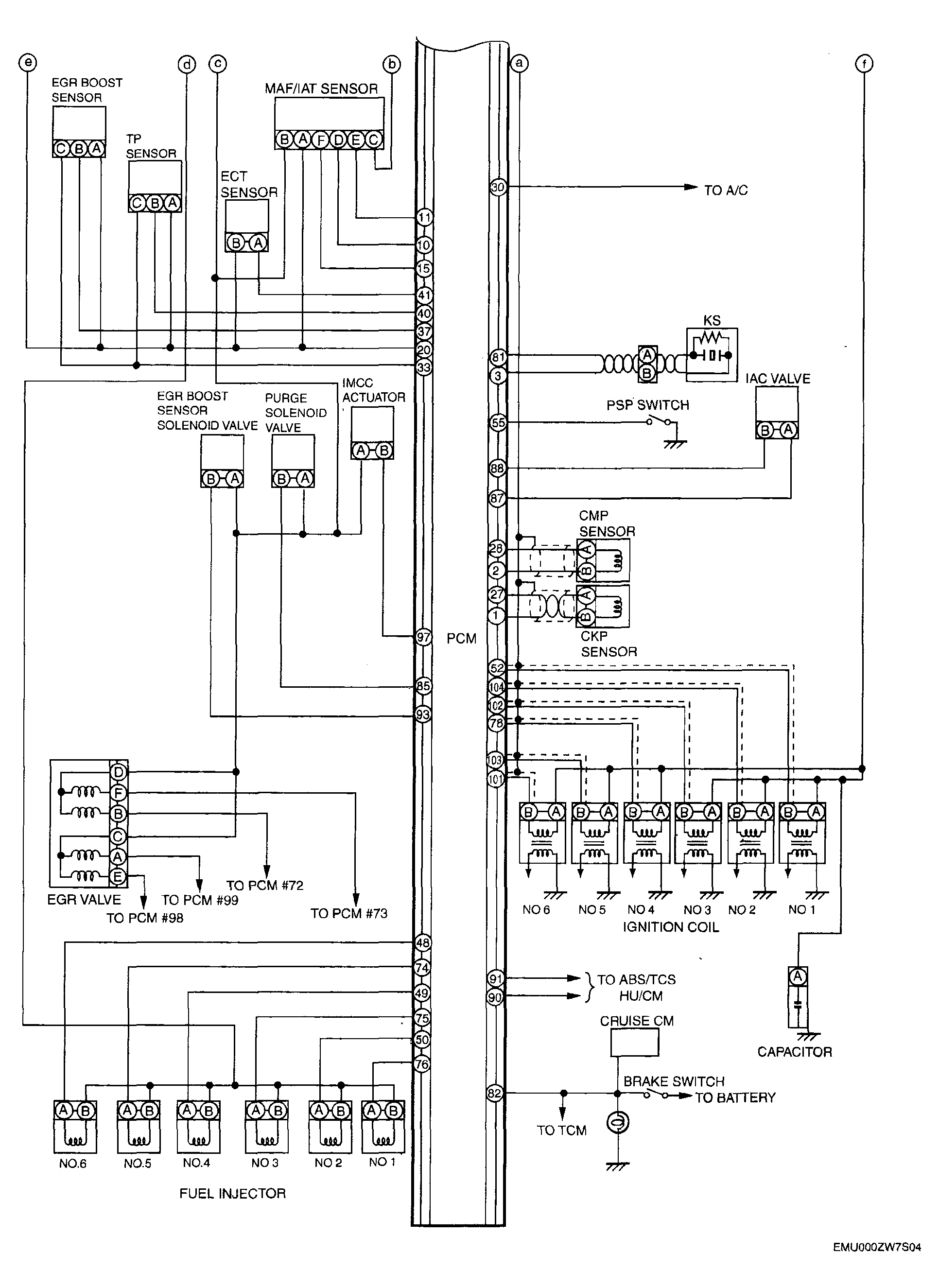

Fig 2: Control System Wiring Diagram - Without Rear HO2S Model (With Immobilizer System) (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
