Cooling fan control signal

PCM terminal: 69 (+)-100 (-)
Oscilloscope setting: 1 V/DIV (Y), 10ms/DIV (X), DC range
Vehicle condition: idle after warm up

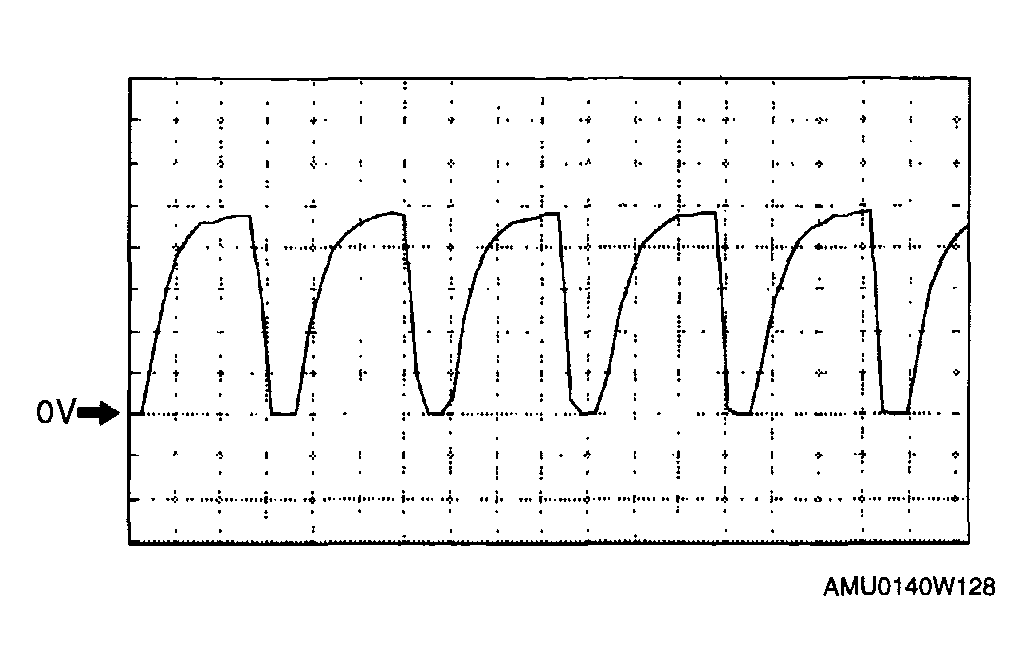

Fig 1: Identifying Cooling Fan Control Signal Waveform

G04328317

Courtesy of MAZDA MOTORS CORP.
