Inspection Using An Oscilloscope (Reference) CKP: Notes

PCM terminal: 27 (+)-1 (-)
Oscilloscope setting: 4V/DIV (Y), 2.5ms/DIV (X), AC range
Vehicle condition: idle after warm up

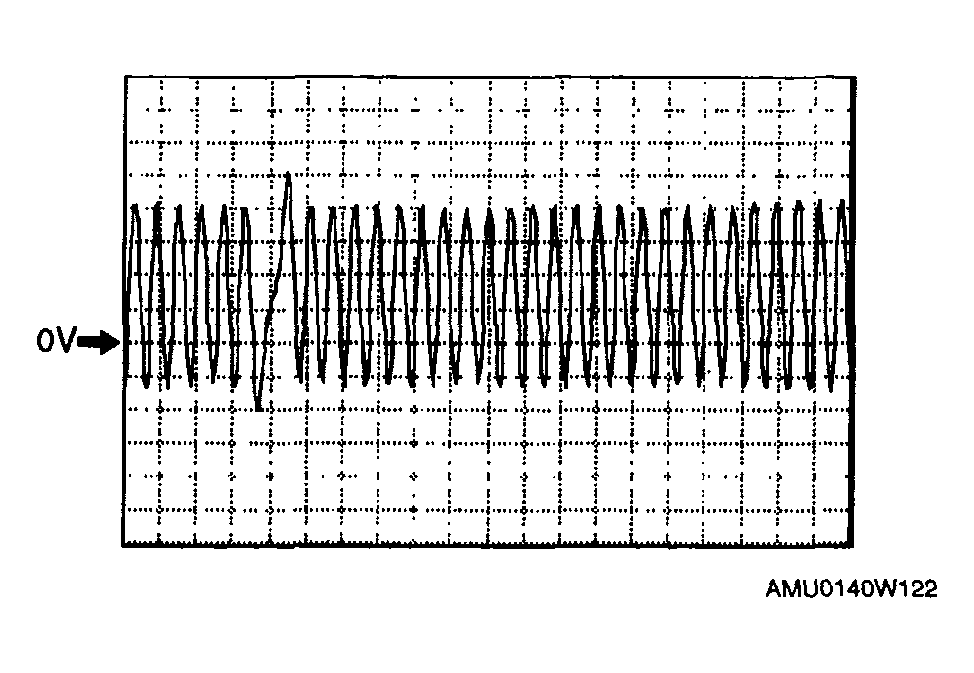

Fig 1: Identifying CKP Signal Waveform

G04328308

Courtesy of MAZDA MOTORS CORP.
