Water temperature gauge control signal

• PCM terminal: 70 (+)-100 (-)
• Oscilloscope setting: 1V/DIV (Y), 40ms/DIV (X), DC range
• Vehicle condition: idle after warm up

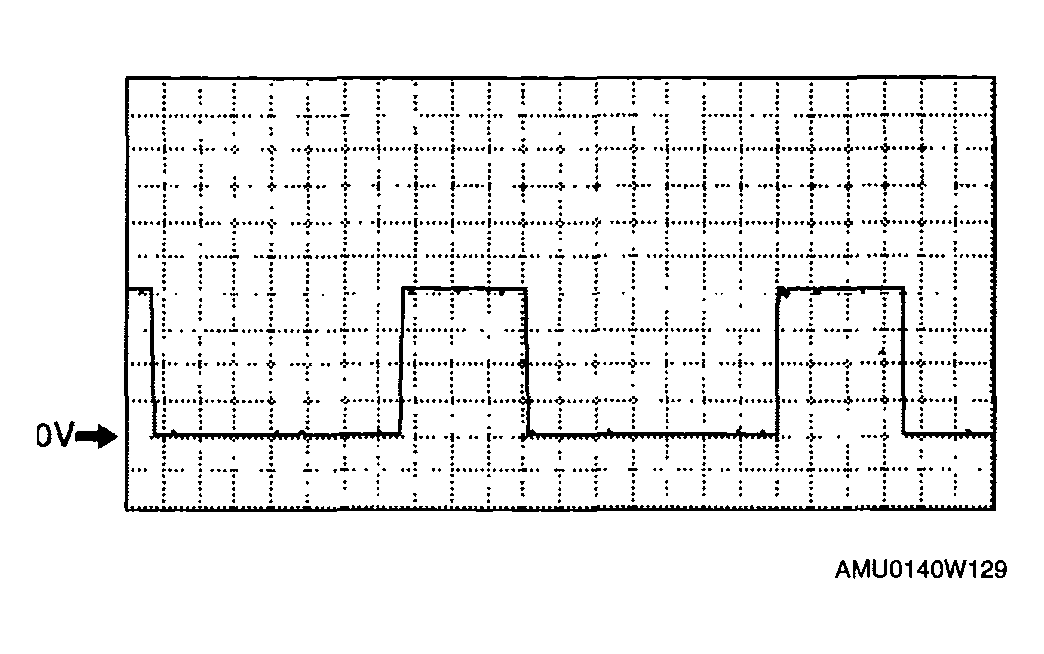

Fig 1: Identifying Water Temperature Gauge Control Signal Waveform

Courtesy of MAZDA MOTORS CORP.
