Pcm Removal/Installation: Notes

1. Disconnect the negative battery cable.
2. Remove the TCM.

   (See TCM REMOVAL/INSTALLATION )

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

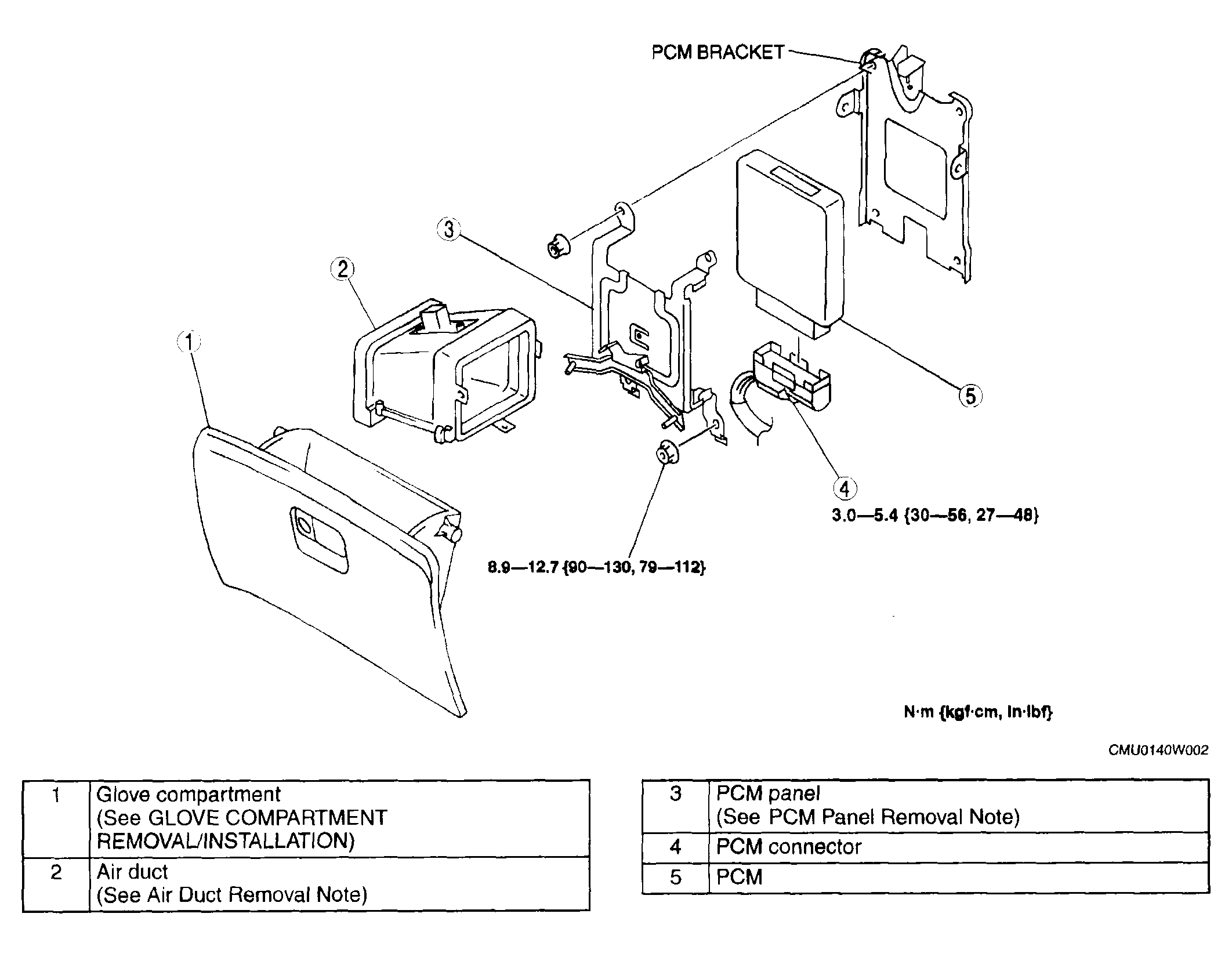

Fig 1: Removing/Installing PCM

Courtesy of MAZDA MOTORS CORP.
