Joint Hose Installation Note

1. Fit the joint hose onto the respective fittings, and install clamps as shown.

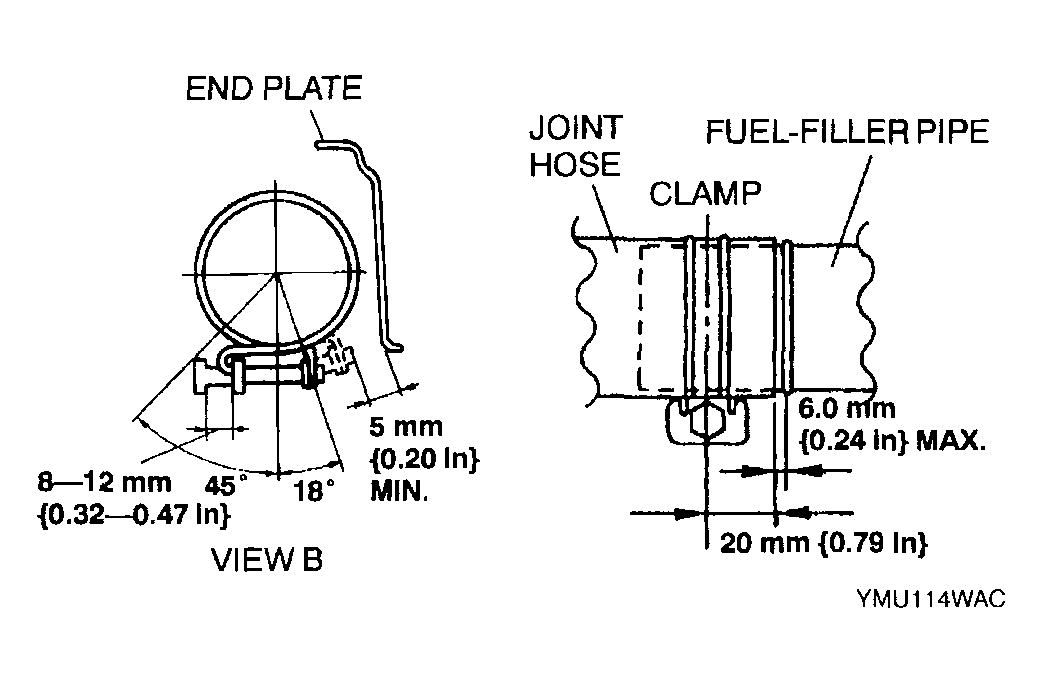

Fig 1: Installing Joint Hose Clamp (1 Of 2)

Fig 2: Installing Joint Hose Clamp (2 Of 2)
