Control System Device And Control Relationship Chart

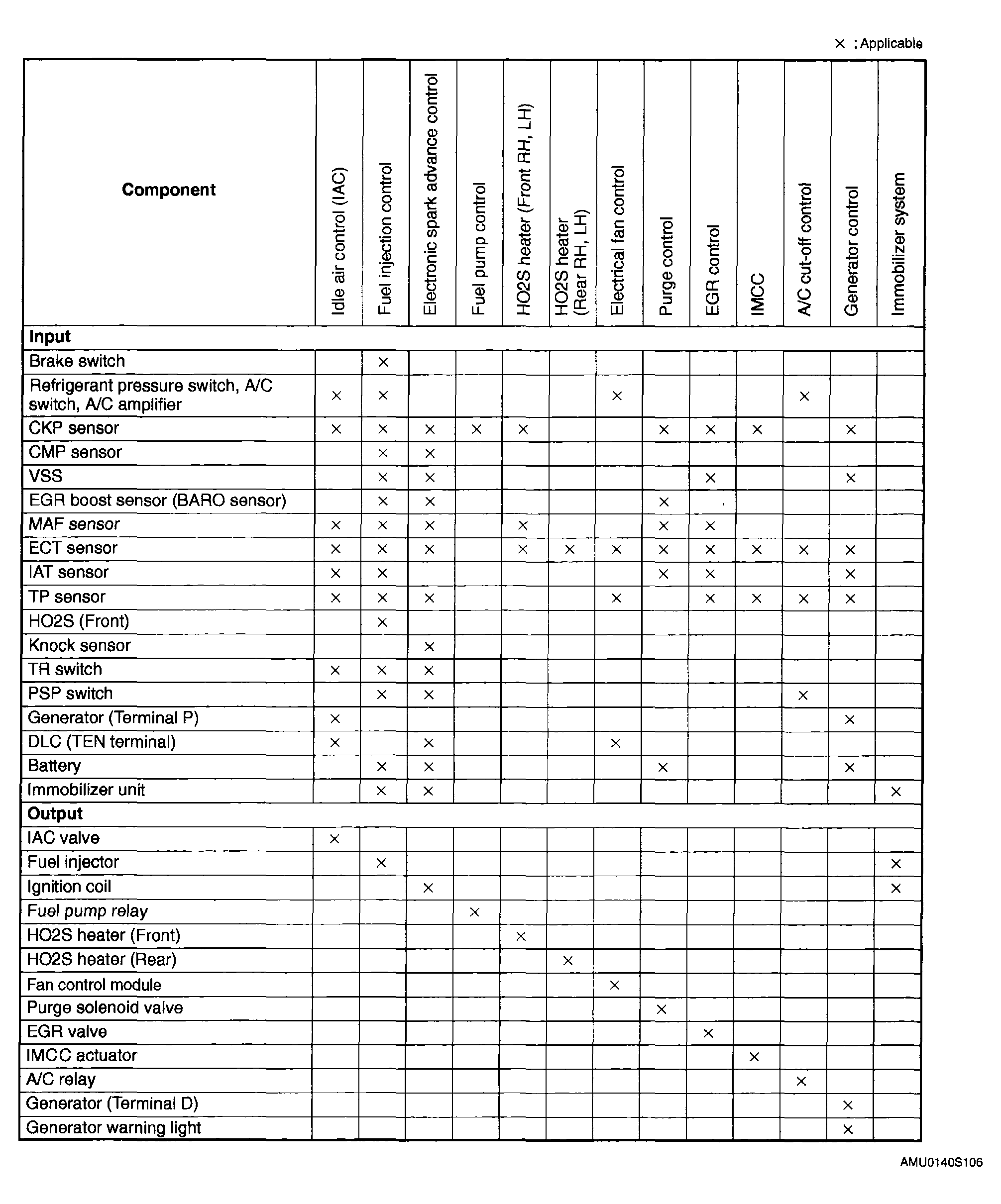

Fig 1: Control System Device And Control Relationship Chart [AJ]
G04329875Courtesy of MAZDA MOTORS CORP.
