Symptom Quick Diagnosis Chart

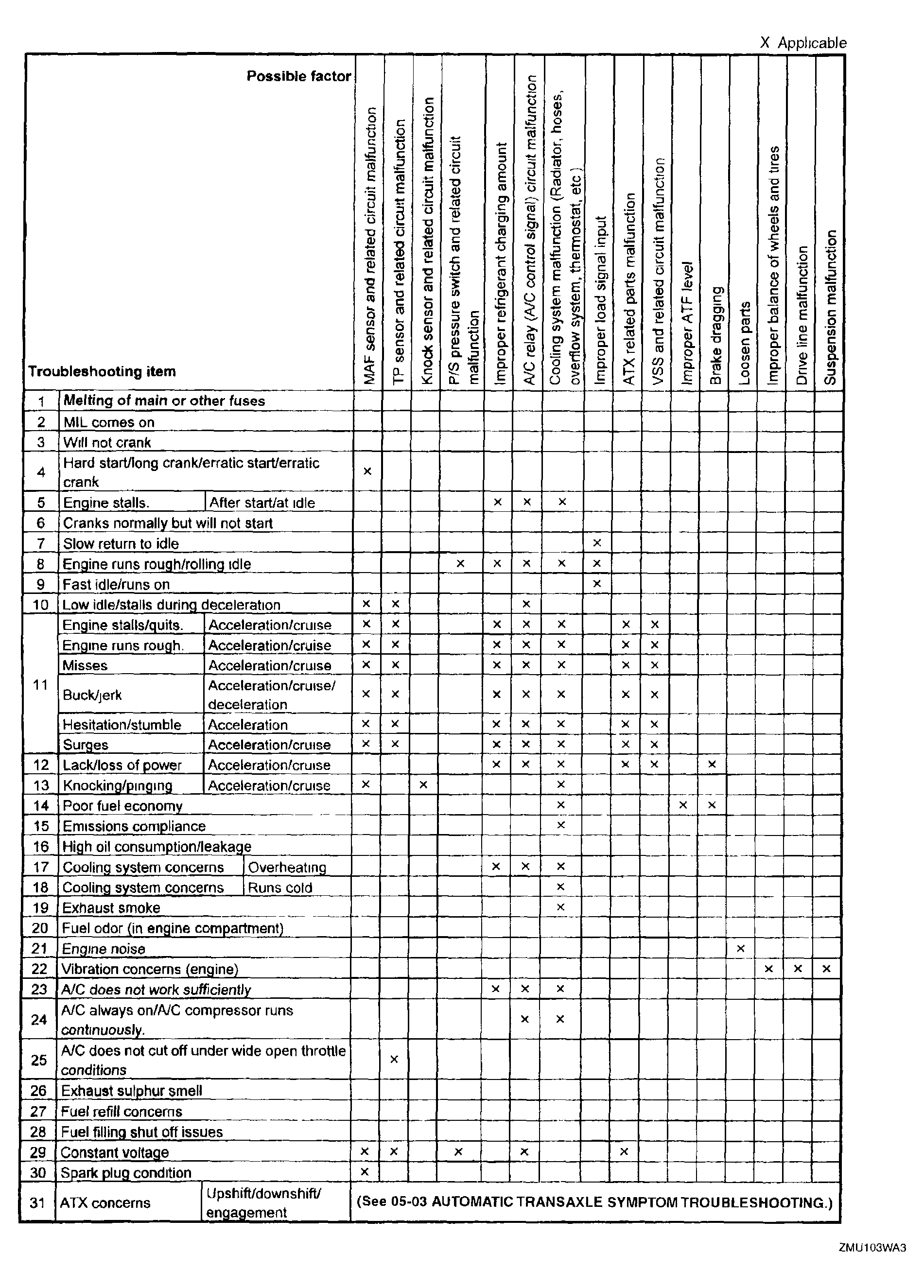

Fig 1: Quick Diagnostic Chart [AJ] (1 of 4)

Courtesy of MAZDA MOTORS CORP.

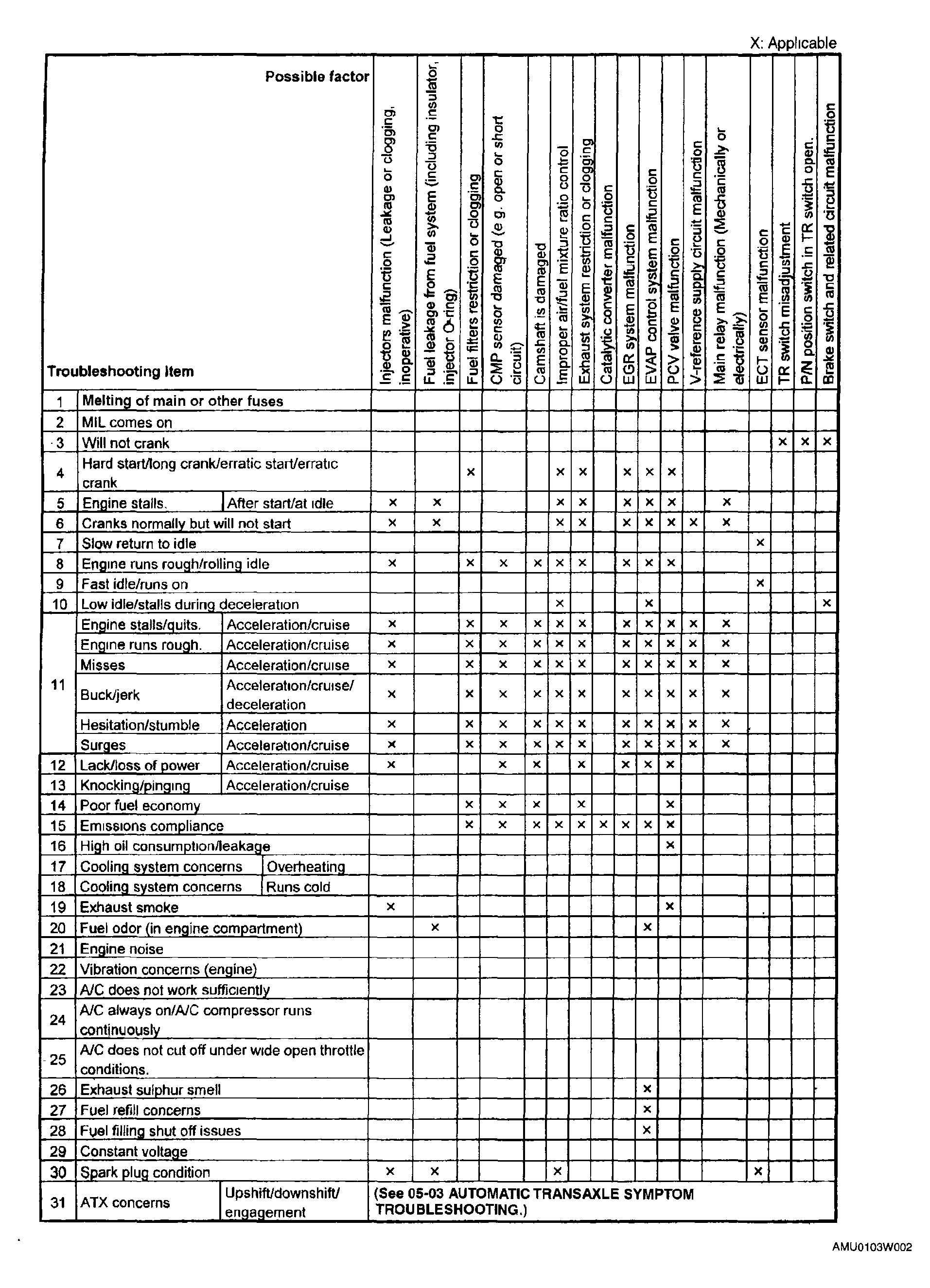

Fig 2: Quick Diagnostic Chart [AJ] (2 of 4)

Courtesy of MAZDA MOTORS CORP.

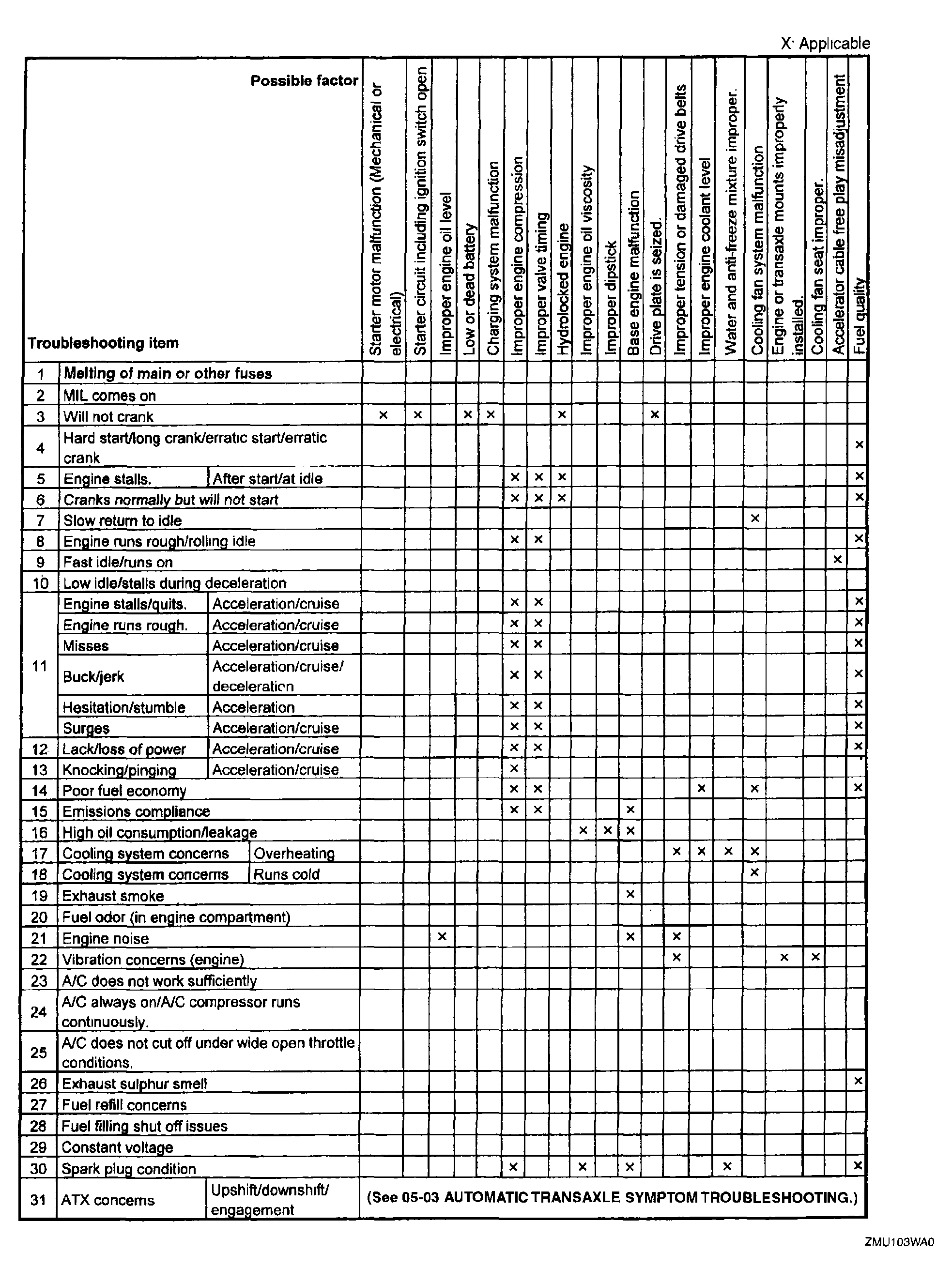

Fig 3: Quick Diagnostic Chart [AJ] (3 of 4)

Courtesy of MAZDA MOTORS CORP.

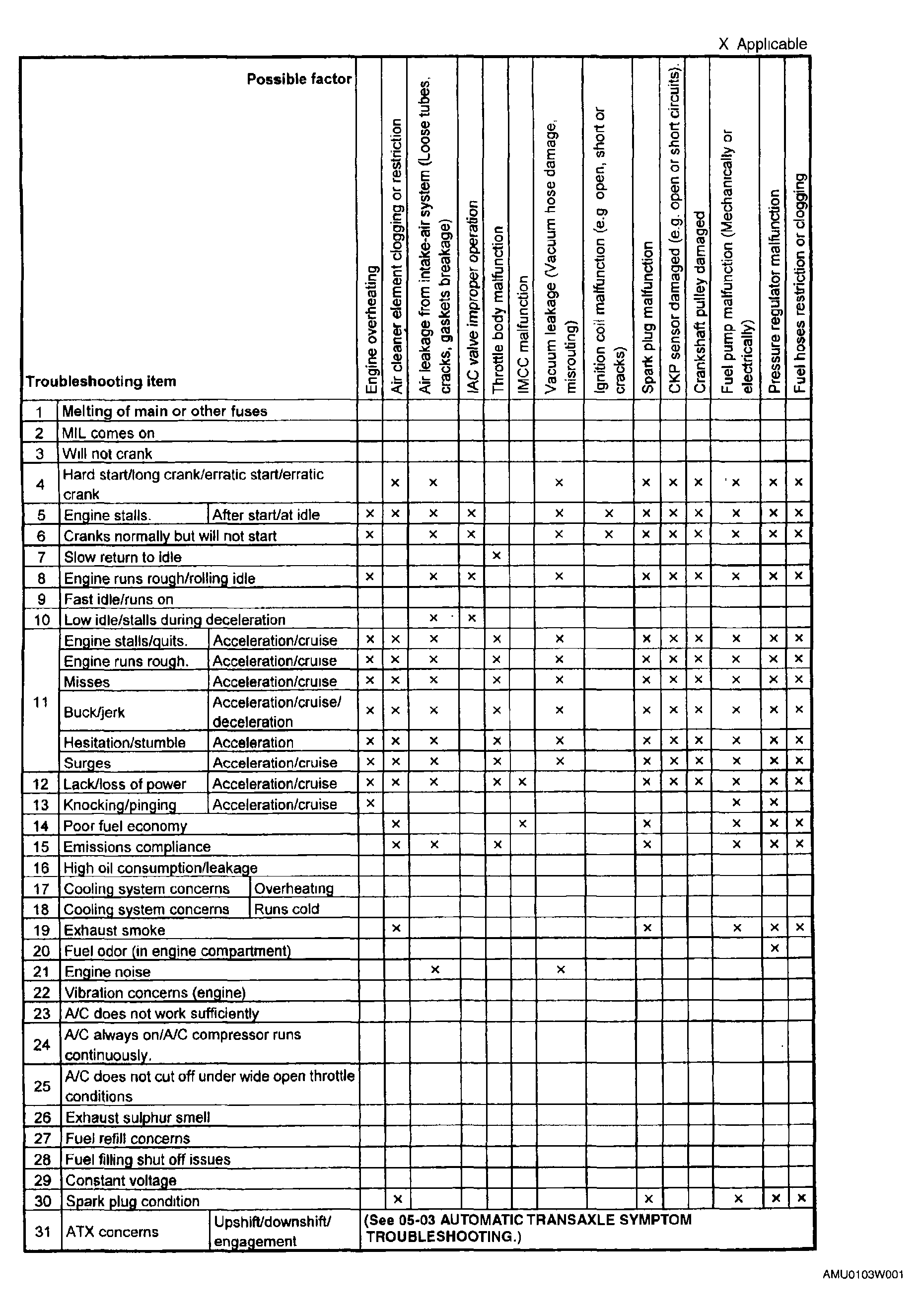

Fig 4: Quick Diagnostic Chart [AJ] (4 of 4)

Courtesy of MAZDA MOTORS CORP.
