Symptom Troubleshooting [Engine Control System AJ)
›
Symptom Troubleshooting Wiring Diagram
›
Without Rear HO2S Model
›
Without immobilizer system
Without immobilizer system

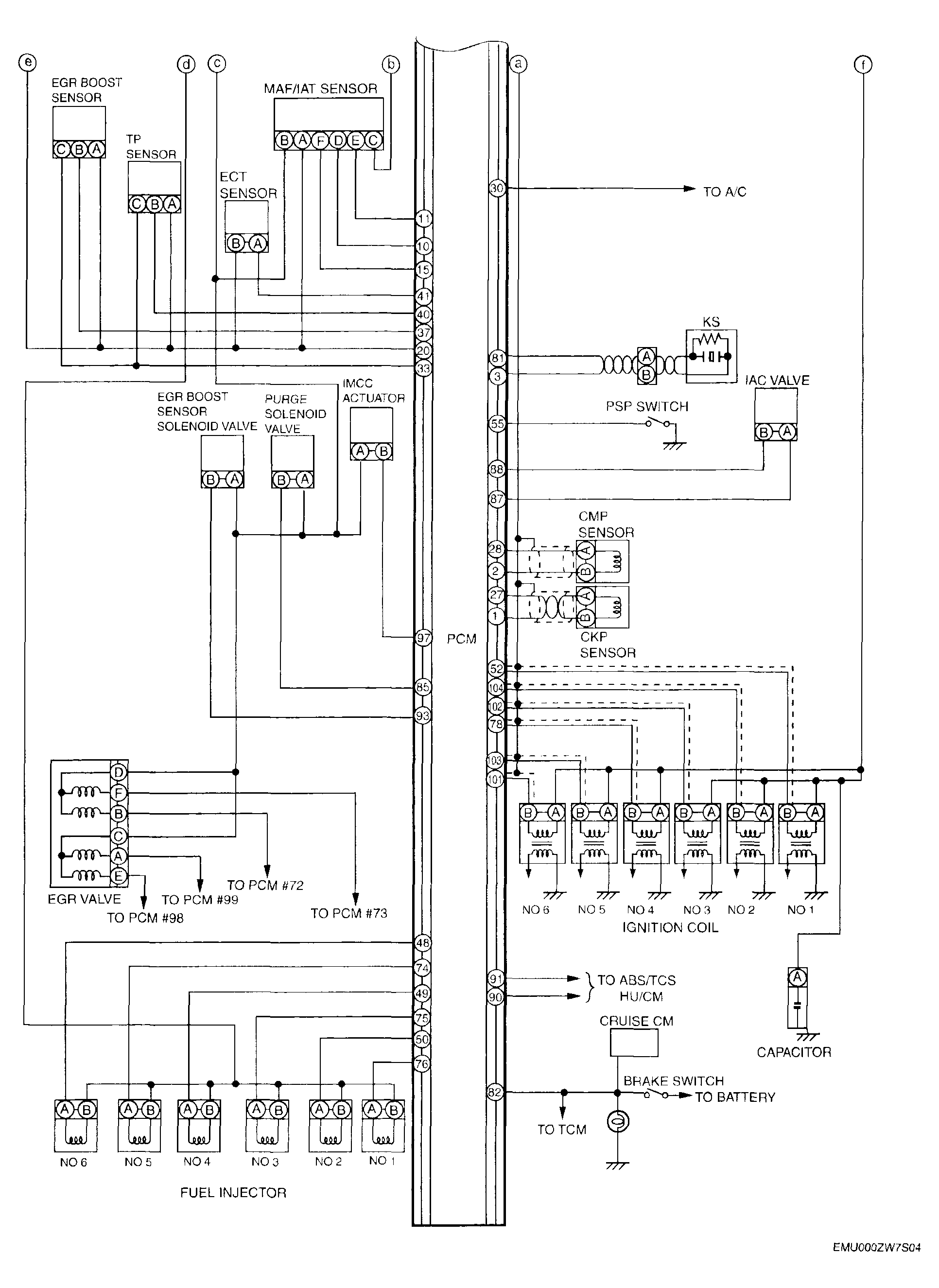

Fig 1: Symptom Troubleshooting Wiring Diagram [AJ] - Without Rear HO2S Model - Without Immobilizer System (1 of 2)
Courtesy of MAZDA MOTORS CORP.

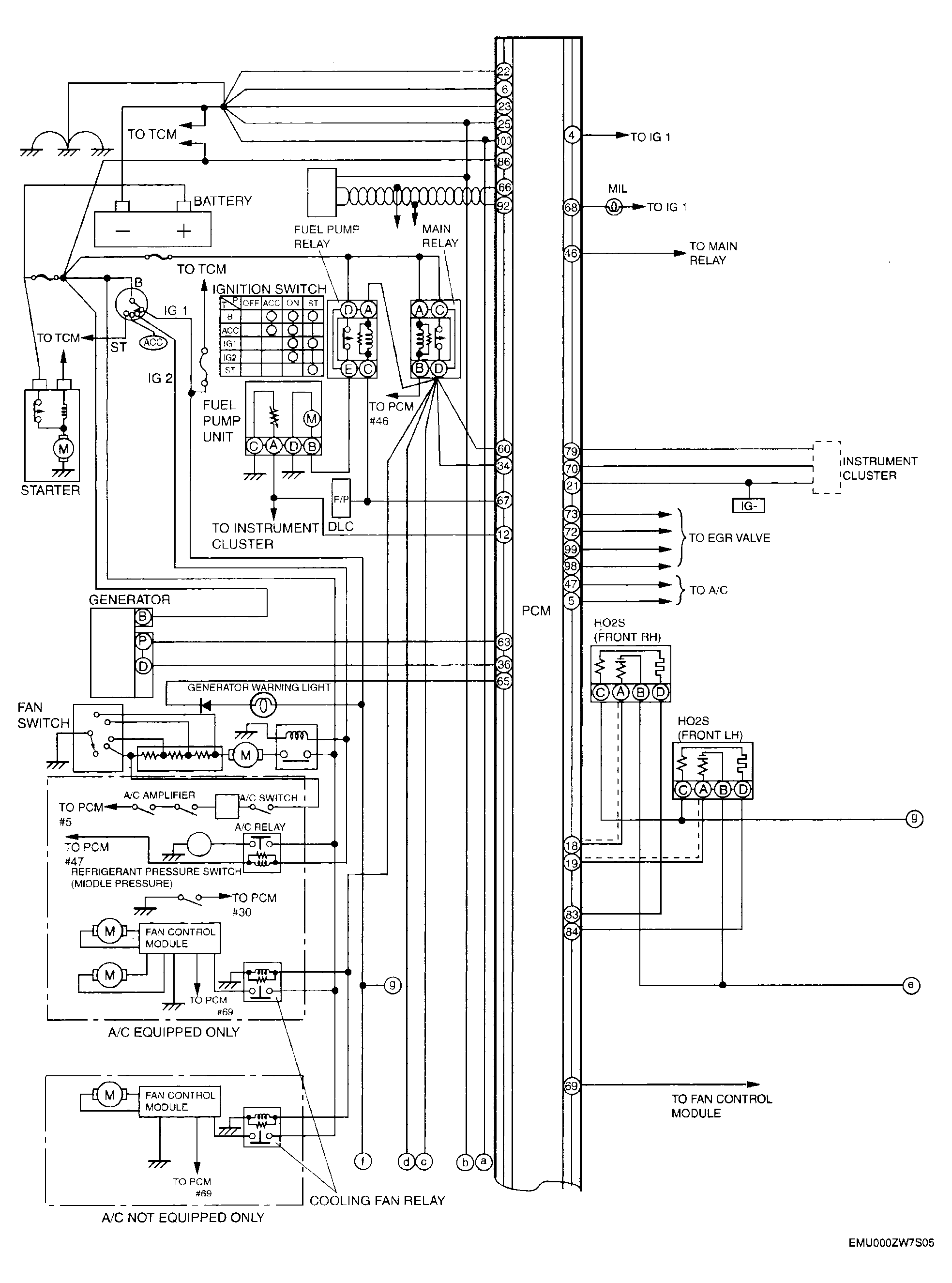

Fig 2: Symptom Troubleshooting Wiring Diagram [AJ] - Without Rear HO2S Model - Without Immobilizer System (1 of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
