Power Brake Unit Function Inspection (Inspection using gauges): Notes
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

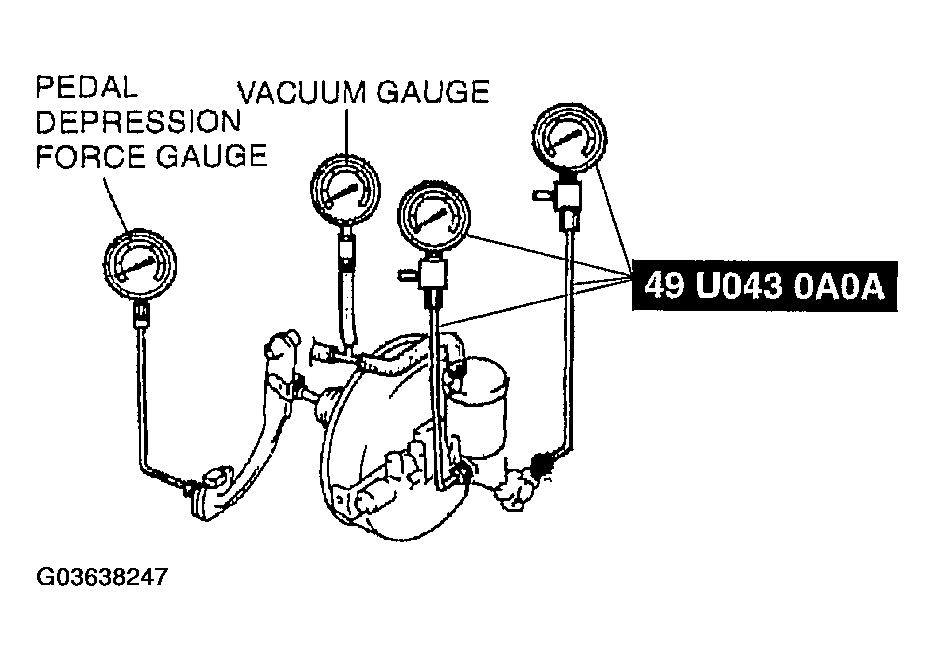

- Connect the SST gauges, a vacuum gauge, and a pedal depression gauge as shown in Fig 1. Bleed the air from the SST gauges before performing the following tests.
