Electrical System: Connectors: Inspection

• When a tester is used to inspect for continuity or measuring voltage, insert the tester probe from the wiring harness side.

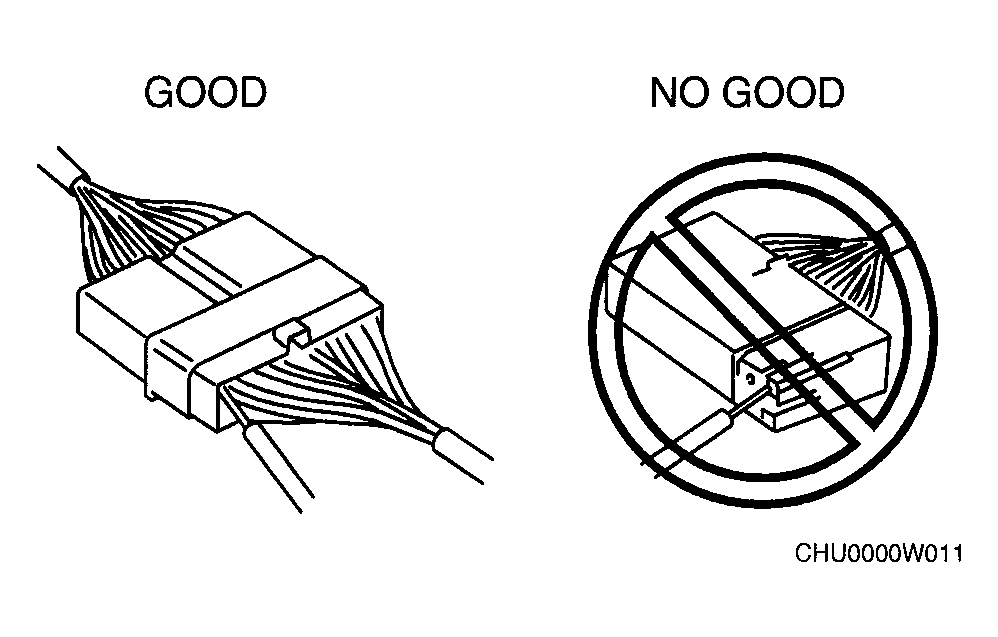

Fig 1: View Of Proper And Improper Terminal Probe Methods

Courtesy of MAZDA MOTORS CORP.

• Inspect the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.

CAUTION:

• To prevent damage to the terminal, wrap a thin wire around the lead before inserting into terminal.

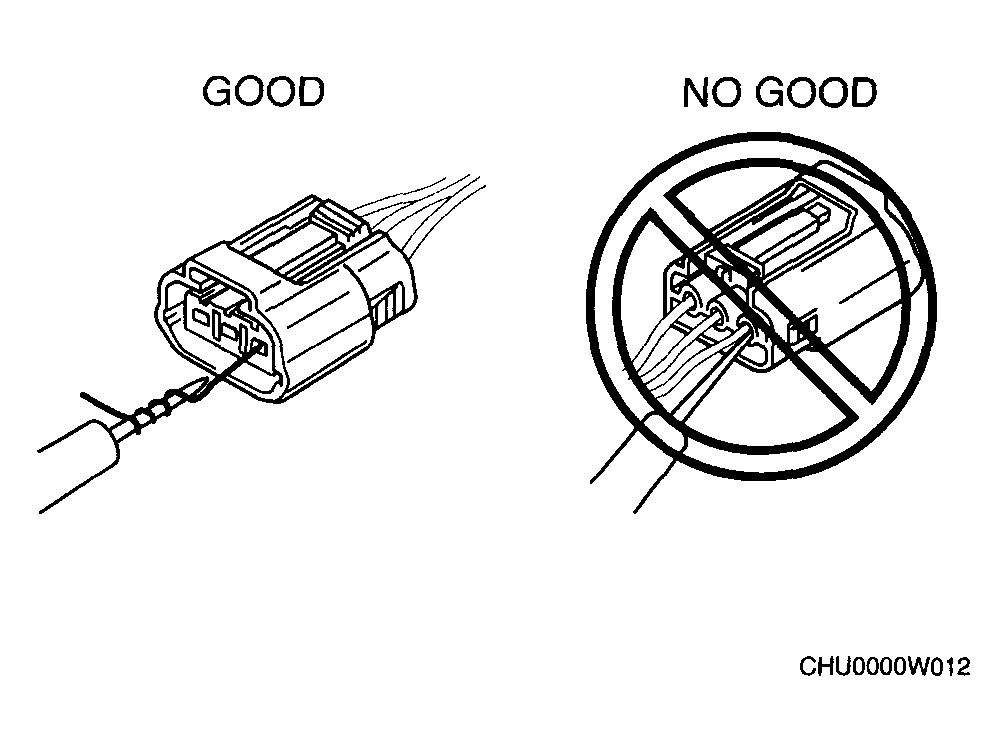

Fig 2: View Of Proper And Improper Terminal Probe Methods

Courtesy of MAZDA MOTORS CORP.
