Using the DTC troubleshooting flow

• DTC troubleshooting flow shows diagnostic procedures, inspection methods, and proper action to take for each DTC.

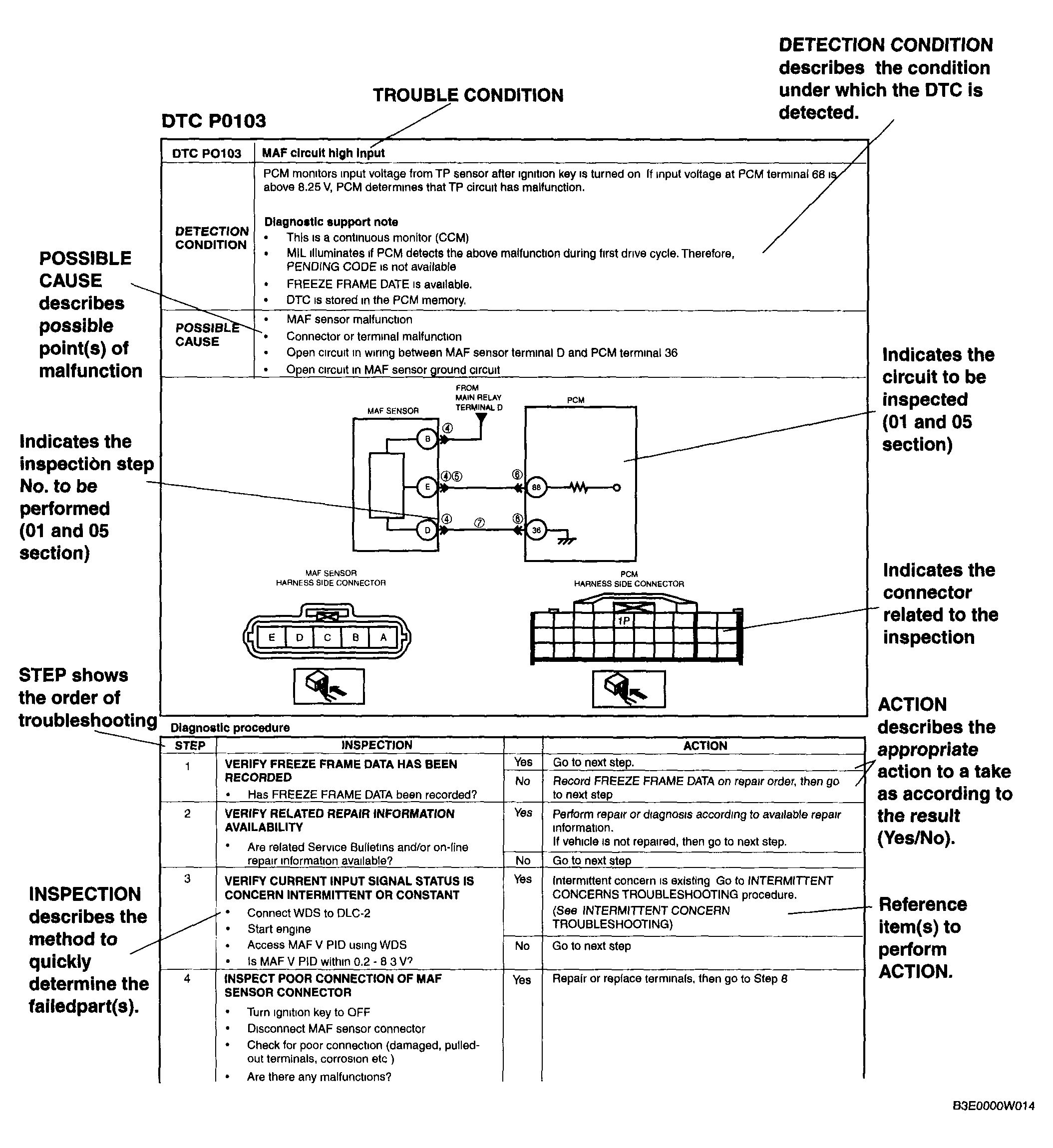

Fig 1: DTC Troubleshooting Possible Cause & Diagnostic Procedure Points

Courtesy of MAZDA MOTORS CORP.
