Using the symptom troubleshooting

• Symptom troubleshooting shows diagnostic procedures, inspection methods, and proper action to take for each trouble symptom.

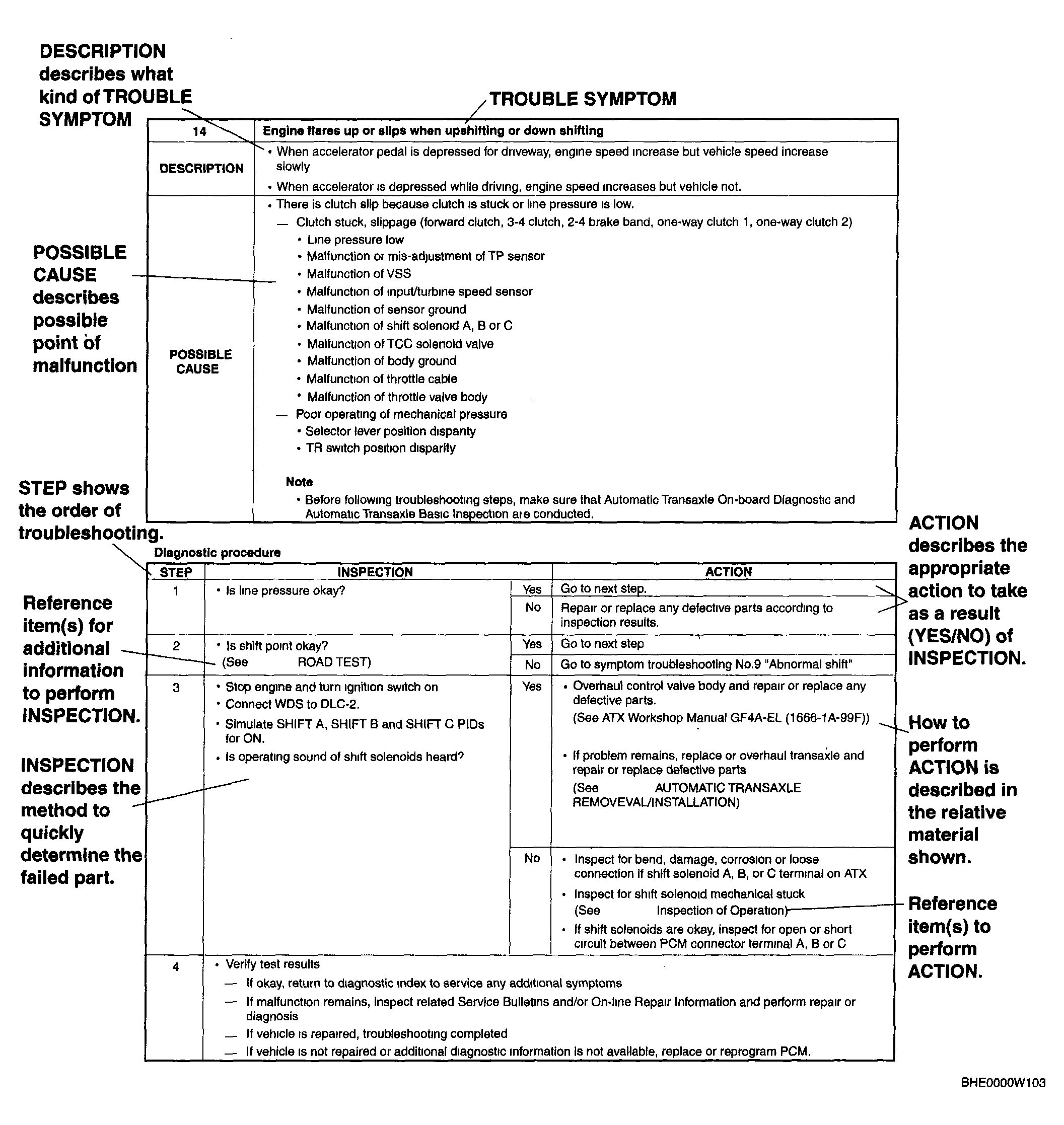

Fig 1: Symptom Troubleshooting Actions Description

Courtesy of MAZDA MOTORS CORP.
